Shift Solenoid, A/T




Component Connector End Views

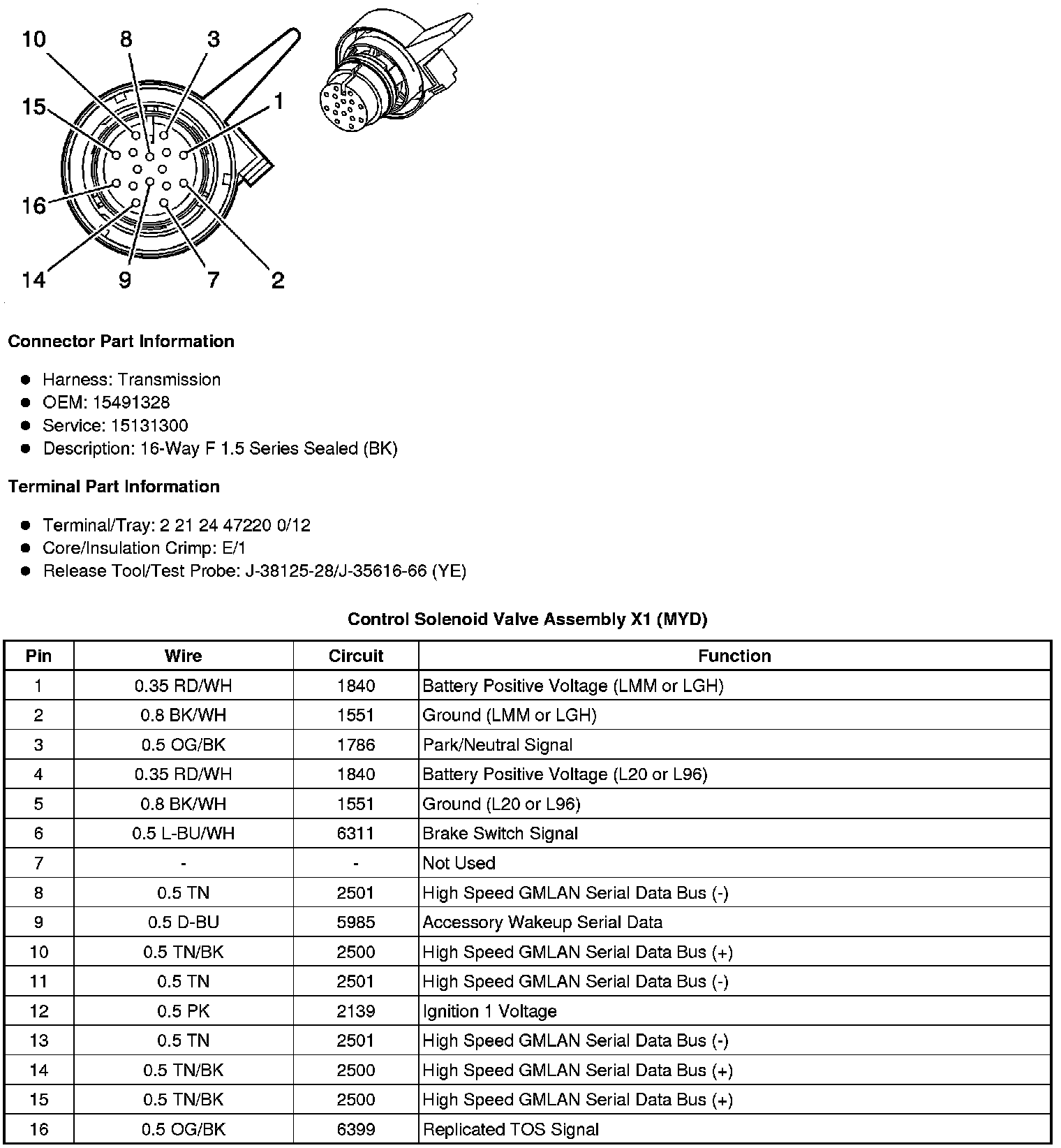

Control Solenoid Valve Assembly X1 (MYD)

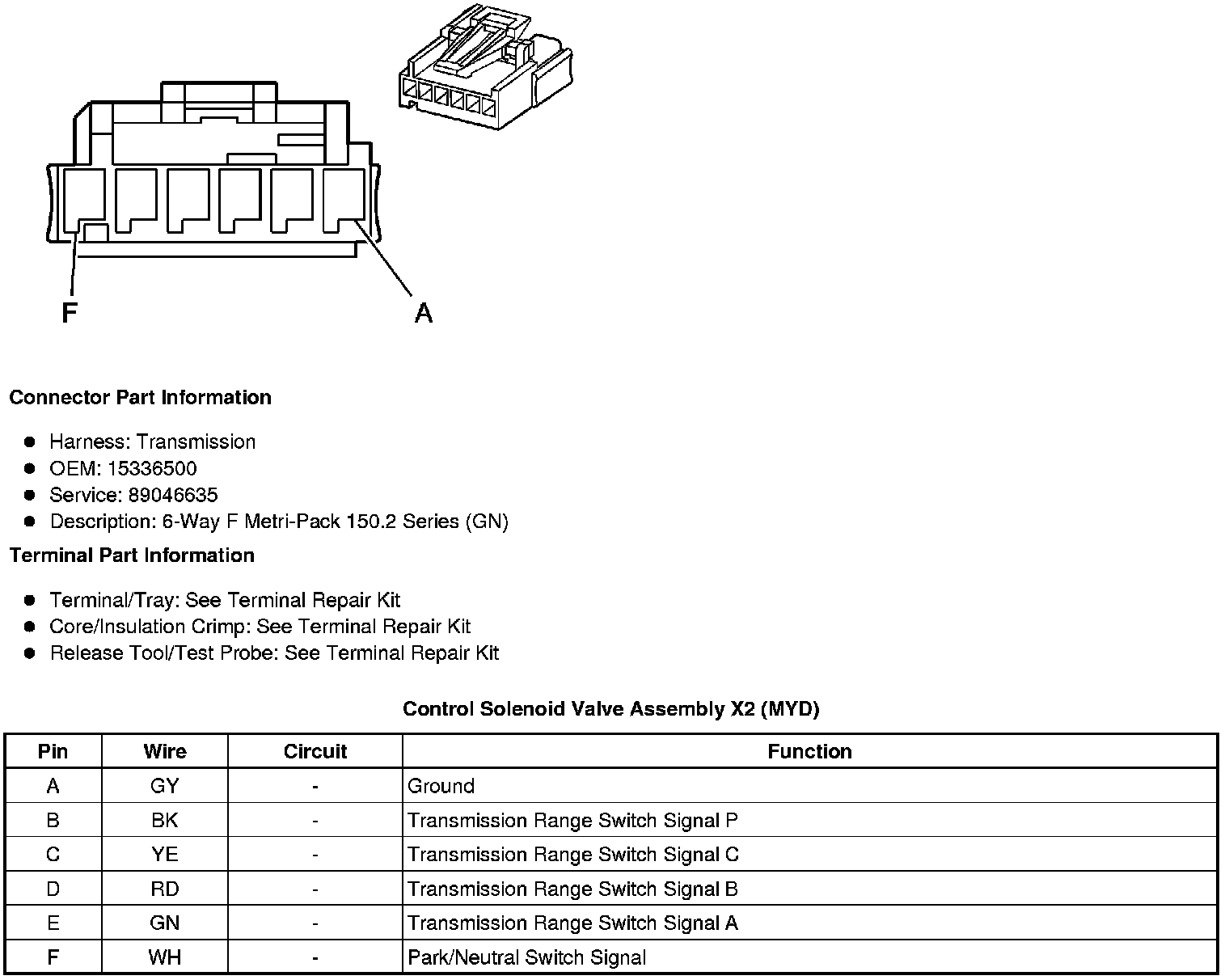

Control Solenoid Valve Assembly X2 (MYD)





Control Solenoid Valve Assembly X3 (MYD)
