El - Ex

Component Connector End Views

Electronic Compass Module (U80)

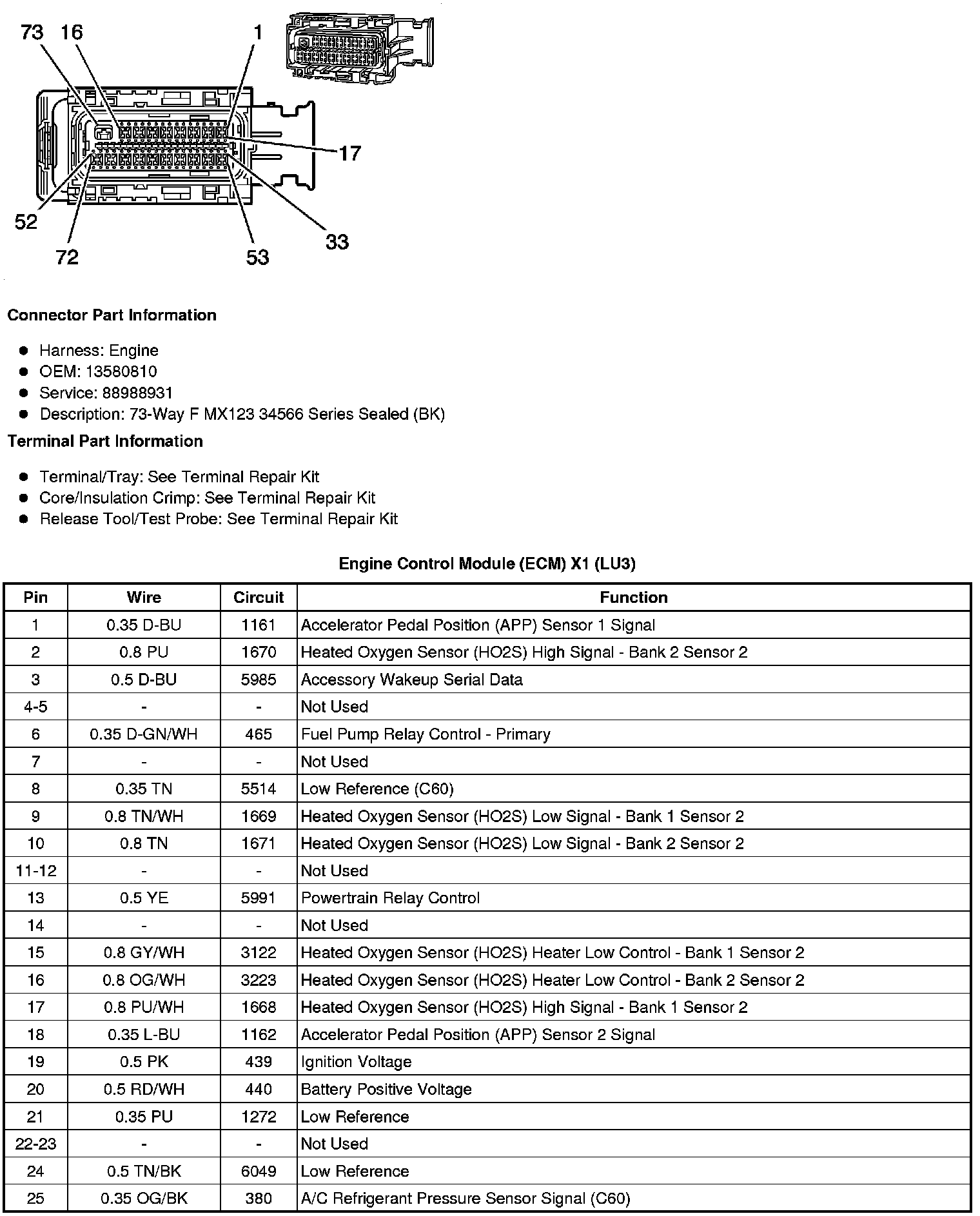

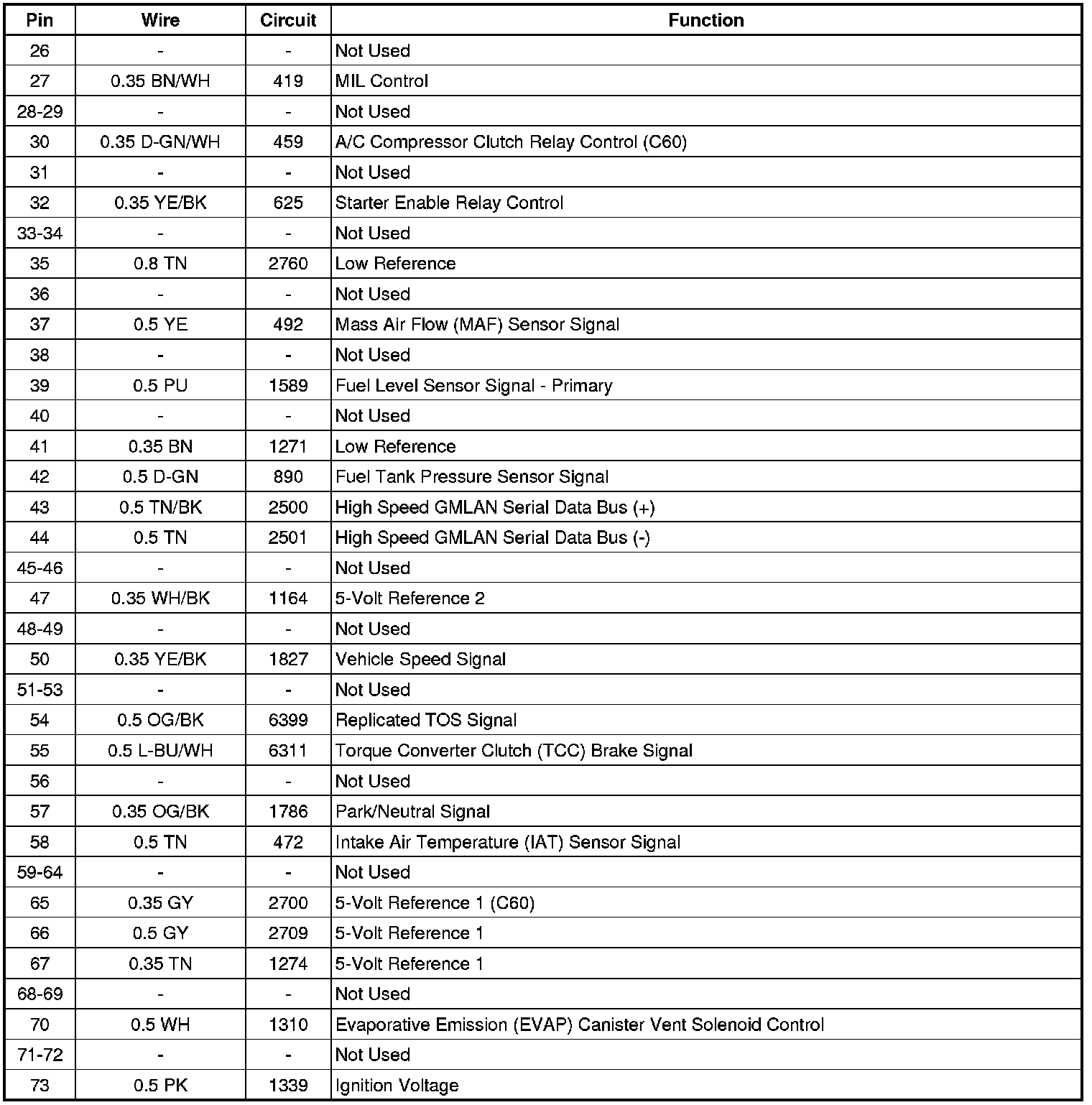

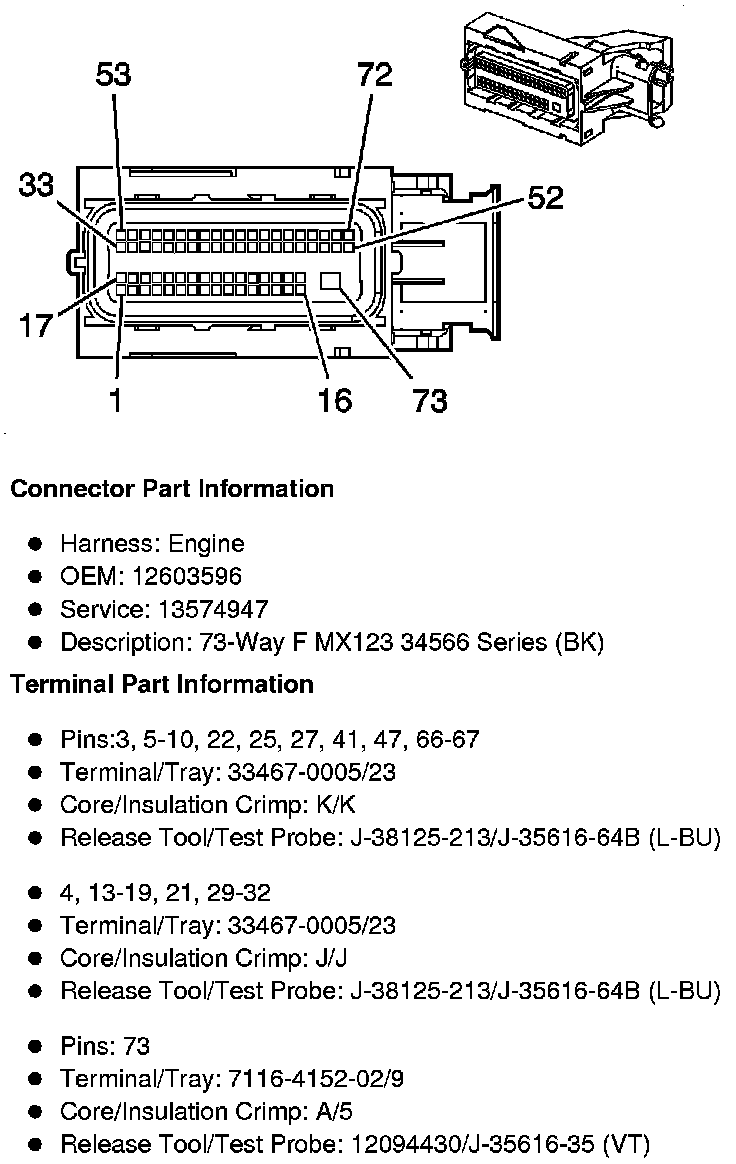

Engine Control Module (ECM) X1 (LU3)

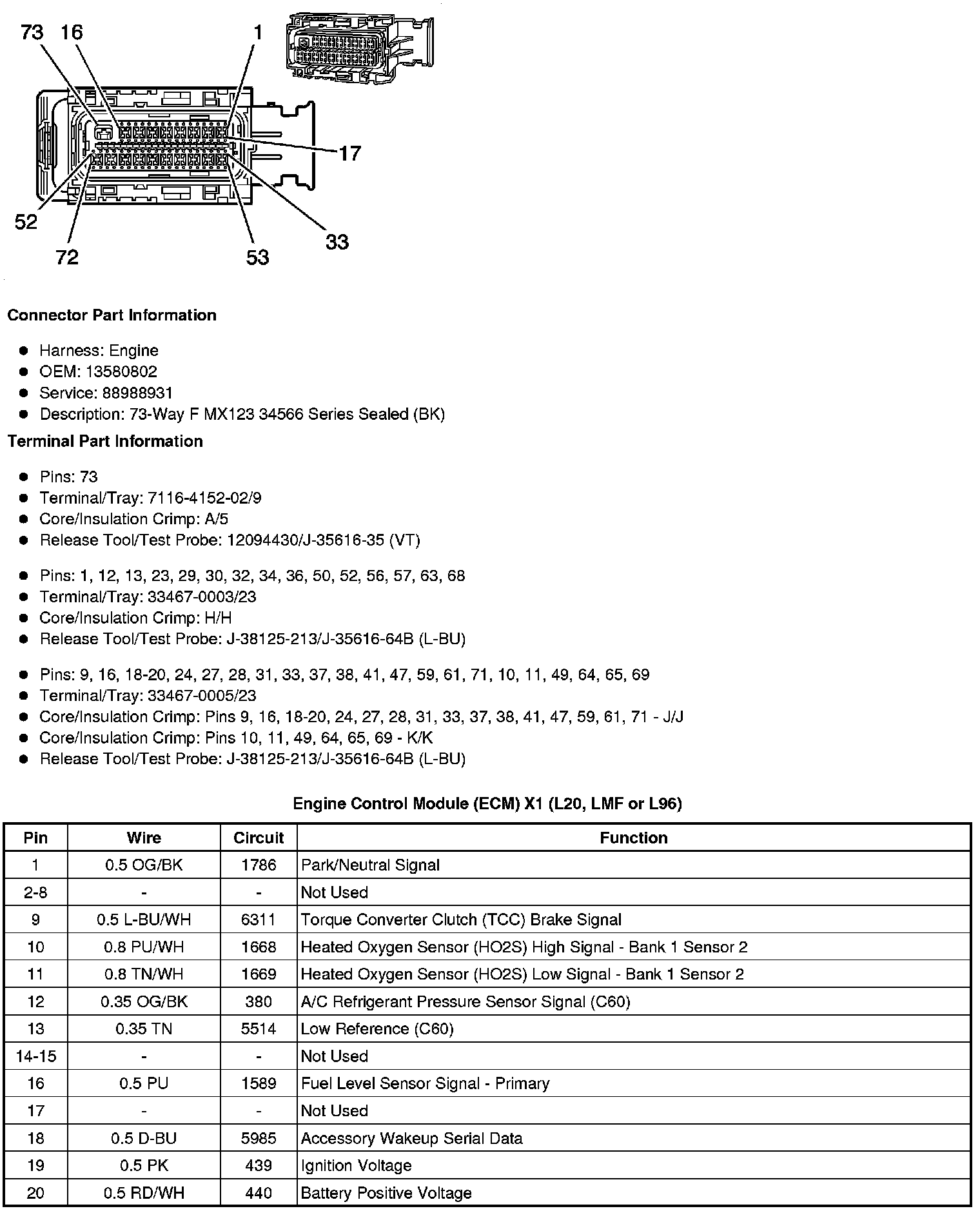

Engine Control Module (ECM) X1 (L20, LMF or L96)

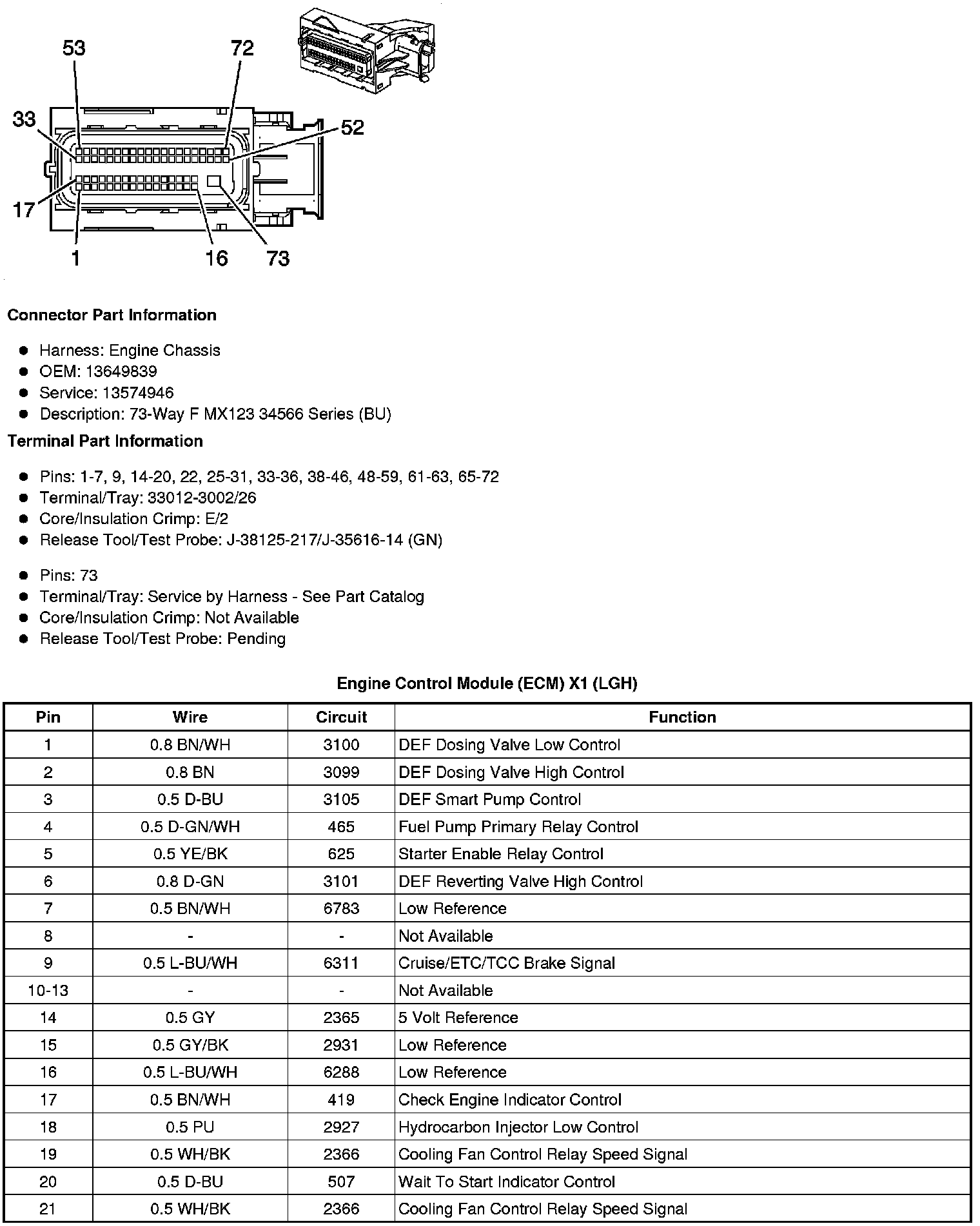

Engine Control Module (ECM) X1 (LGH)

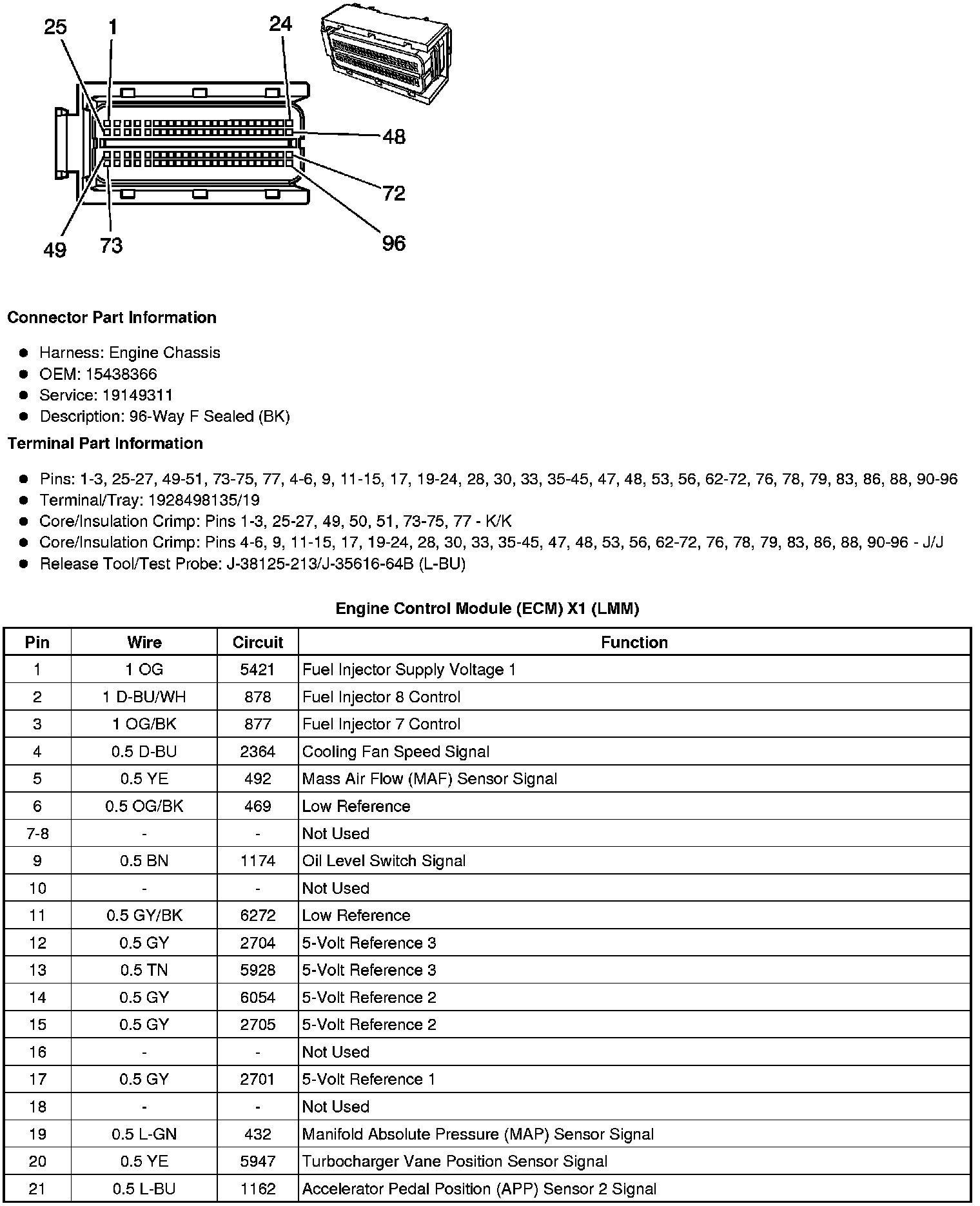

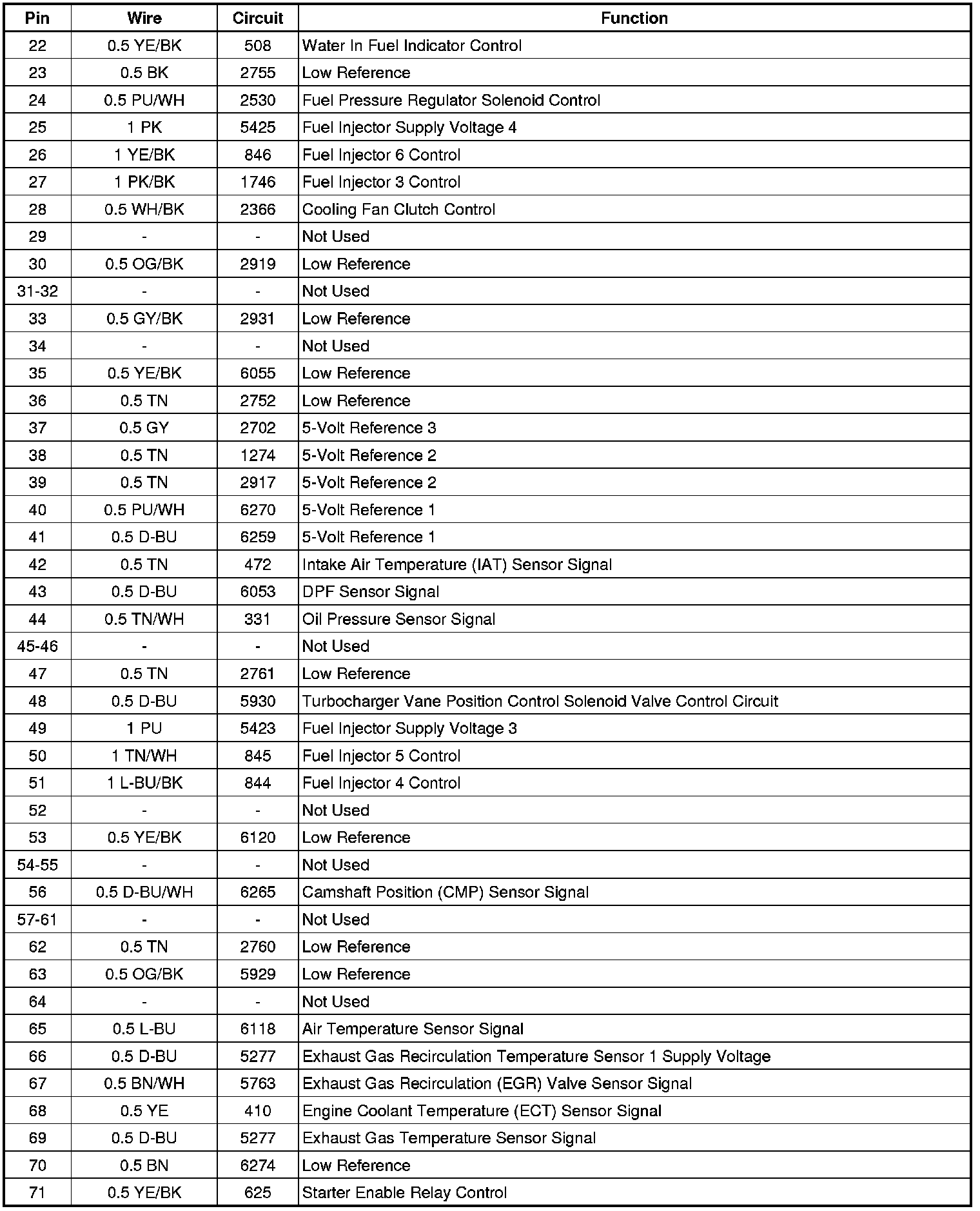

Engine Control Module (ECM) X1 (LMM)

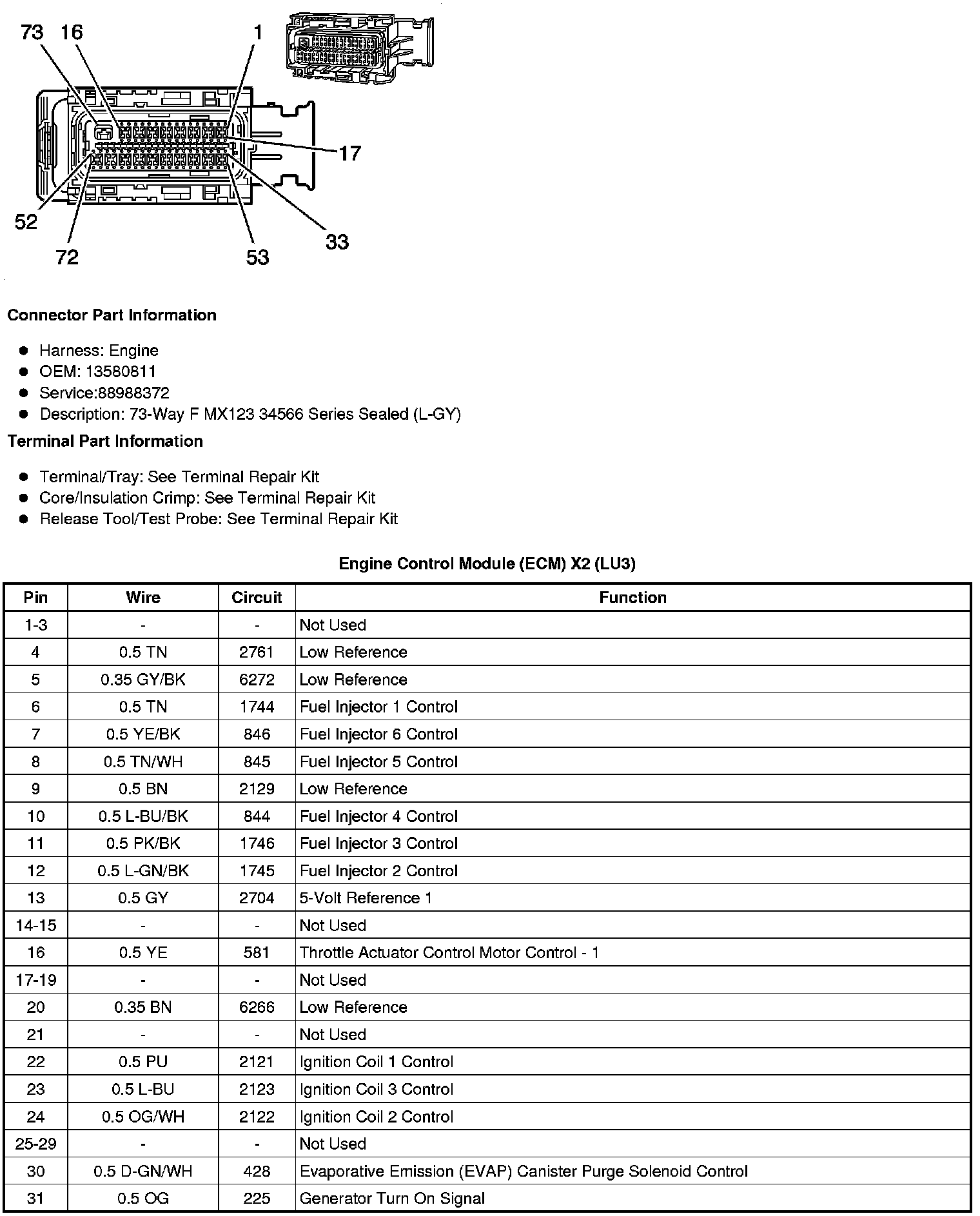

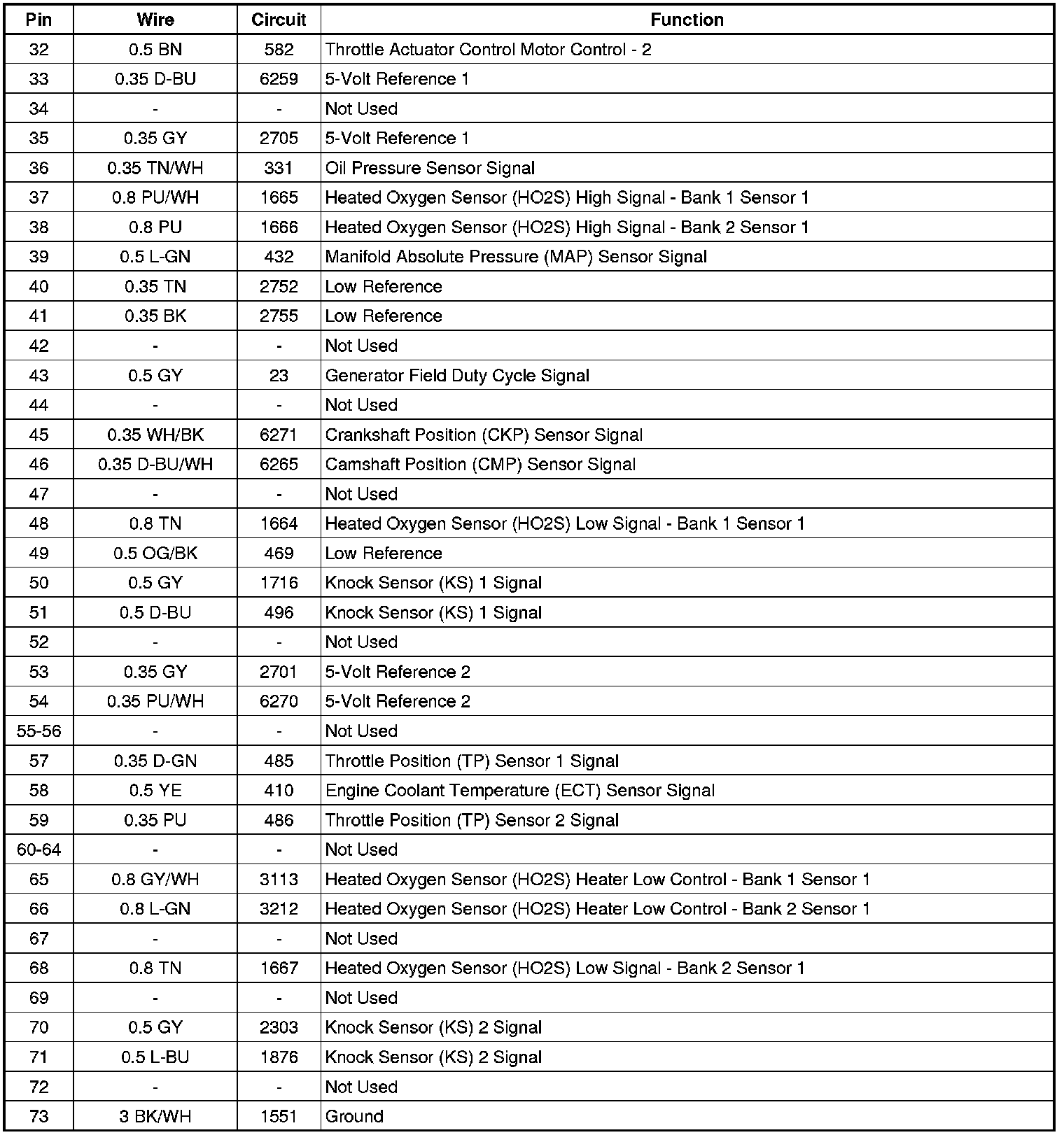

Engine Control Module (ECM) X2 (LU3)

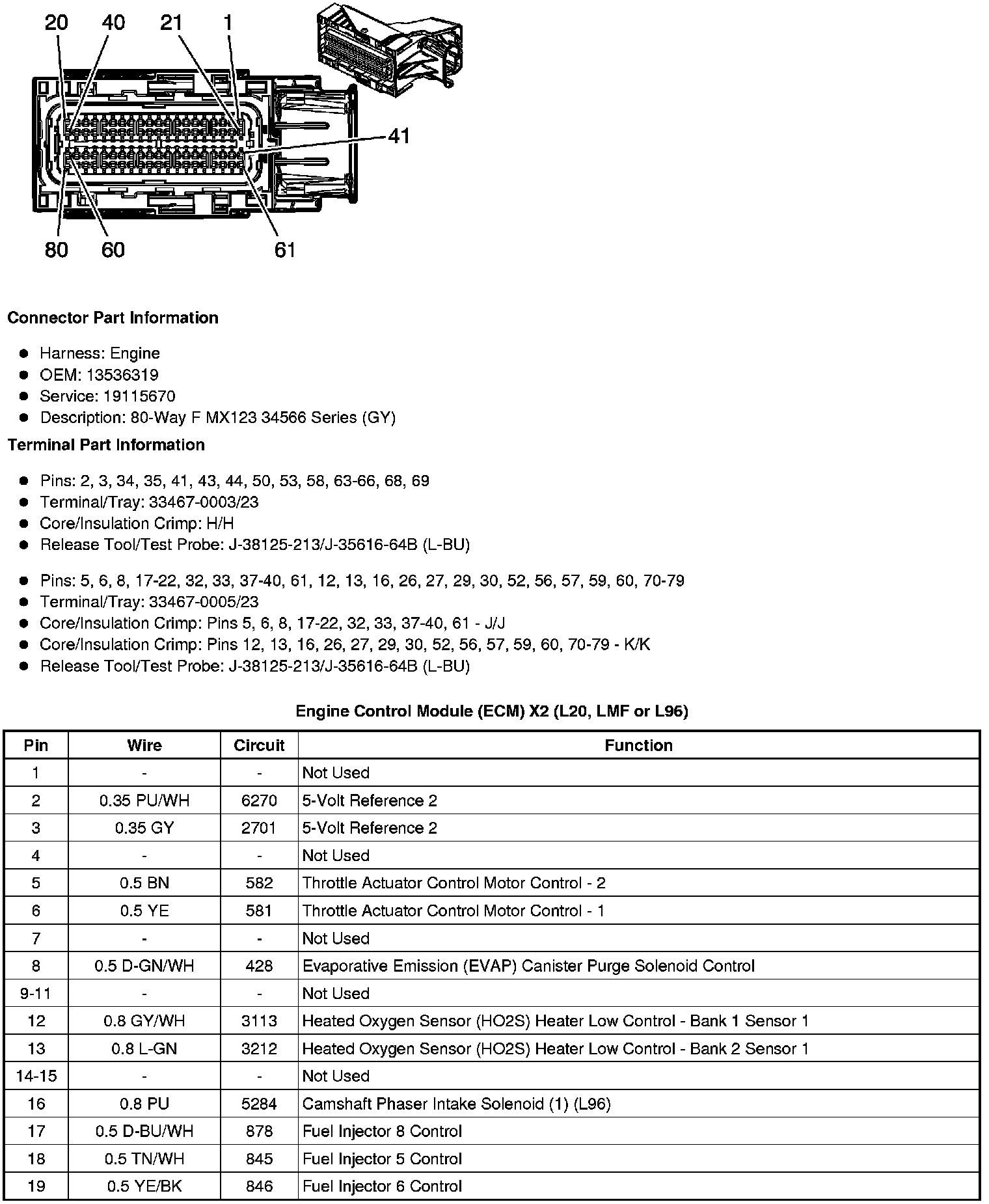

Engine Control Module (ECM) X2 (L20, LMF or L96)

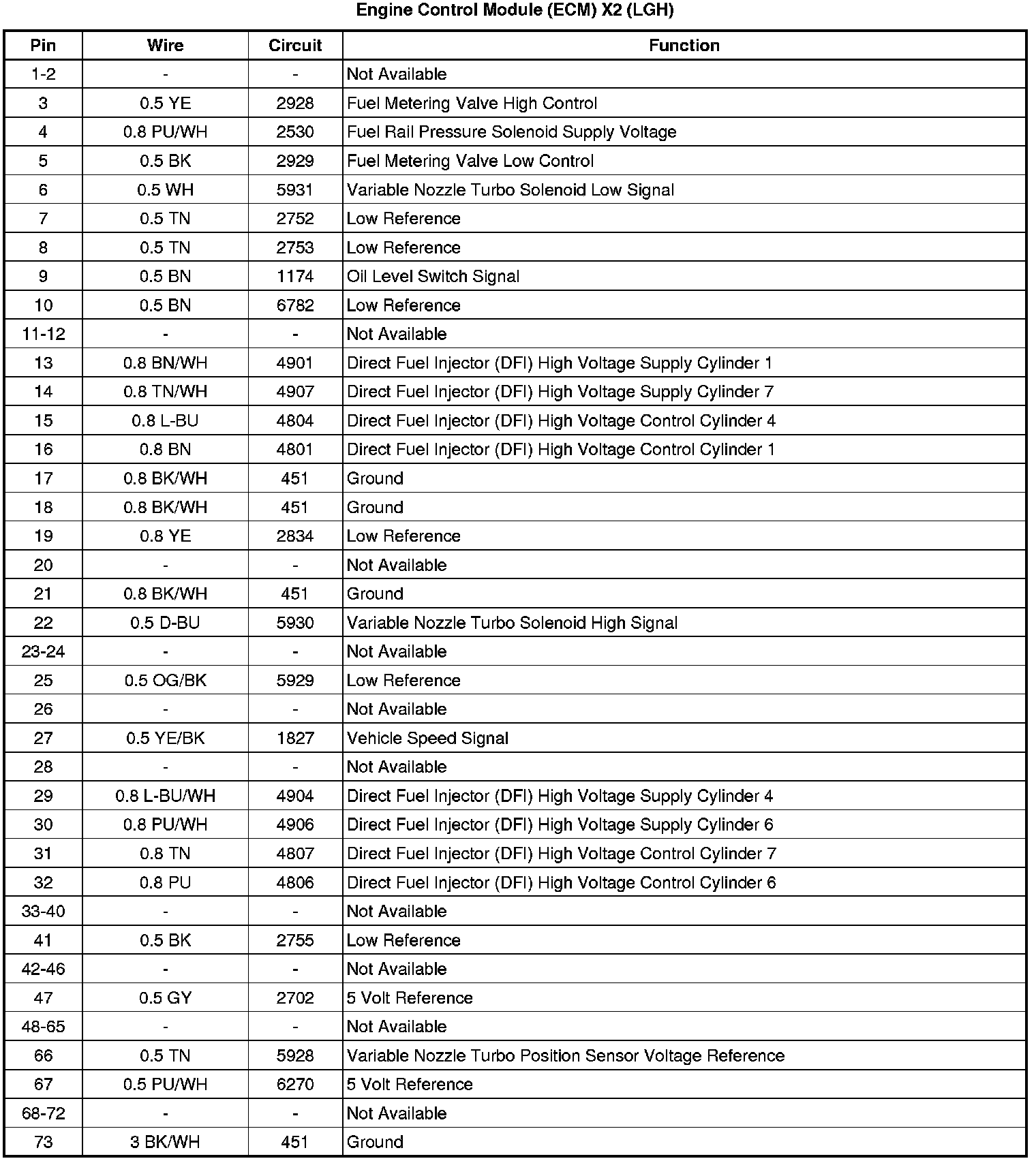

Engine Control Module (ECM) X2 (LGH)

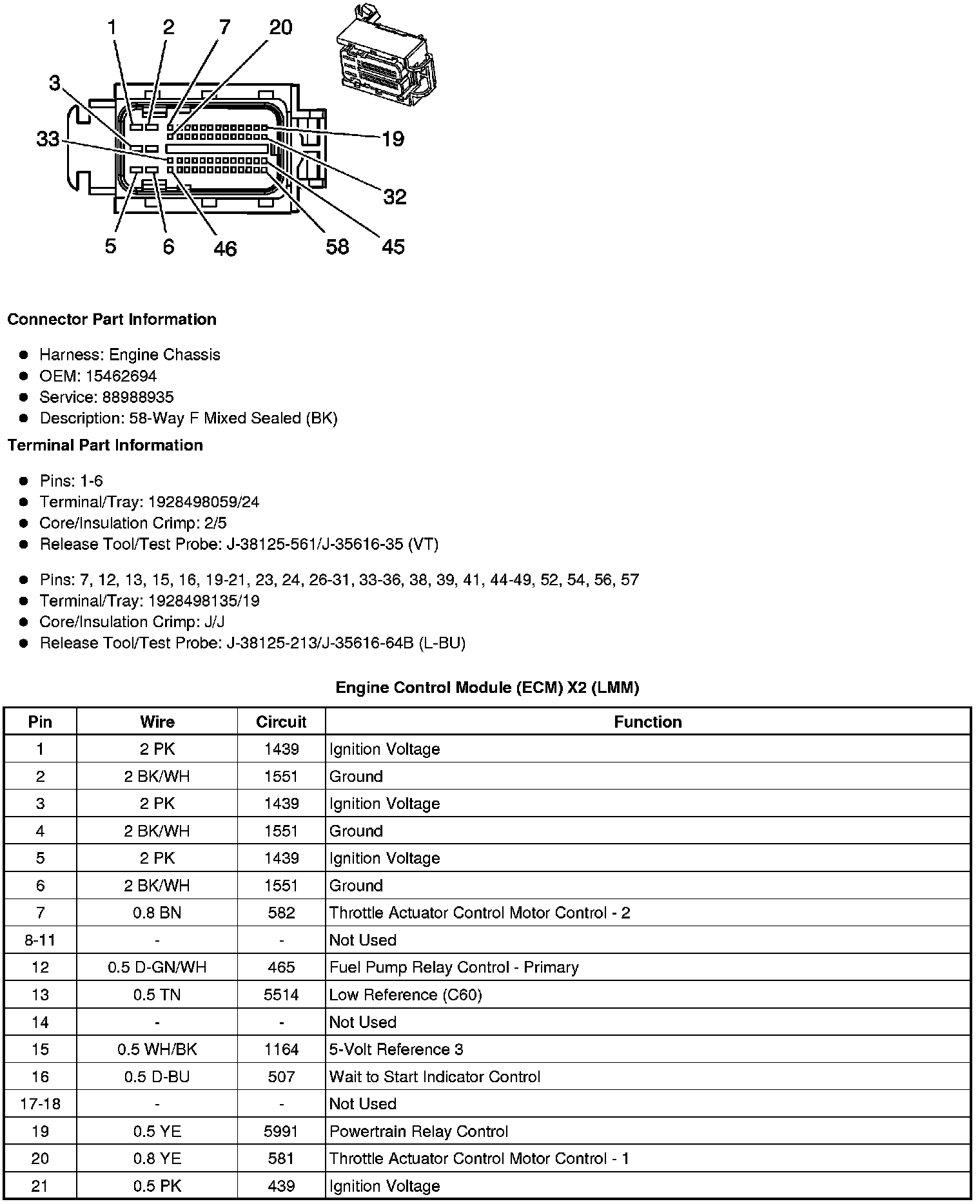

Engine Control Module (ECM) X2 (LMM)

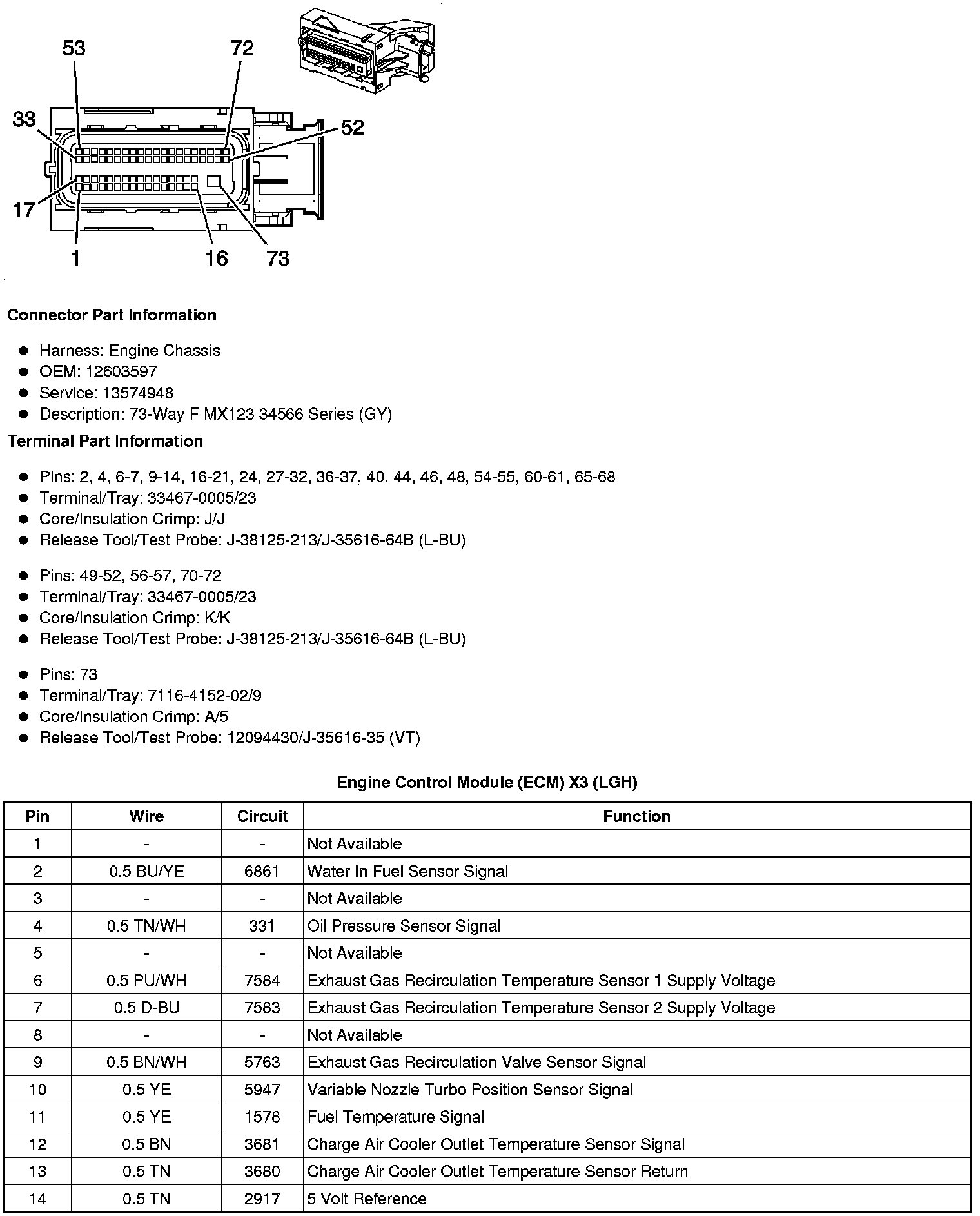

Engine Control Module (ECM) X3 (LGH)

Engine Coolant Level Switch (LMM or LGH)

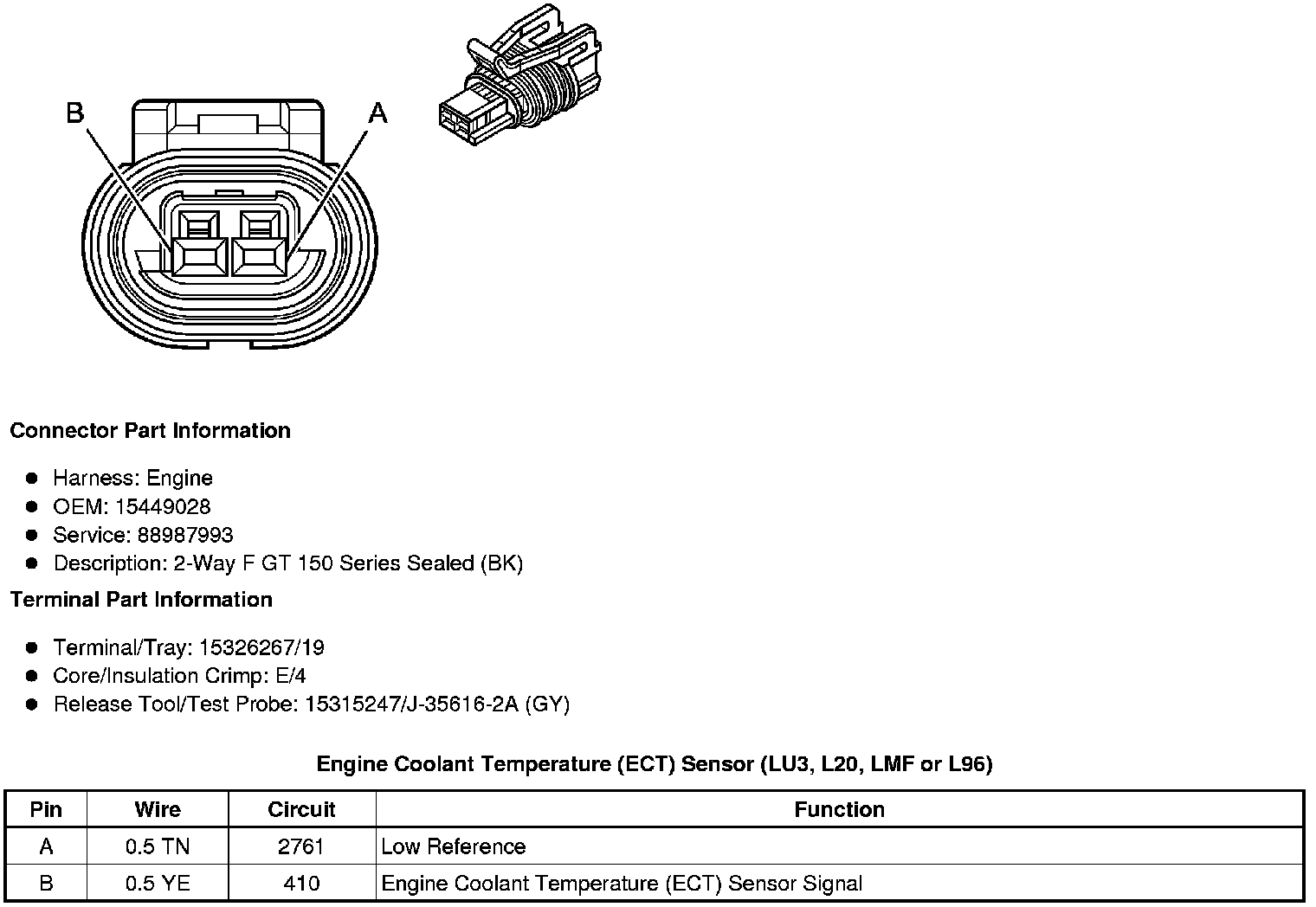

Engine Coolant Temperature (ECT) Sensor (LU3, L20, LMF or L96)

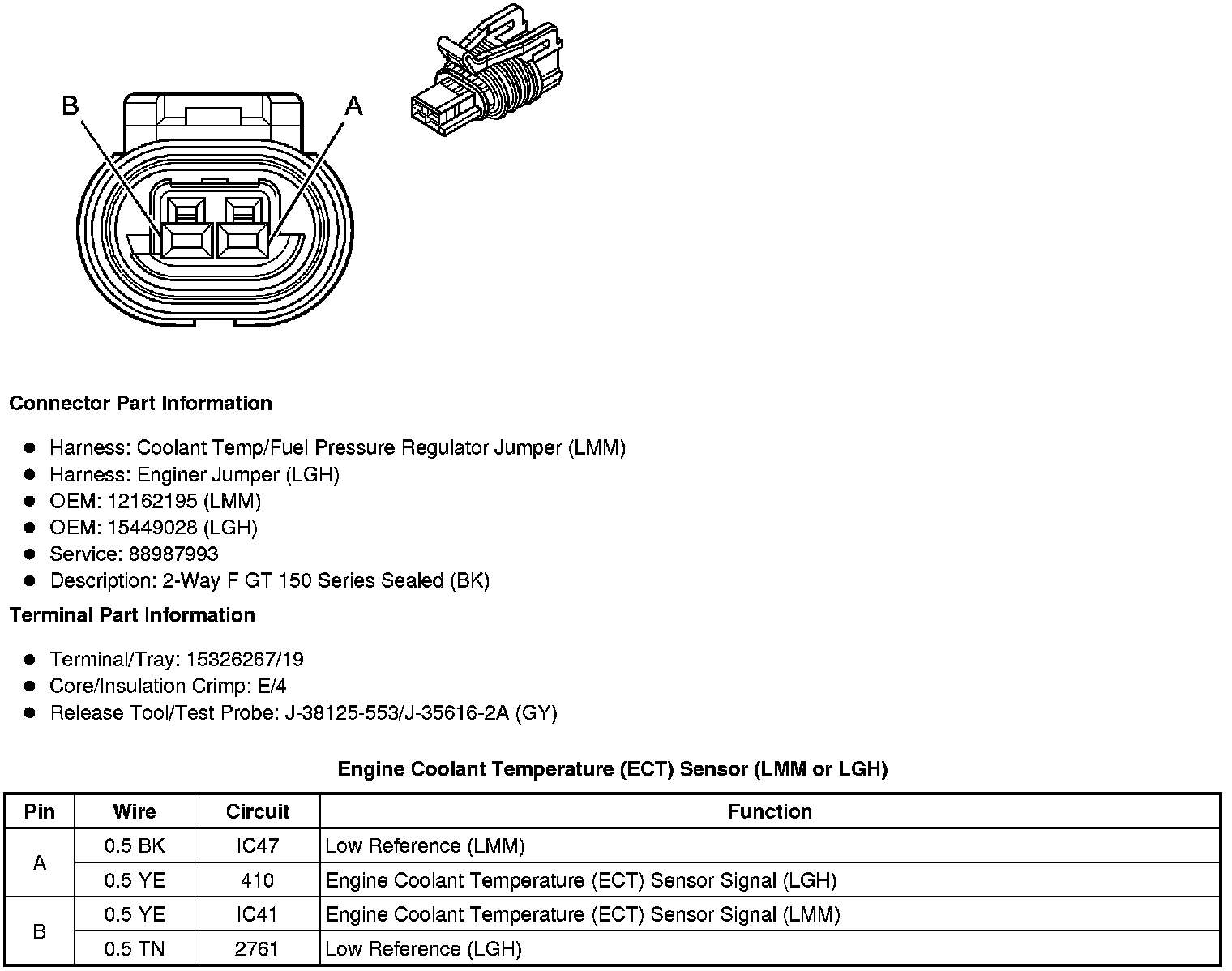

Engine Coolant Temperature (ECT) Sensor (LMM or LGH)

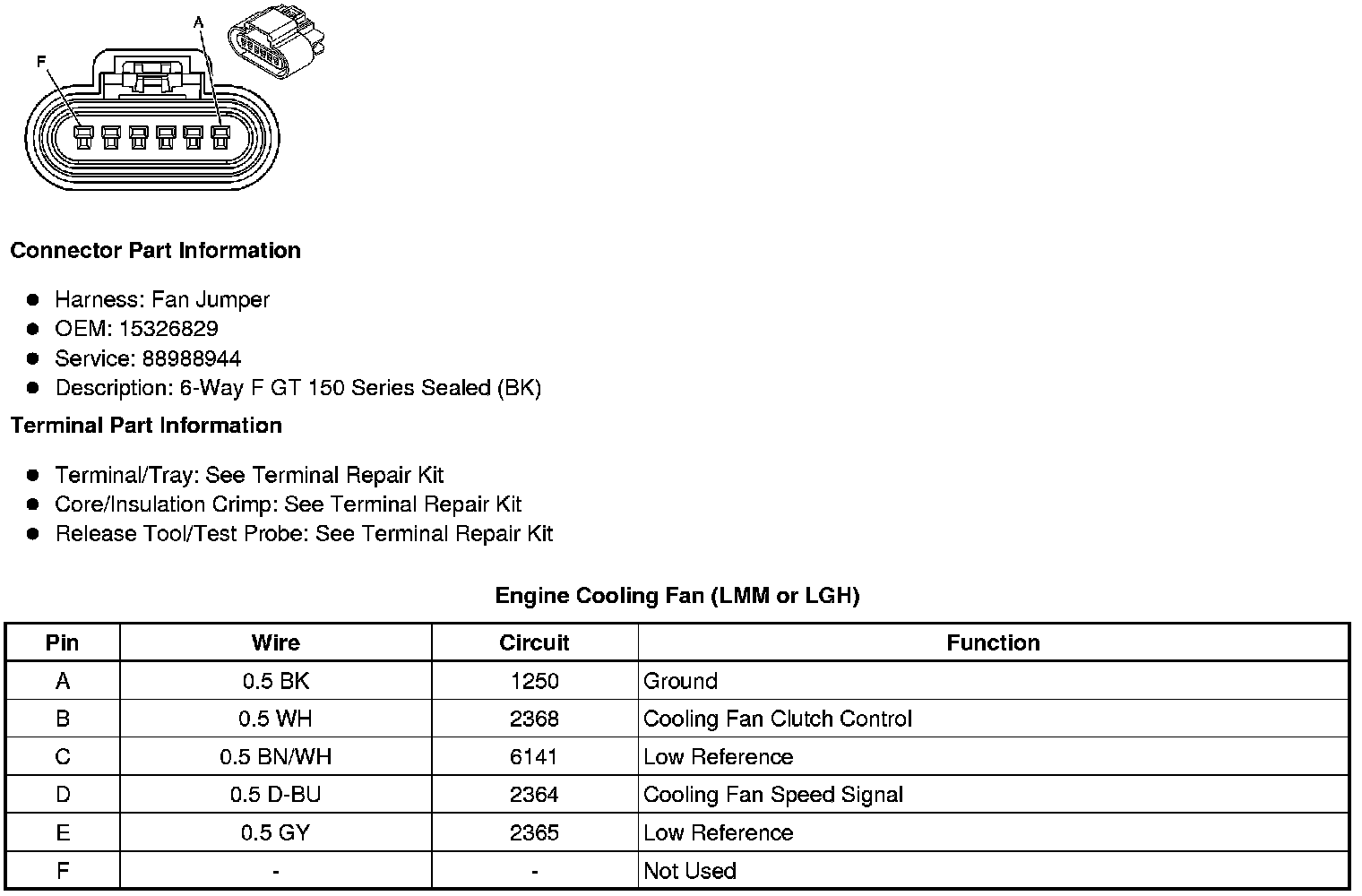

Engine Cooling Fan (LMM or LGH)

Engine Oil Level (EOL) Switch (LMM or LGH)

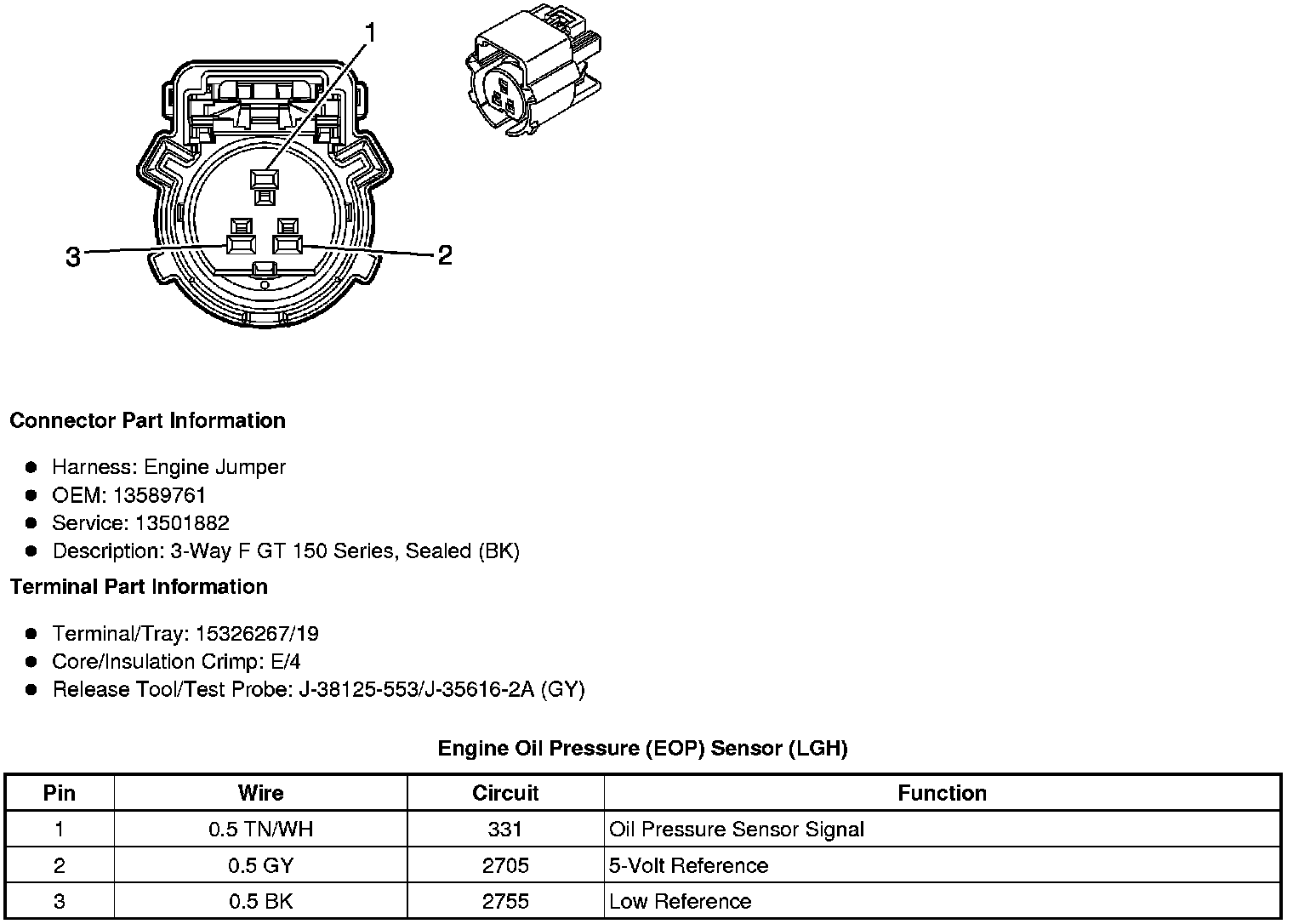

Engine Oil Pressure (EOP) Sensor (LGH)

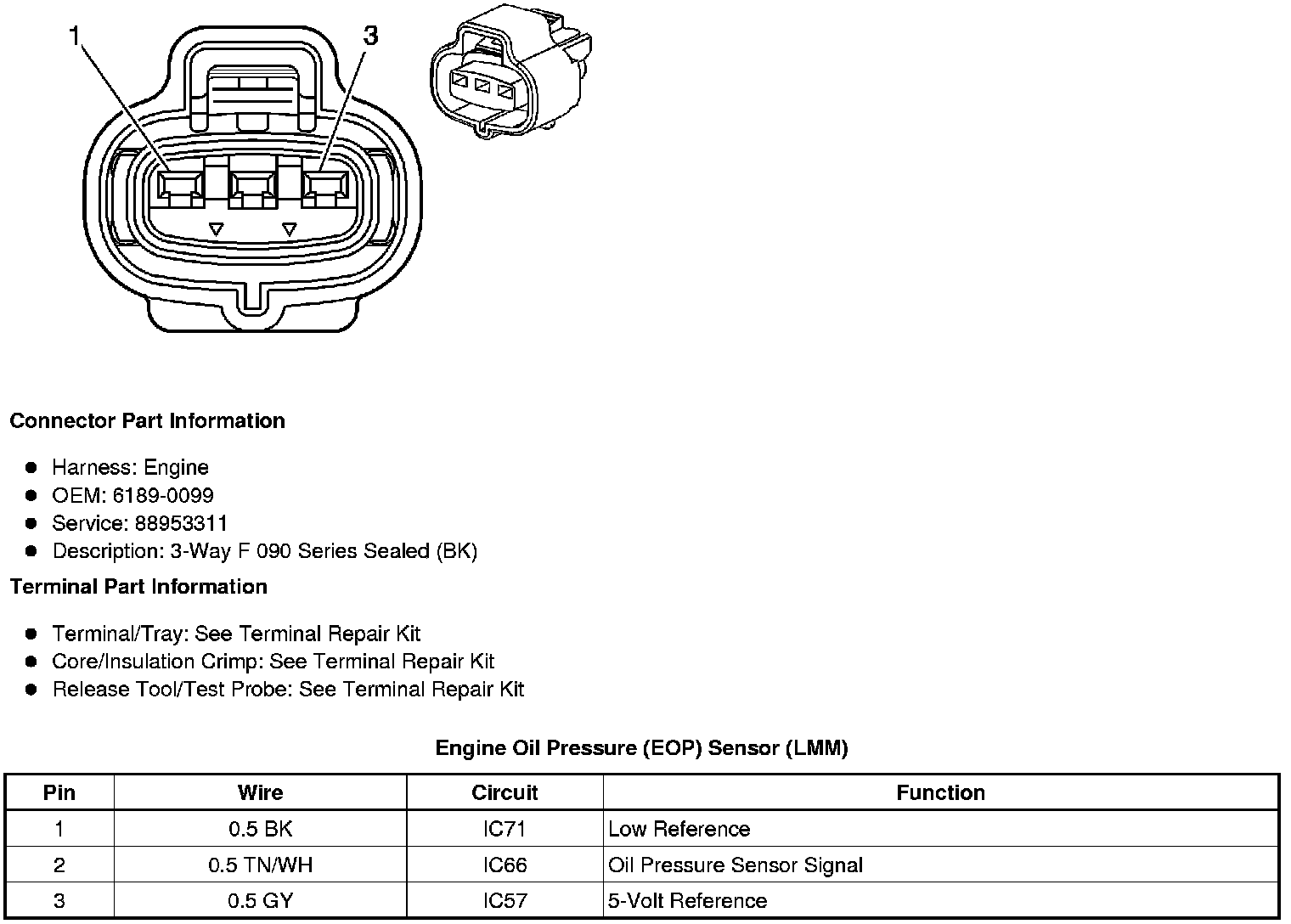

Engine Oil Pressure (EOP) Sensor (LMM)

Engine Oil Pressure (EOP) Sensor (LU3)

Engine Oil Pressure (EOP) Sensor (L20, LMF or L96)

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LU3, L20, LMF or L96)

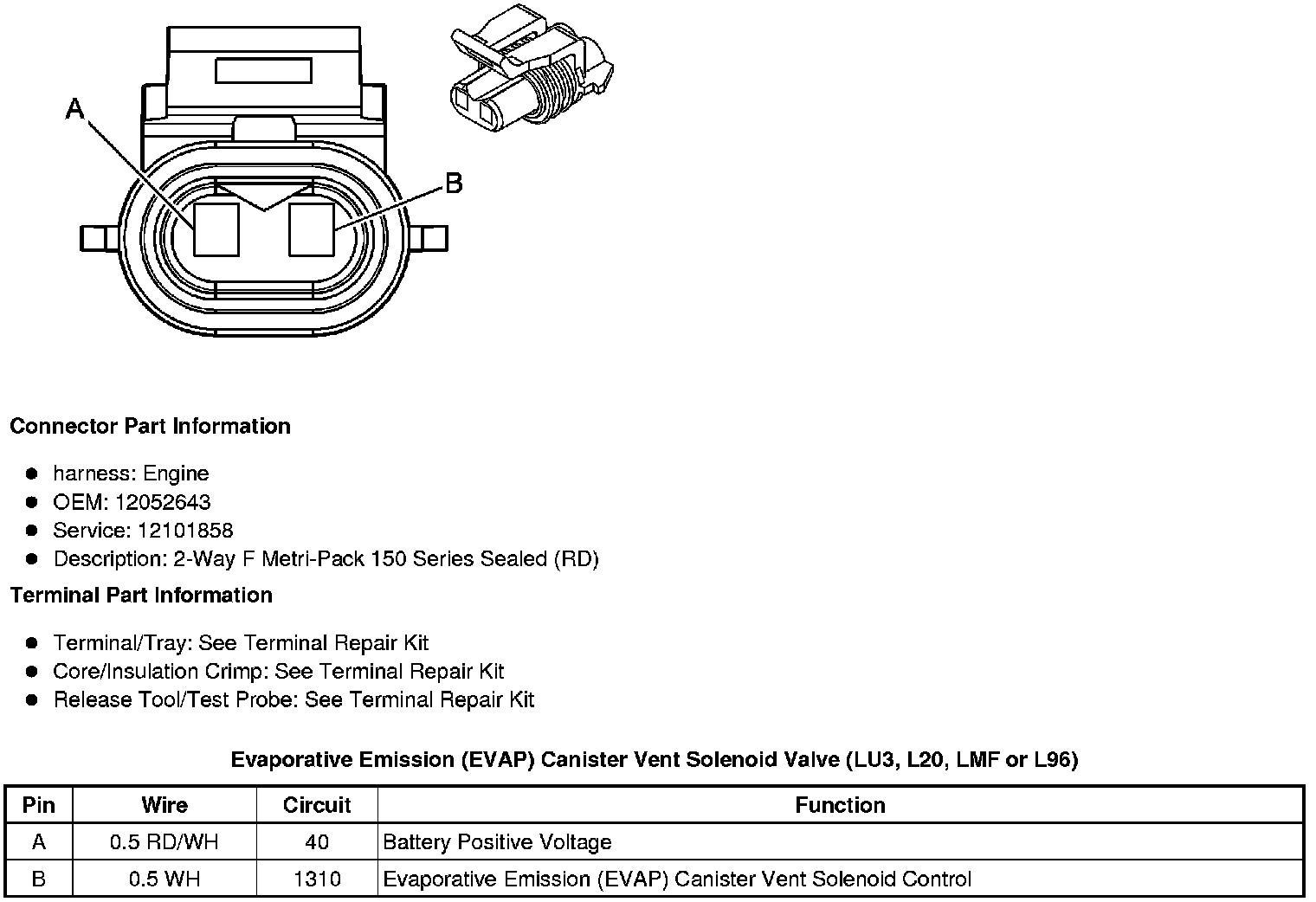

Evaporative Emission (EVAP) Canister Vent Solenoid Valve (LU3, L20, LMF or L96)

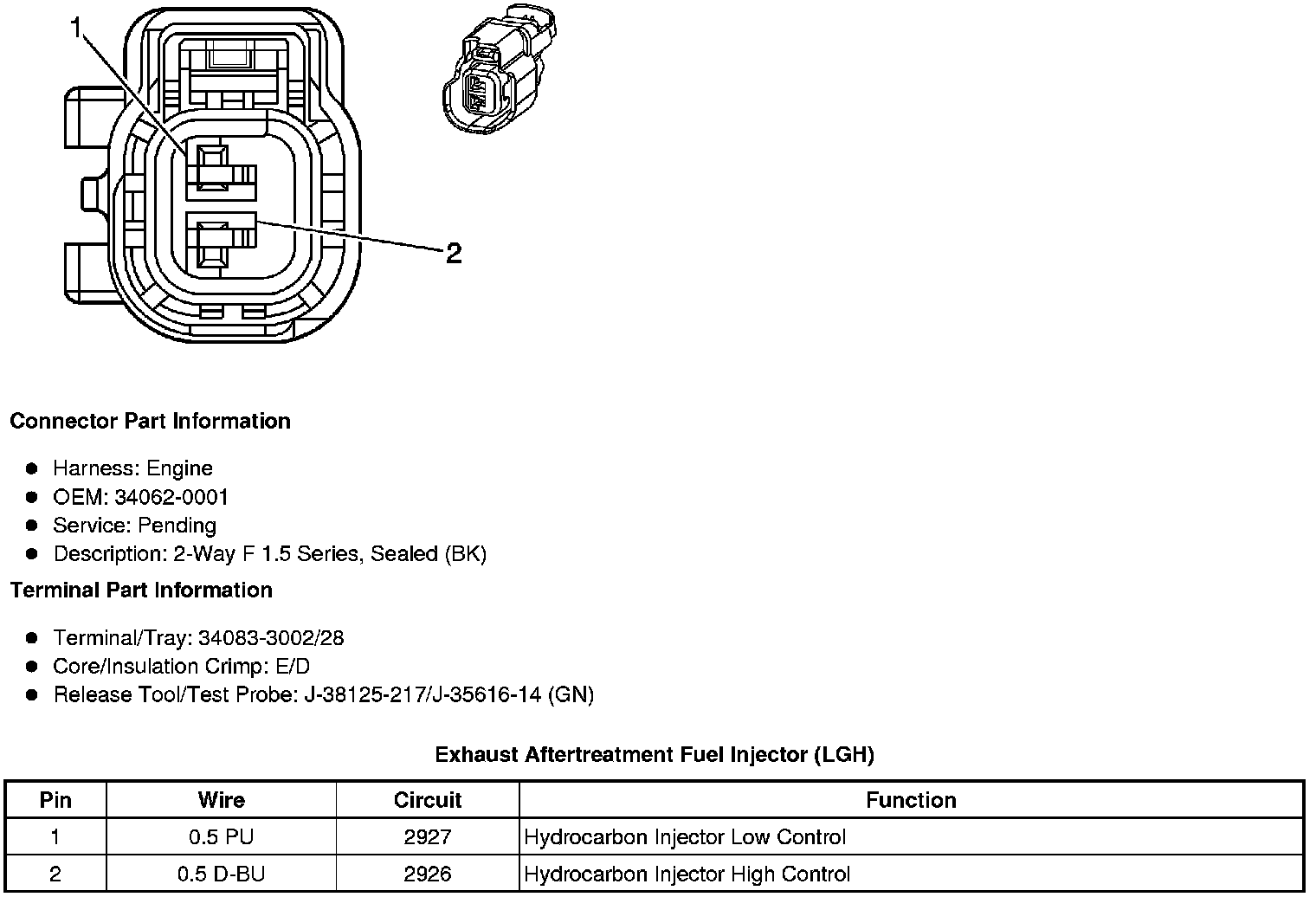

Exhaust Aftertreatment Fuel Injector (LGH)
