Fuel Temperature Sensor




Component Connector End Views

Fuel Rail Temperature (FRT) Sensor (LMM)

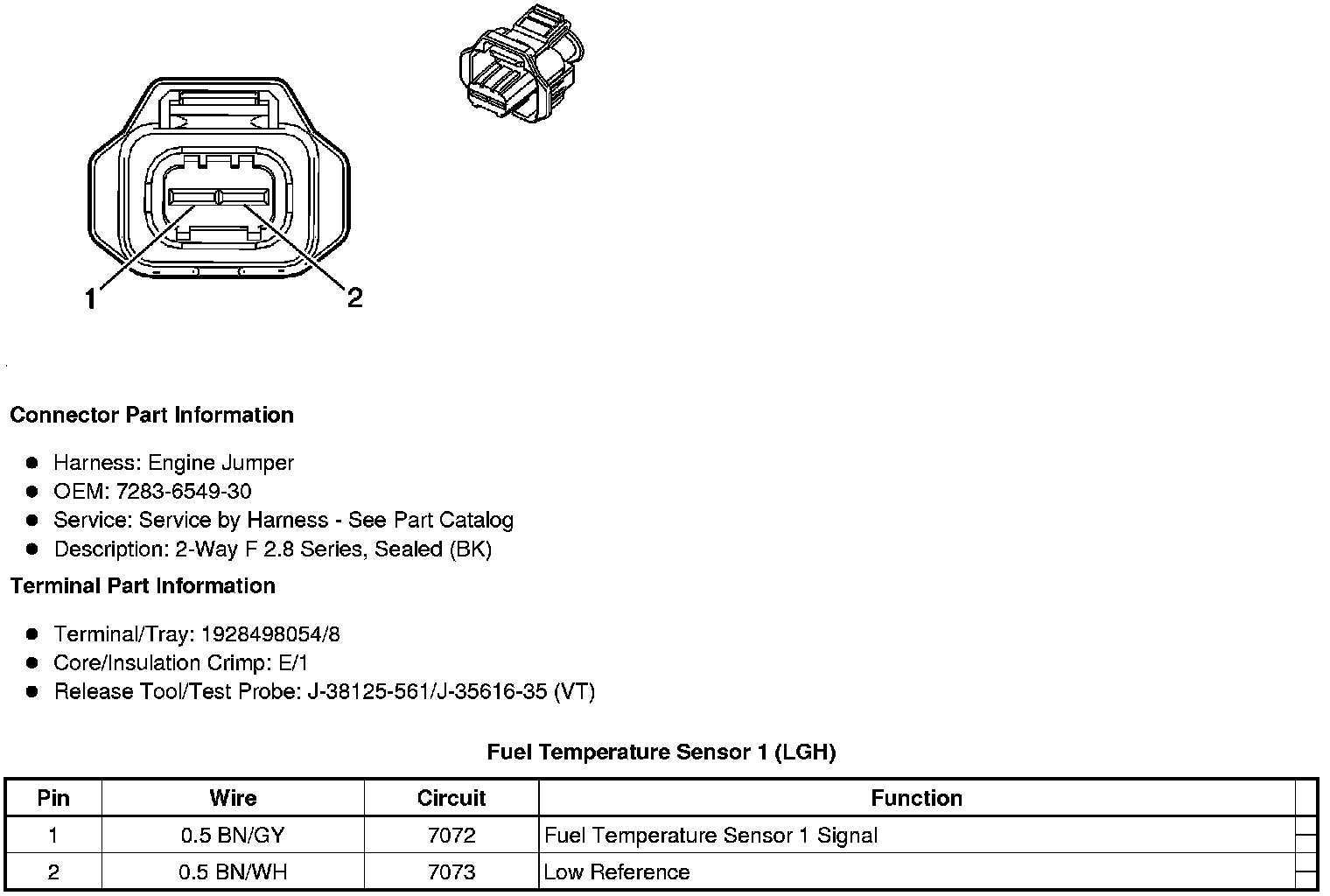

Fuel Temperature Sensor 1 (LGH)





Fuel Temperature Sensor 2 (LGH)
