Fuel Pressure Sensor/Switch




Component Connector End Views

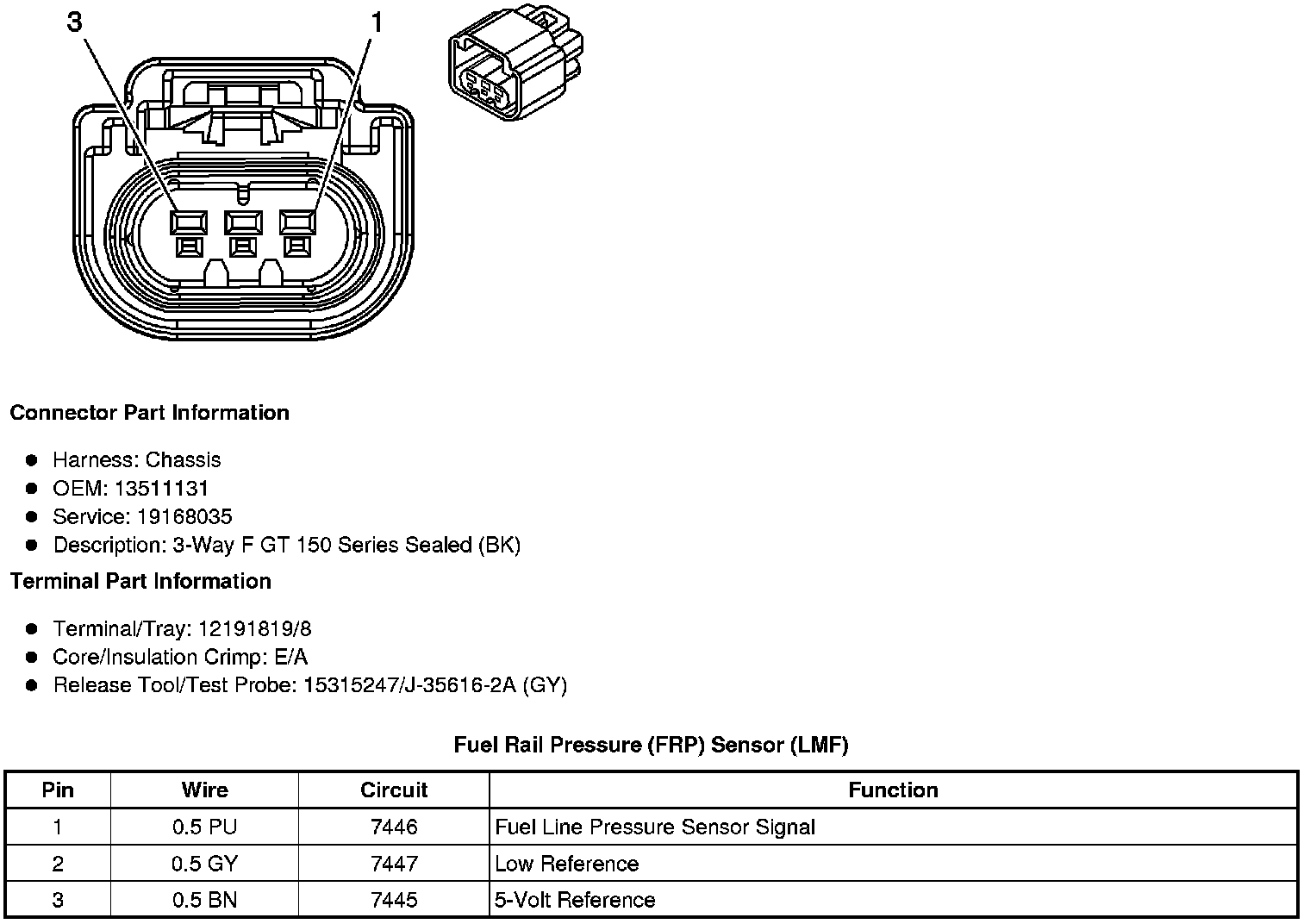

Fuel Rail Pressure (FRP) Sensor (LMF)

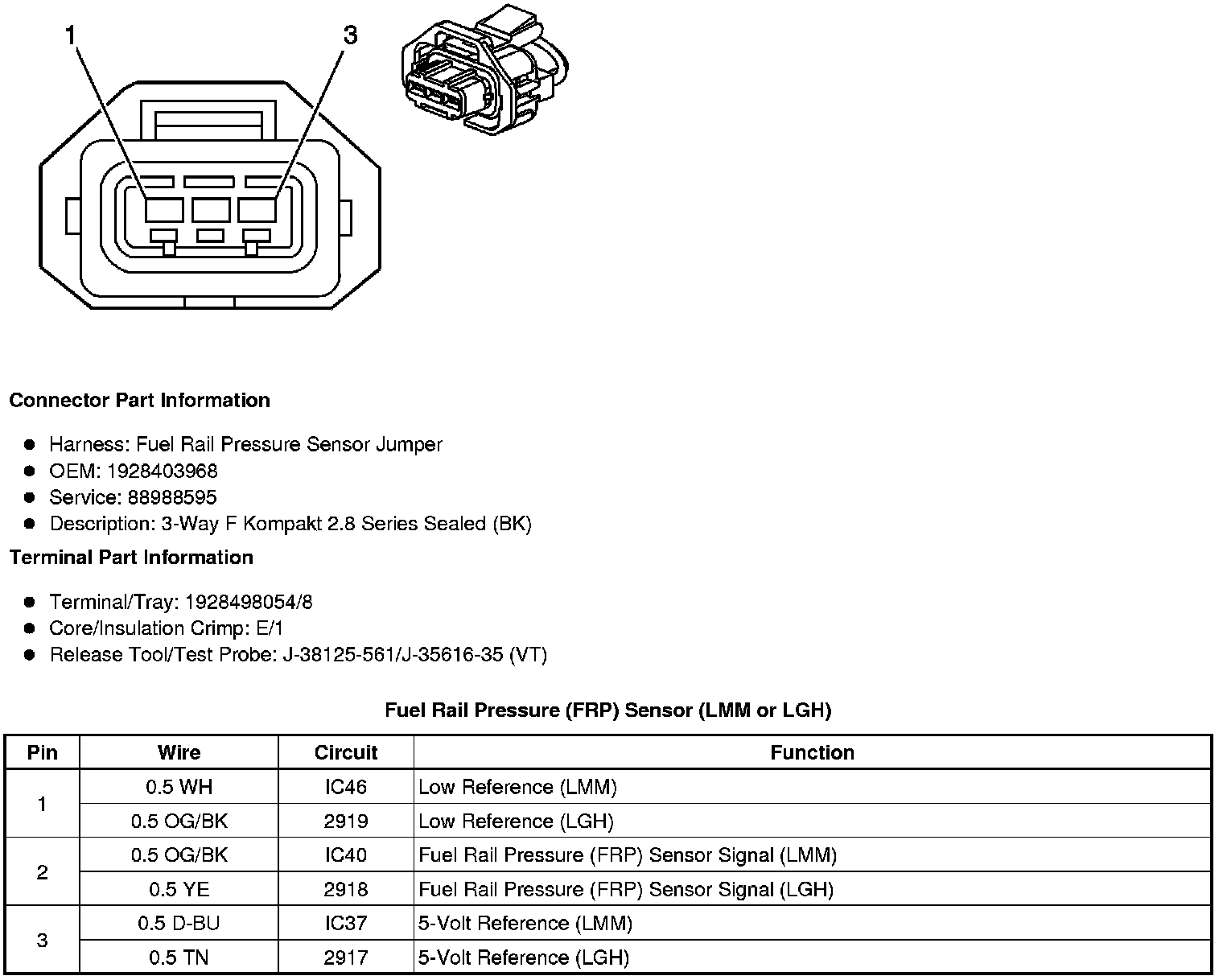

Fuel Rail Pressure (FRP) Sensor (LMM or LGH)
