Diesel Emissions Fluid Pressure Sensor

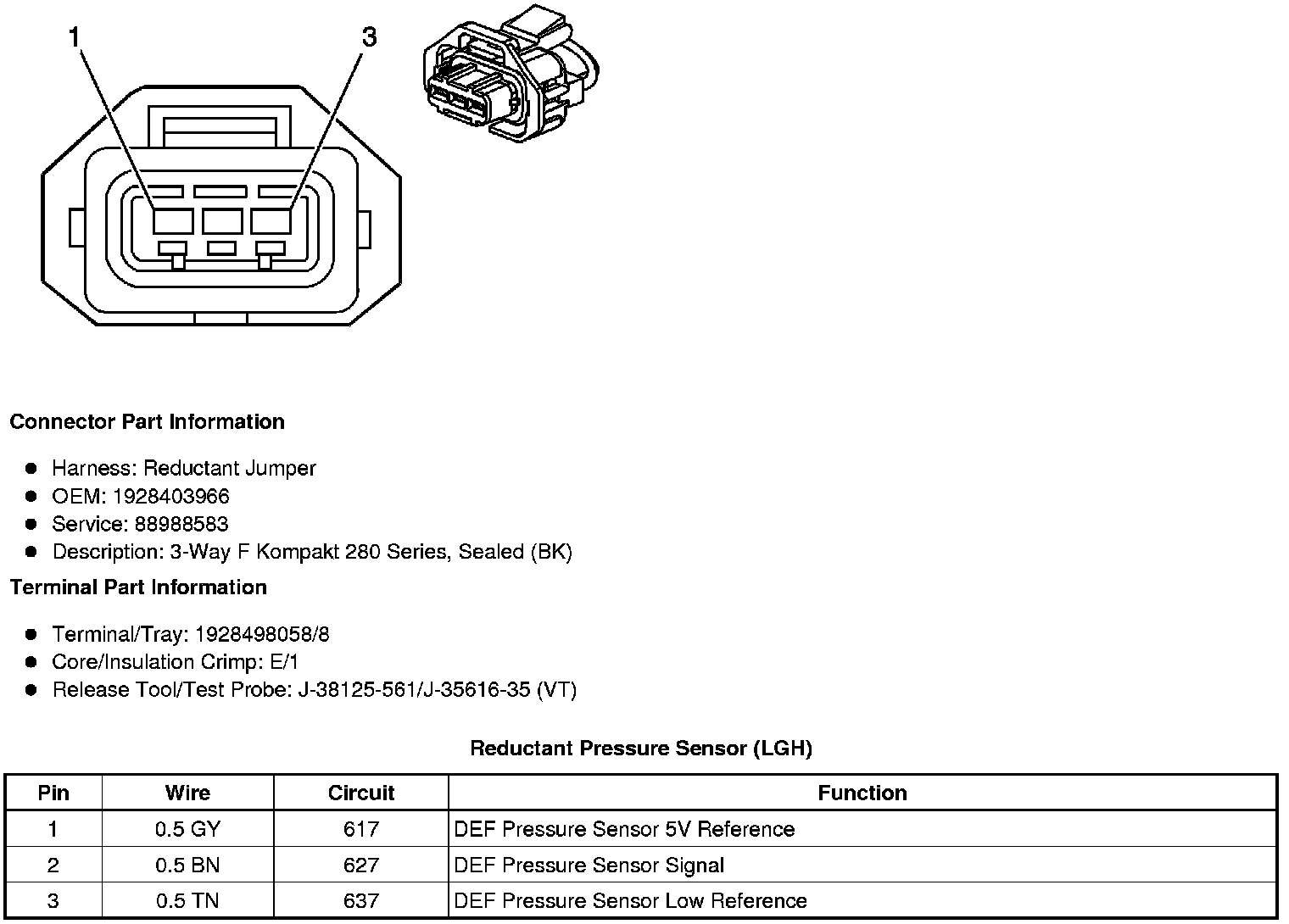

Component Connector End Views

Reductant Pressure Sensor (LGH)
