Crankshaft Position Sensor




Component Connector End Views

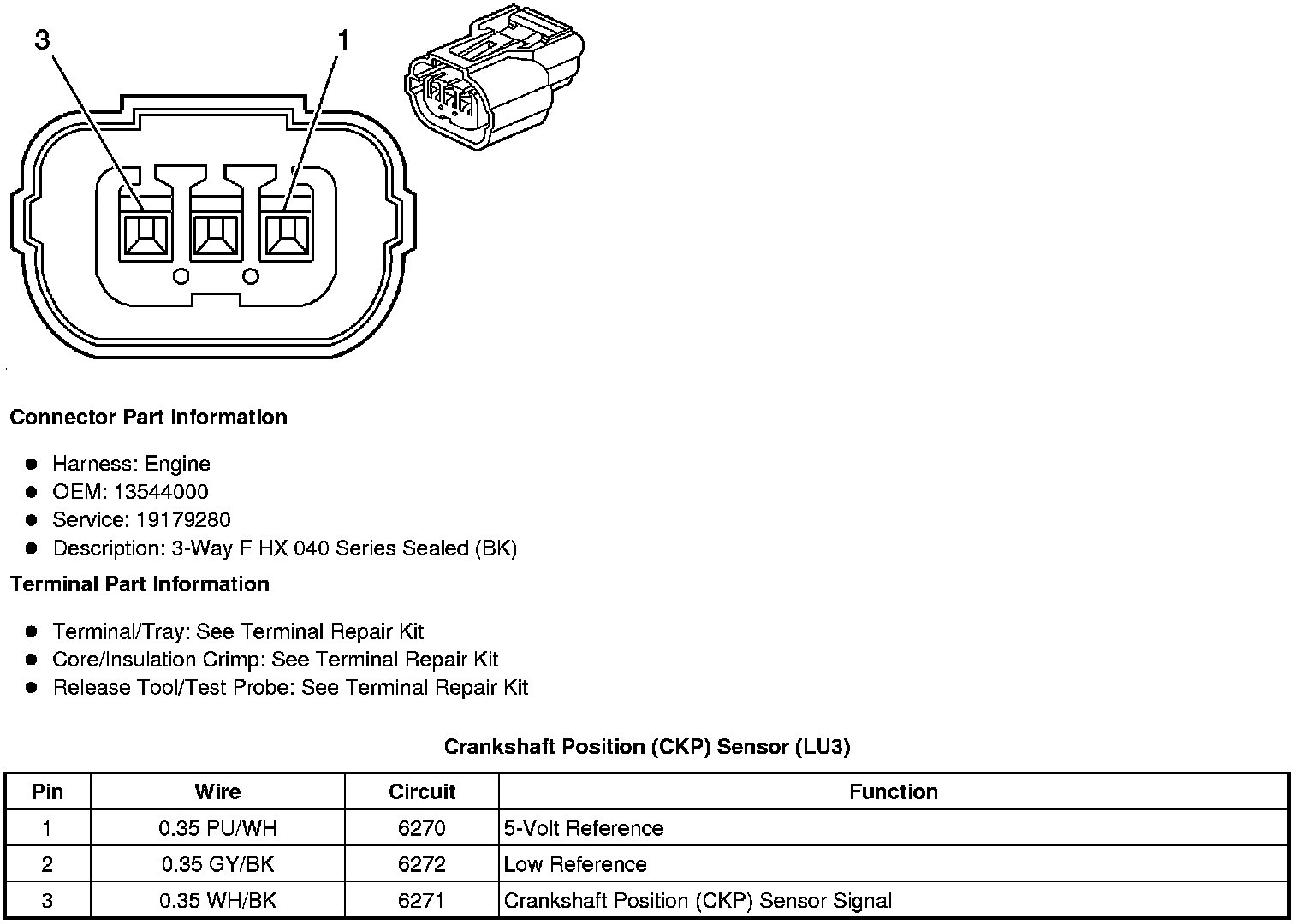

Crankshaft Position (CKP) Sensor (LU3)

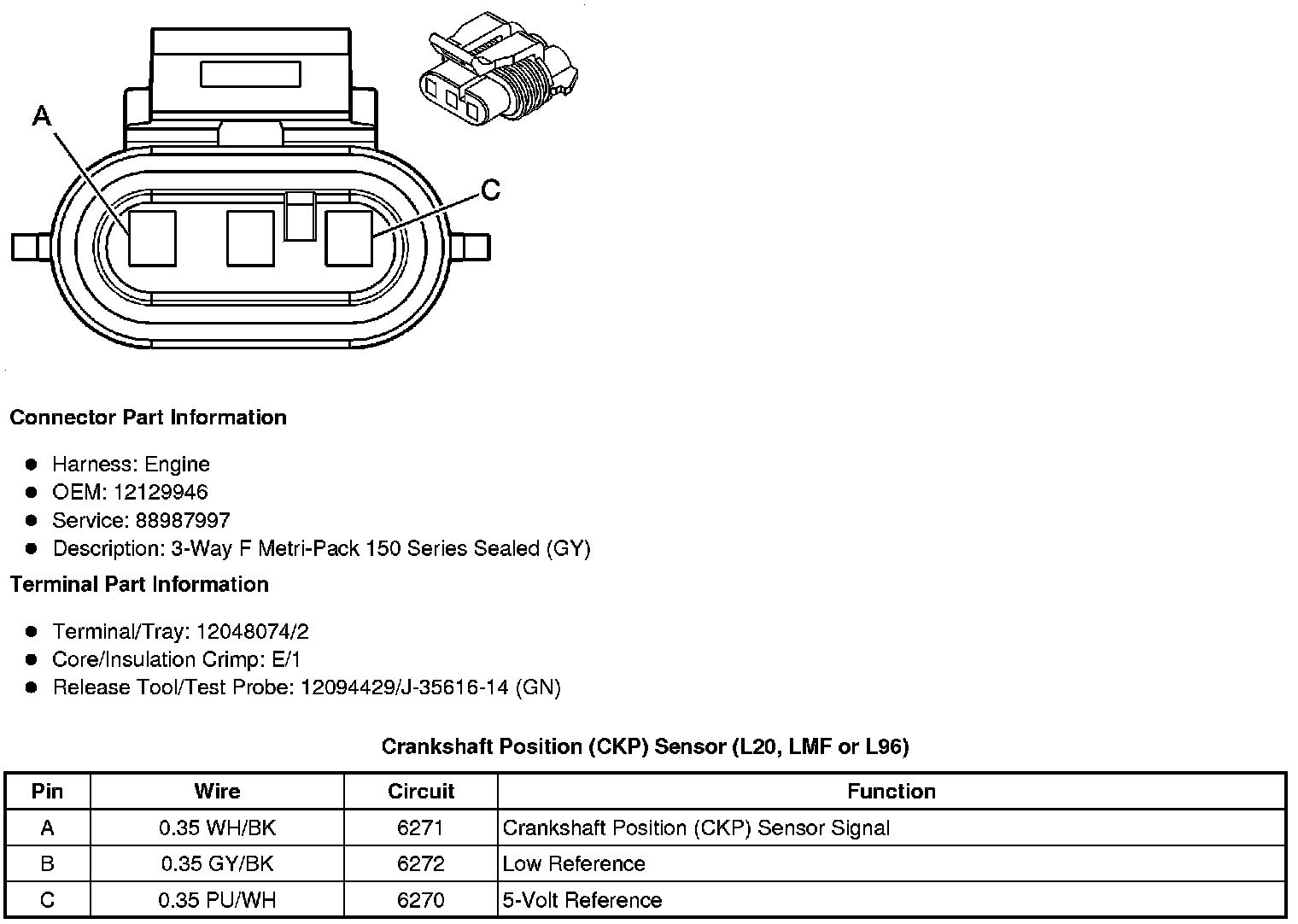

Crankshaft Position (CKP) Sensor (L20, LMF or L96)

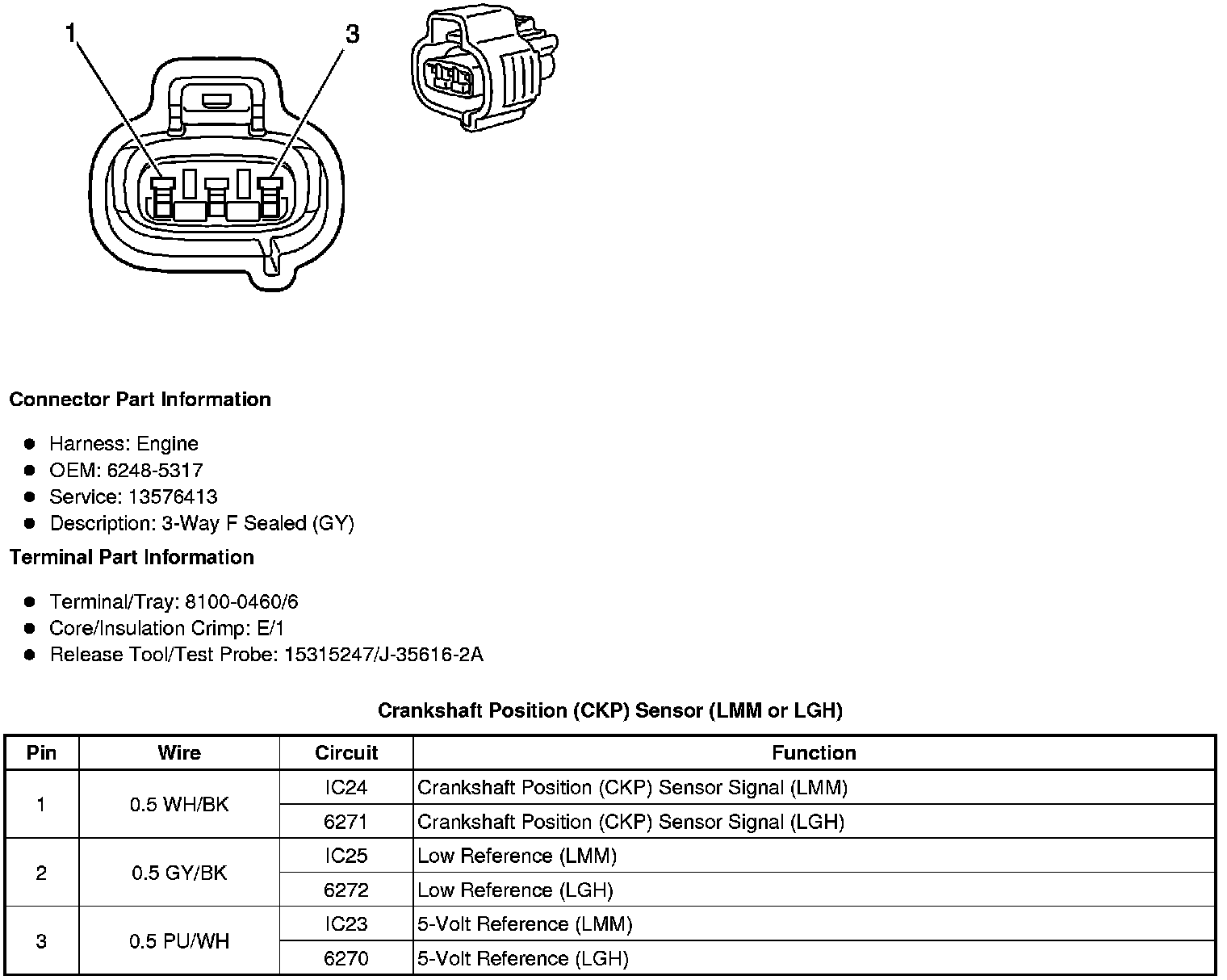

Crankshaft Position (CKP) Sensor (LMM or LGH)
