Automatic Transmission Controls Schematics

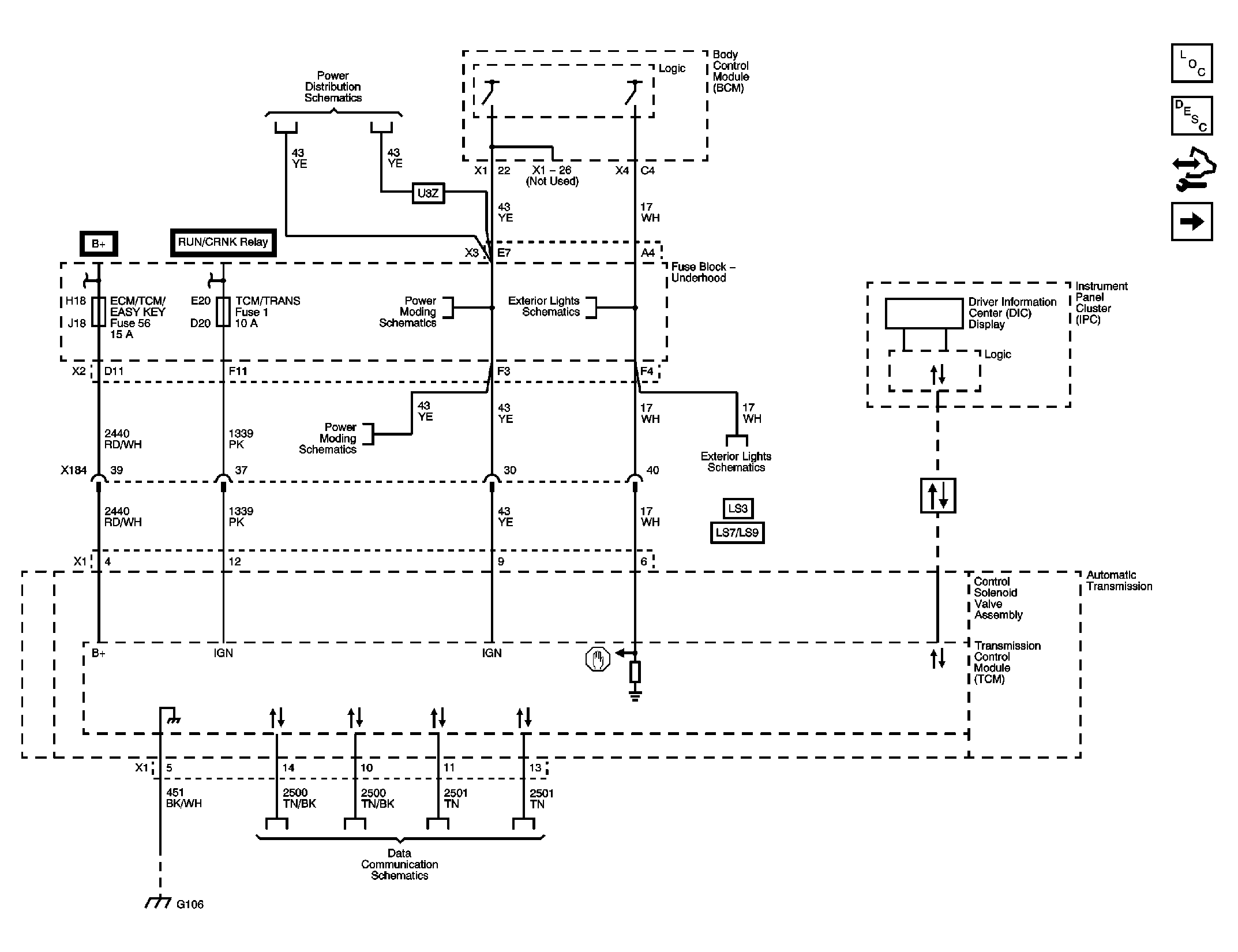

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

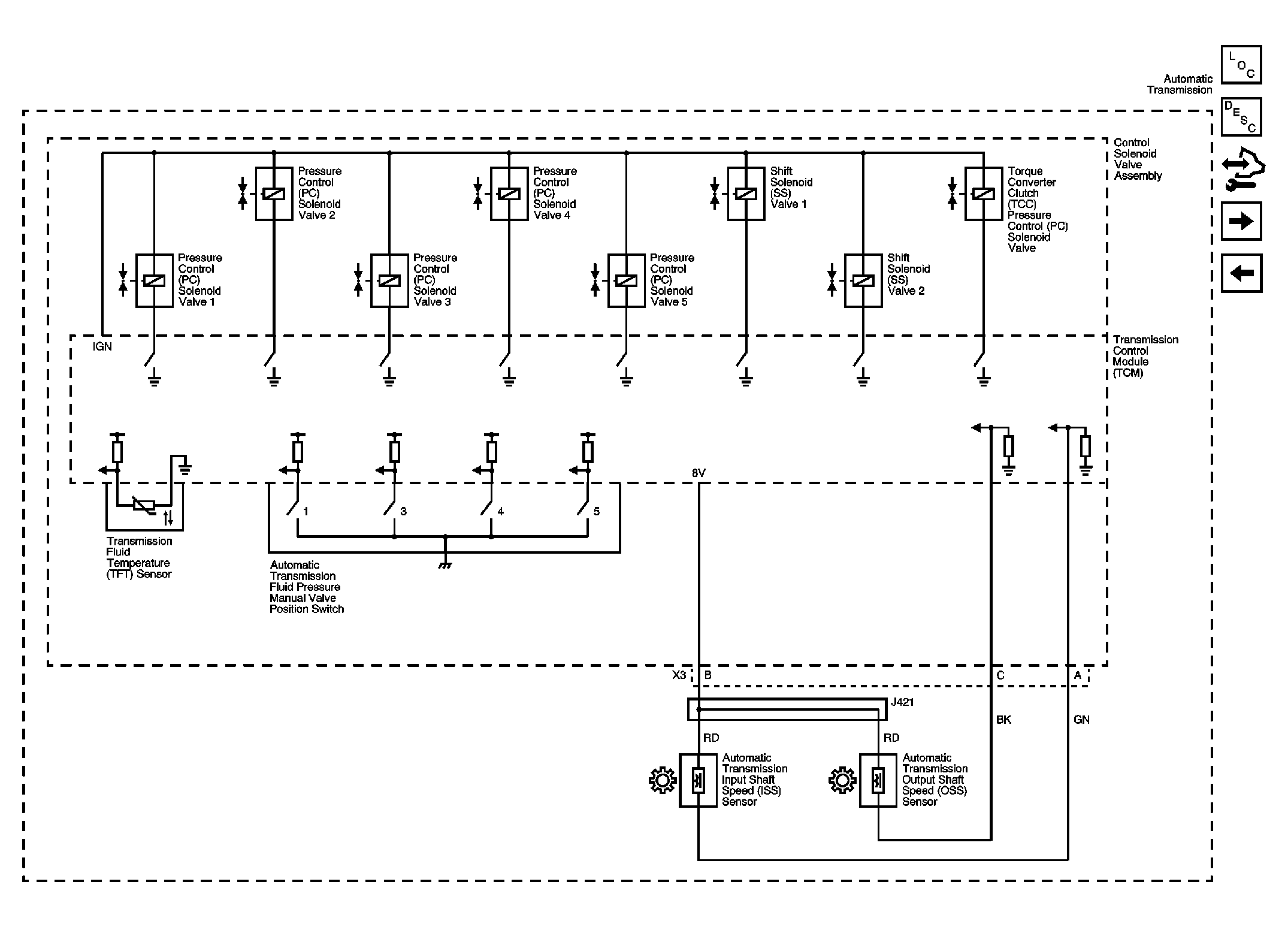

Fig 2: Shaft Speed Sensors, and Pressure, Shift, and Temperature Controls

Courtesy of GENERAL MOTORS CORP.

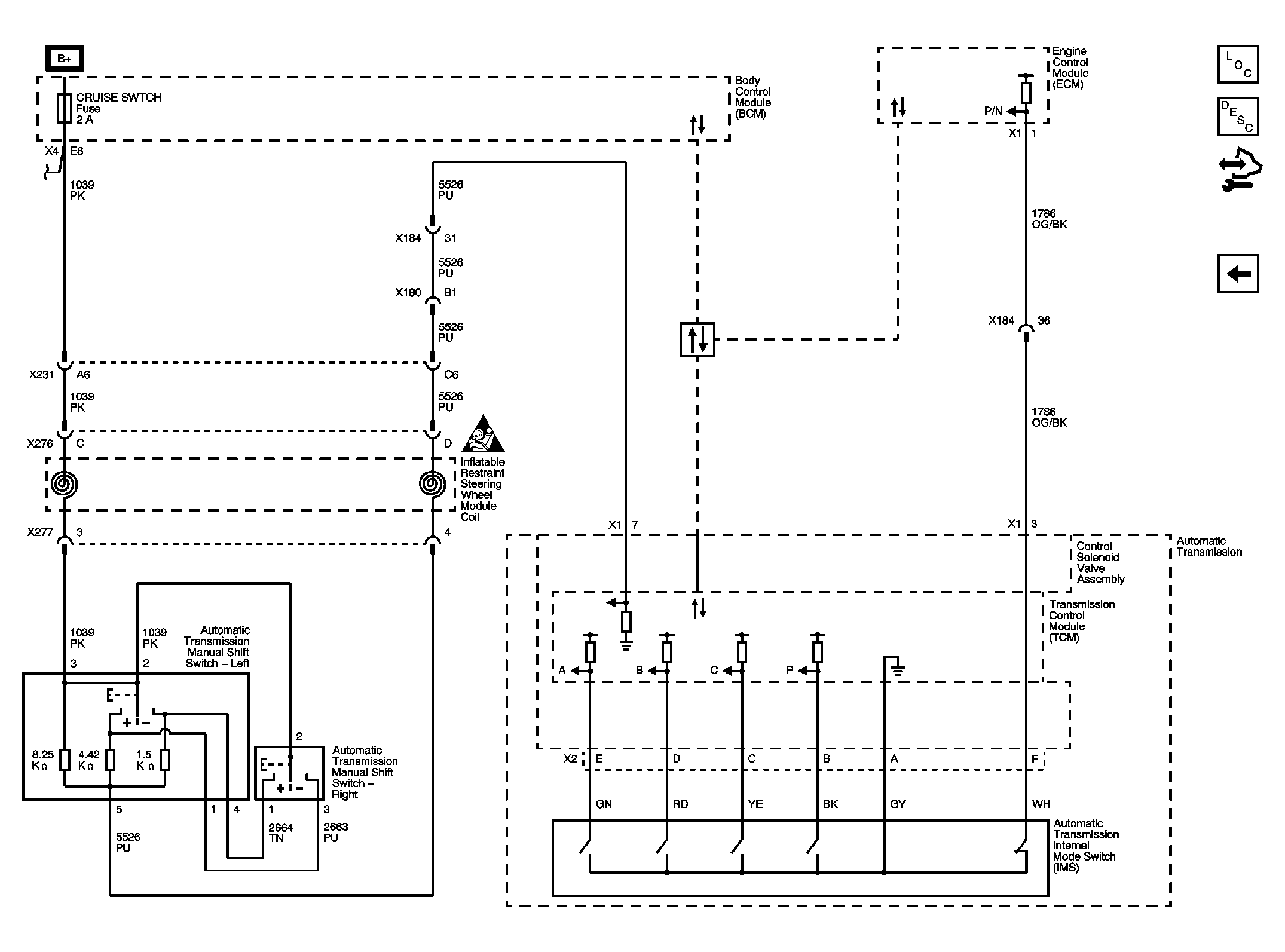

Fig 3: Internal Mode and Shift Switches

Courtesy of GENERAL MOTORS CORP.
