Electronic Suspension Control Schematics

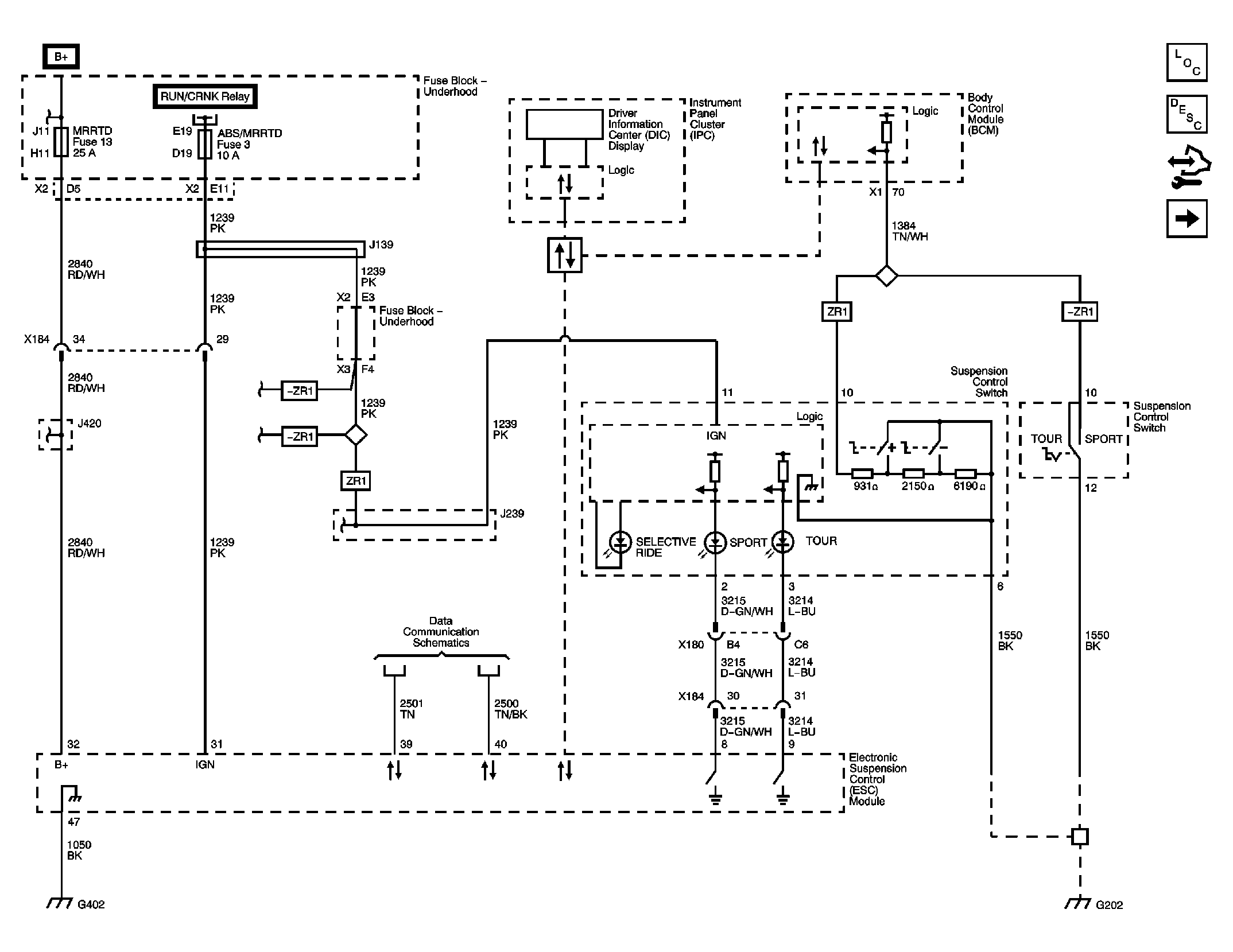

Fig 1: Power, Ground, Serial Data, and Suspension Controls

GM2225396

Courtesy of GENERAL MOTORS CORP.

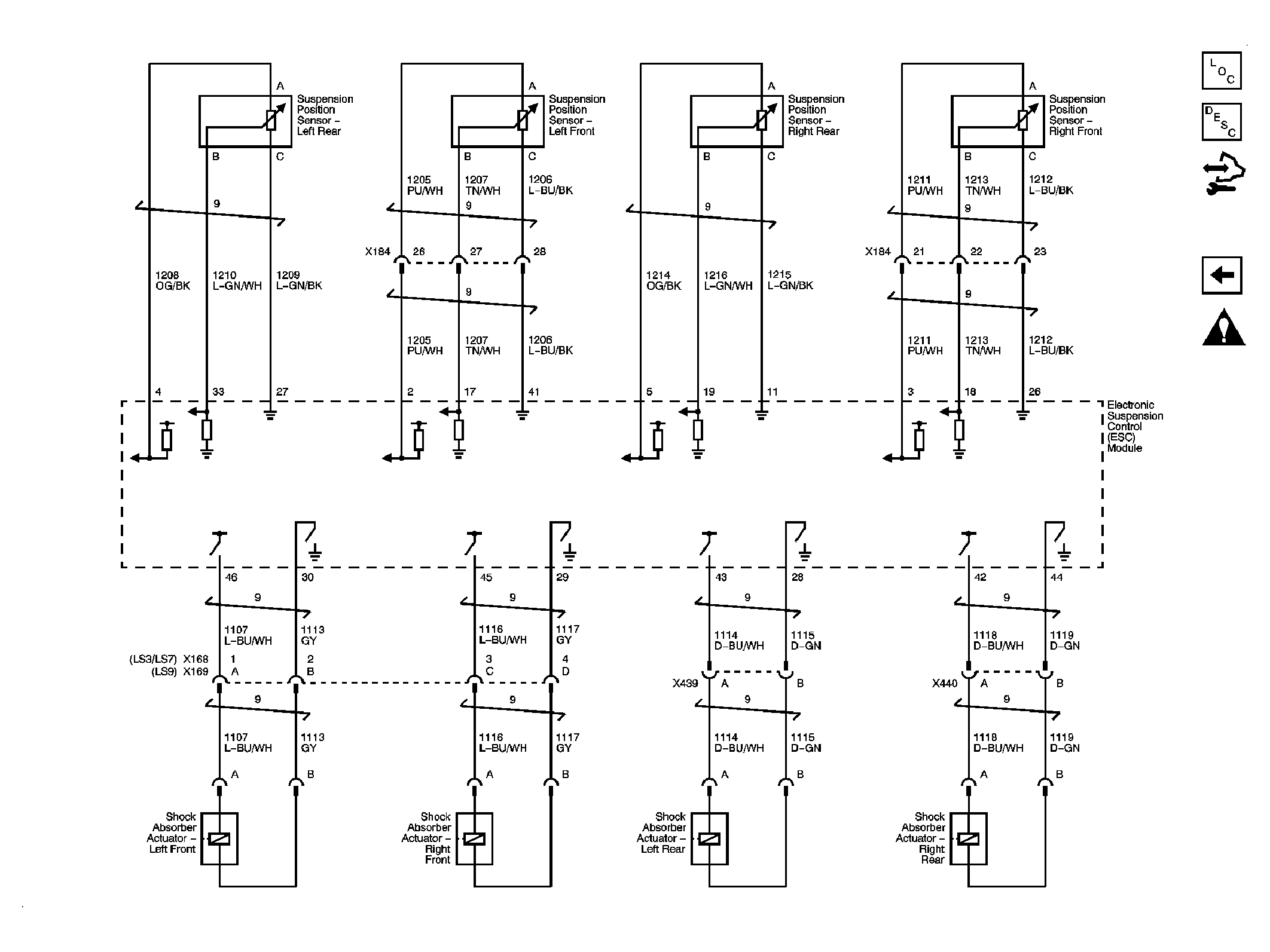

Fig 2: Actuators and Sensors

GM2225398

Courtesy of GENERAL MOTORS CORP.
