Column Lock Schematics
Column Lock Schematics

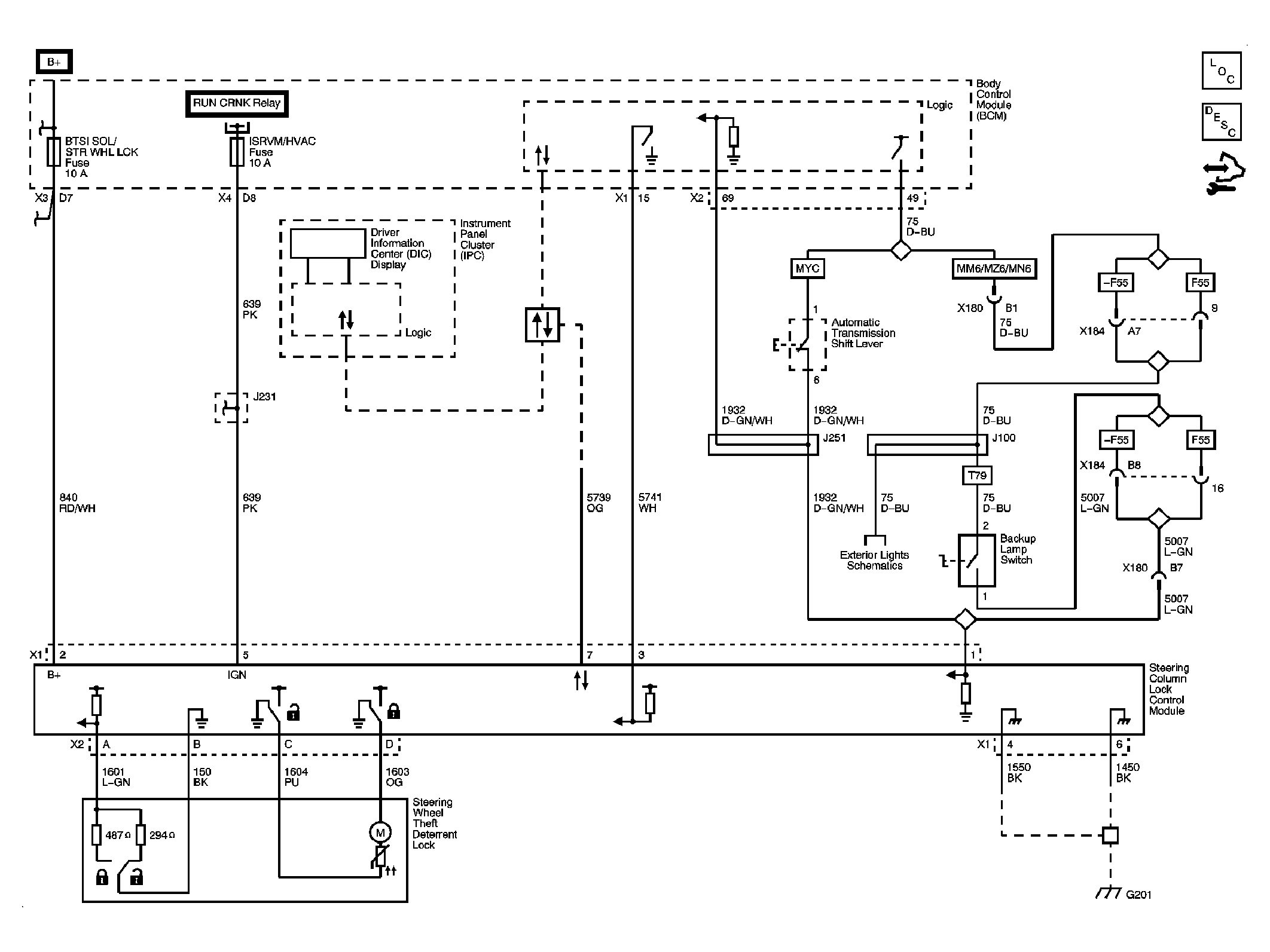

Fig 1: Column Lock
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
