SIR Schematics

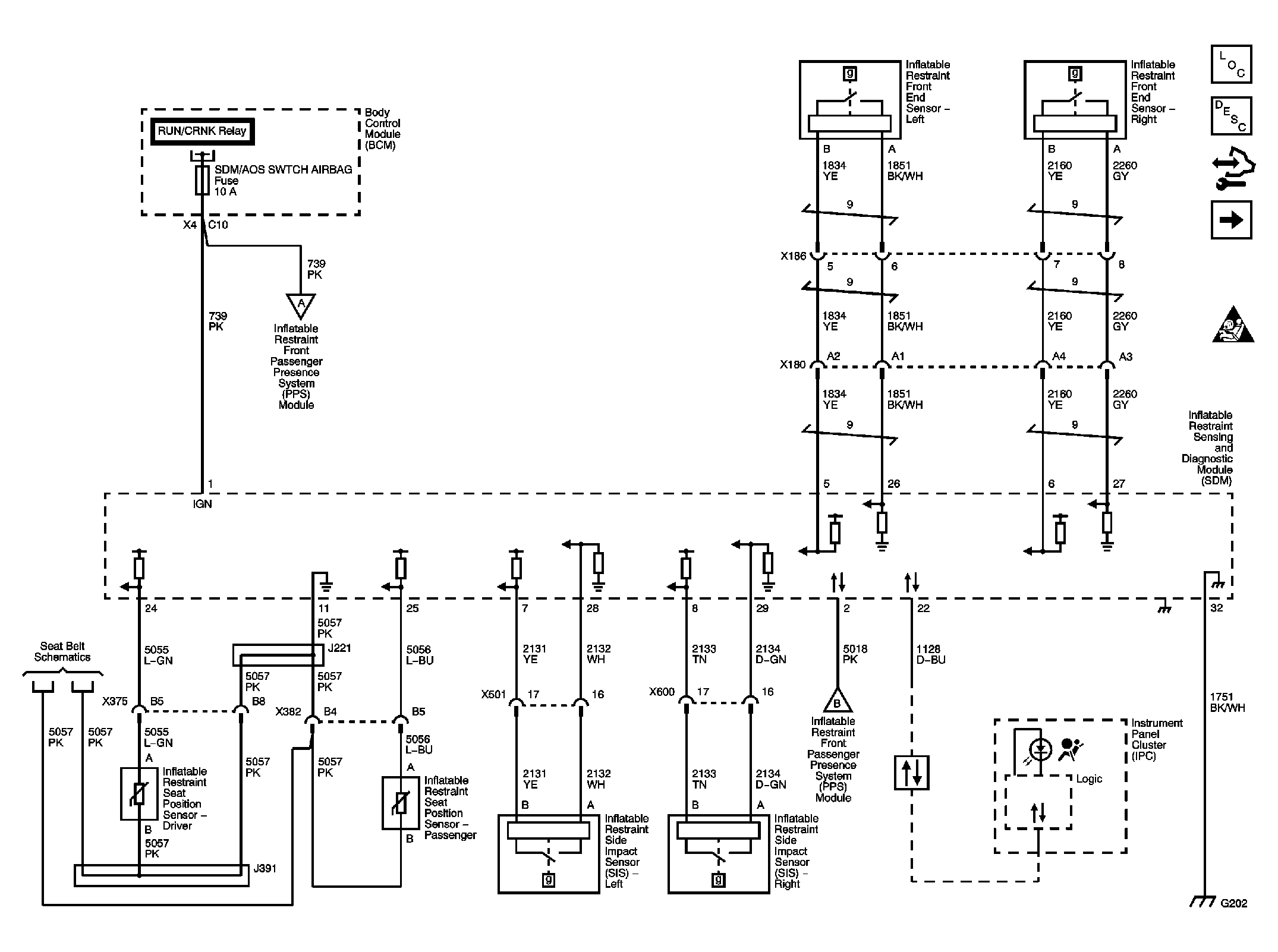

Fig 1: Power, Ground, Indicator, Sensors, and Switches
GM2225399Courtesy of GENERAL MOTORS CORP.

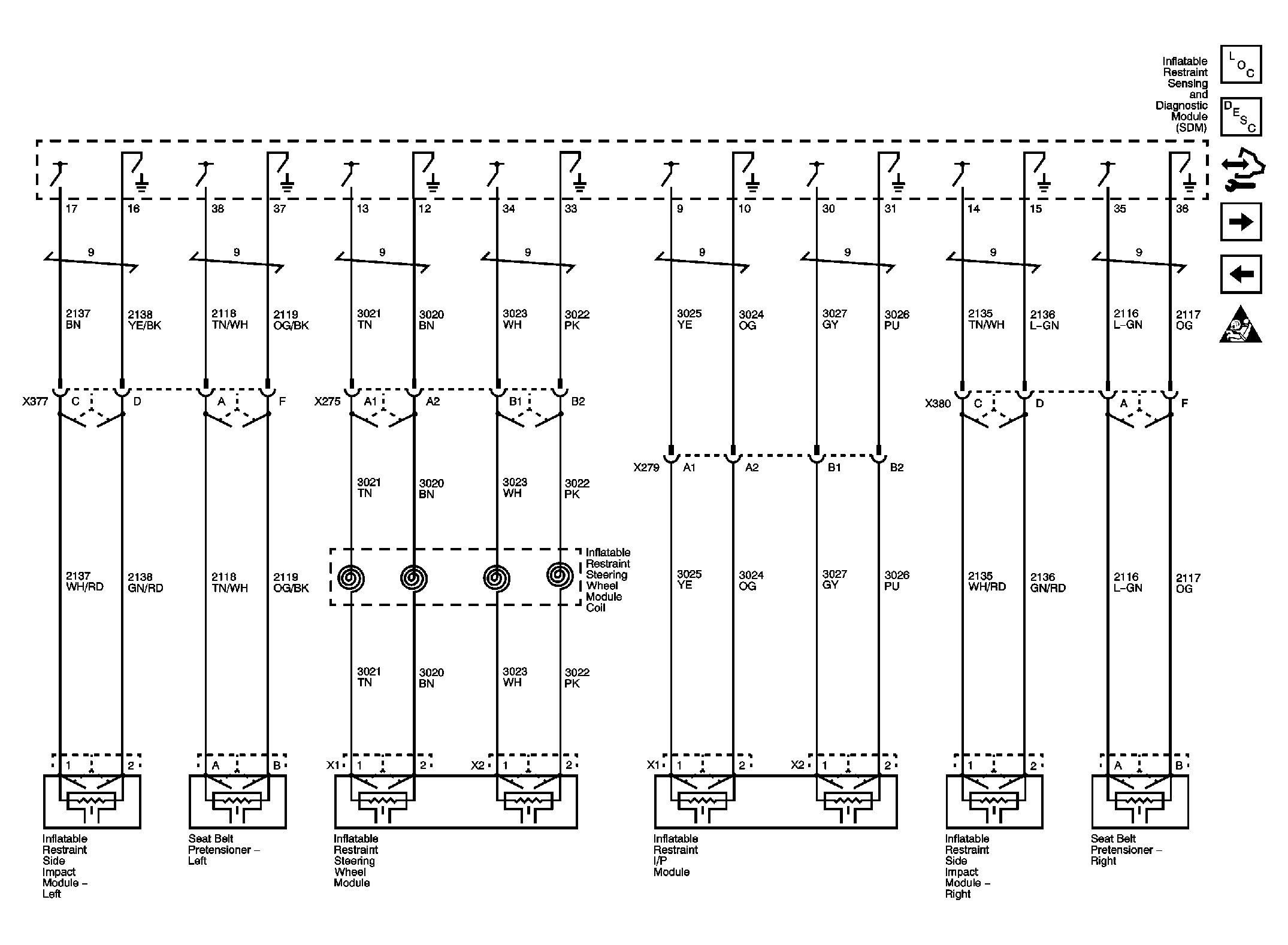

Fig 2: Deployment Loops
GM2225400Courtesy of GENERAL MOTORS CORP.

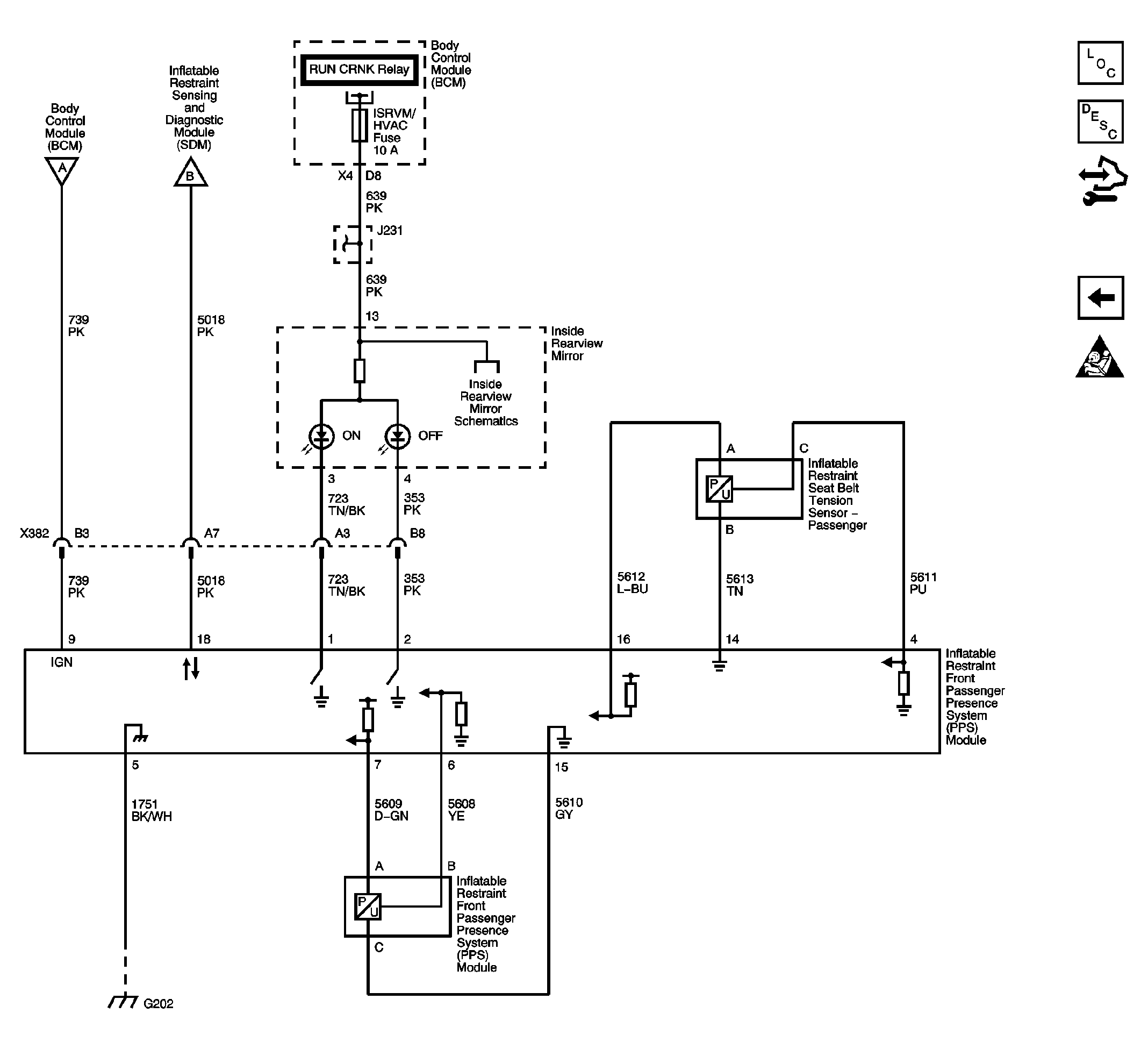

Fig 3: Passenger Presence System
GM2225406Courtesy of GENERAL MOTORS CORP.
