HVAC Schematics

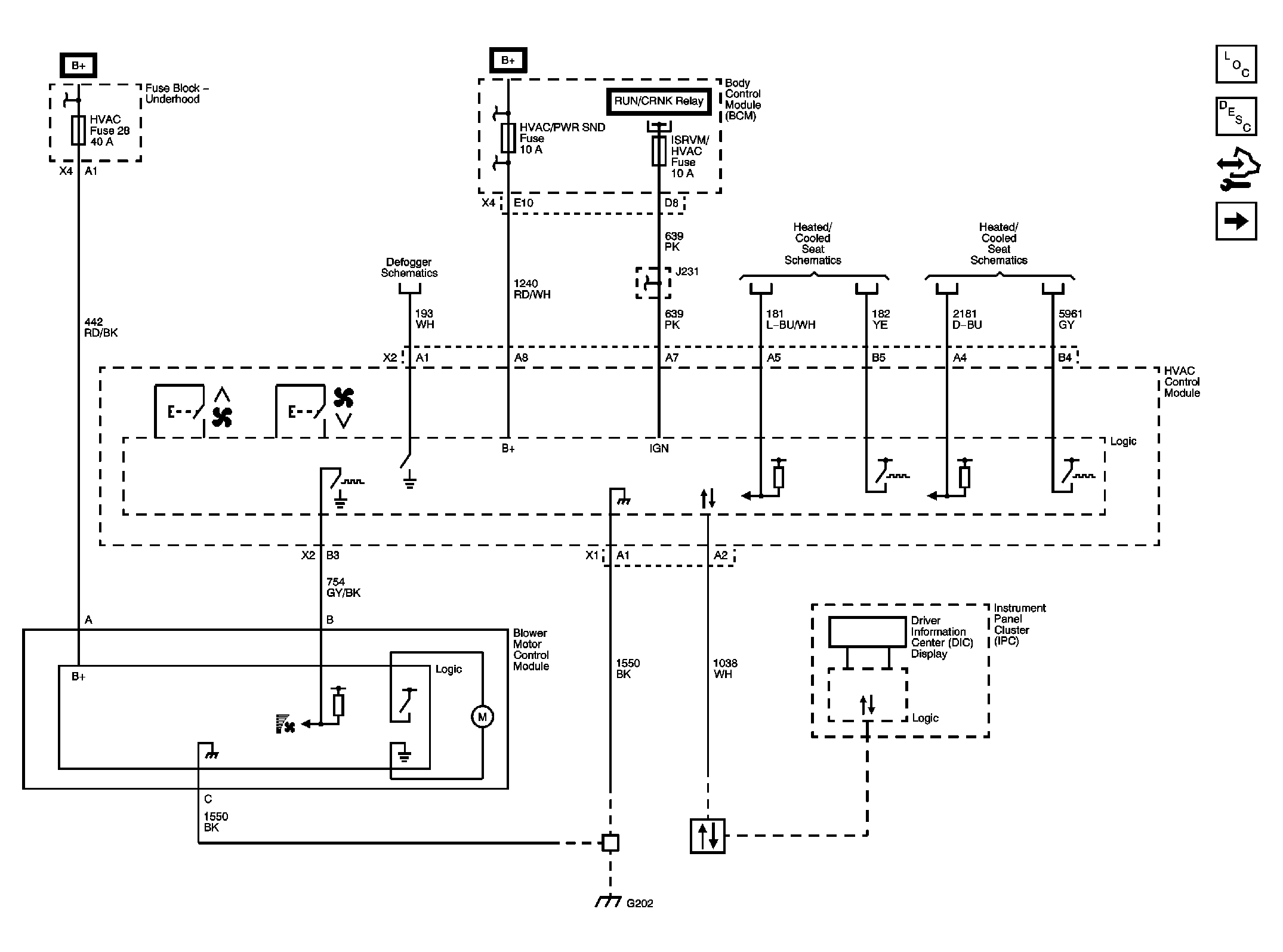

Fig 1: Power, Ground, Blower Motor Control, and Subsystem References
GM2225444Courtesy of GENERAL MOTORS CORP.

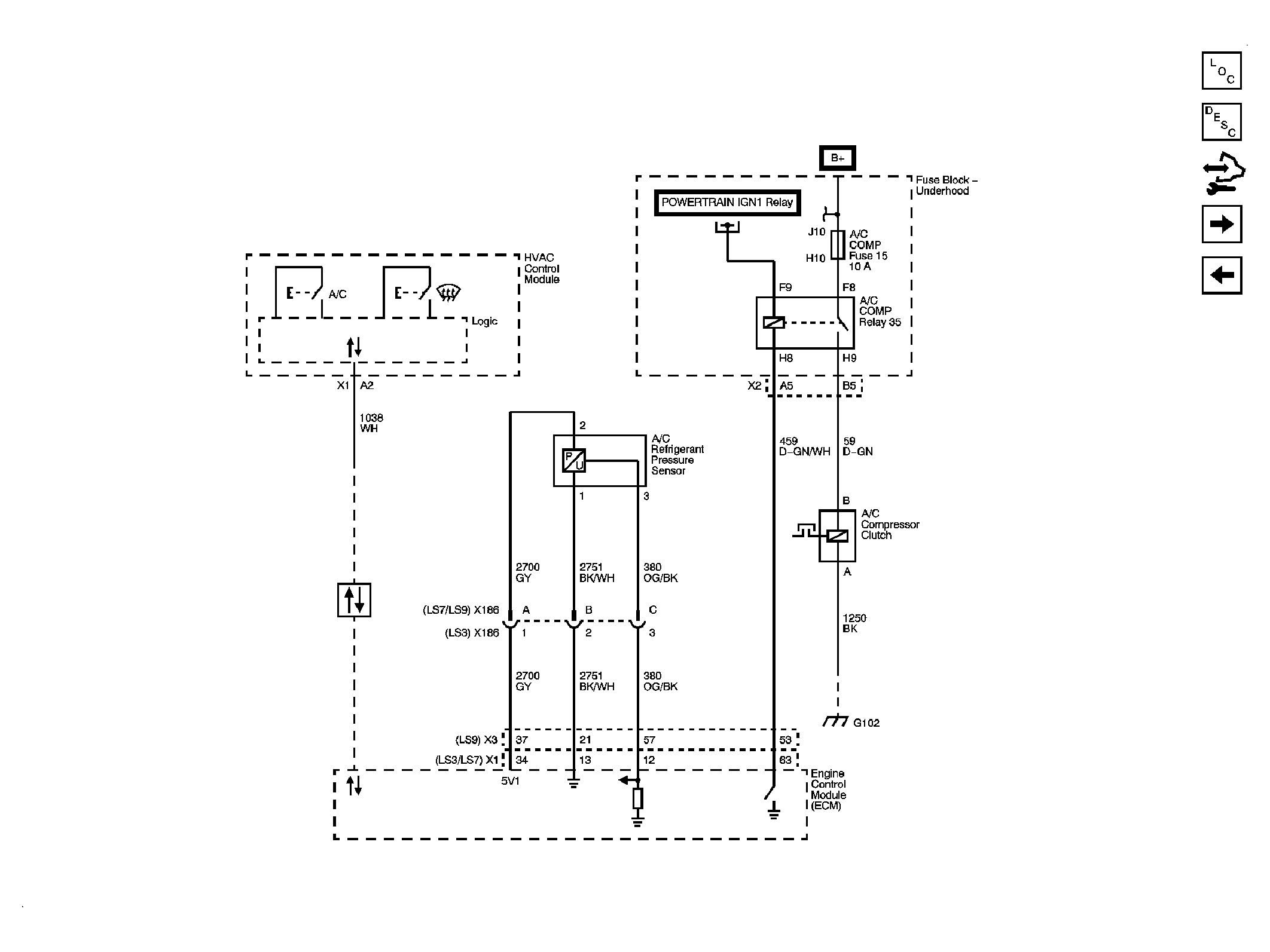

Fig 2: A/C Compressor Controls
GM2225445Courtesy of GENERAL MOTORS CORP.

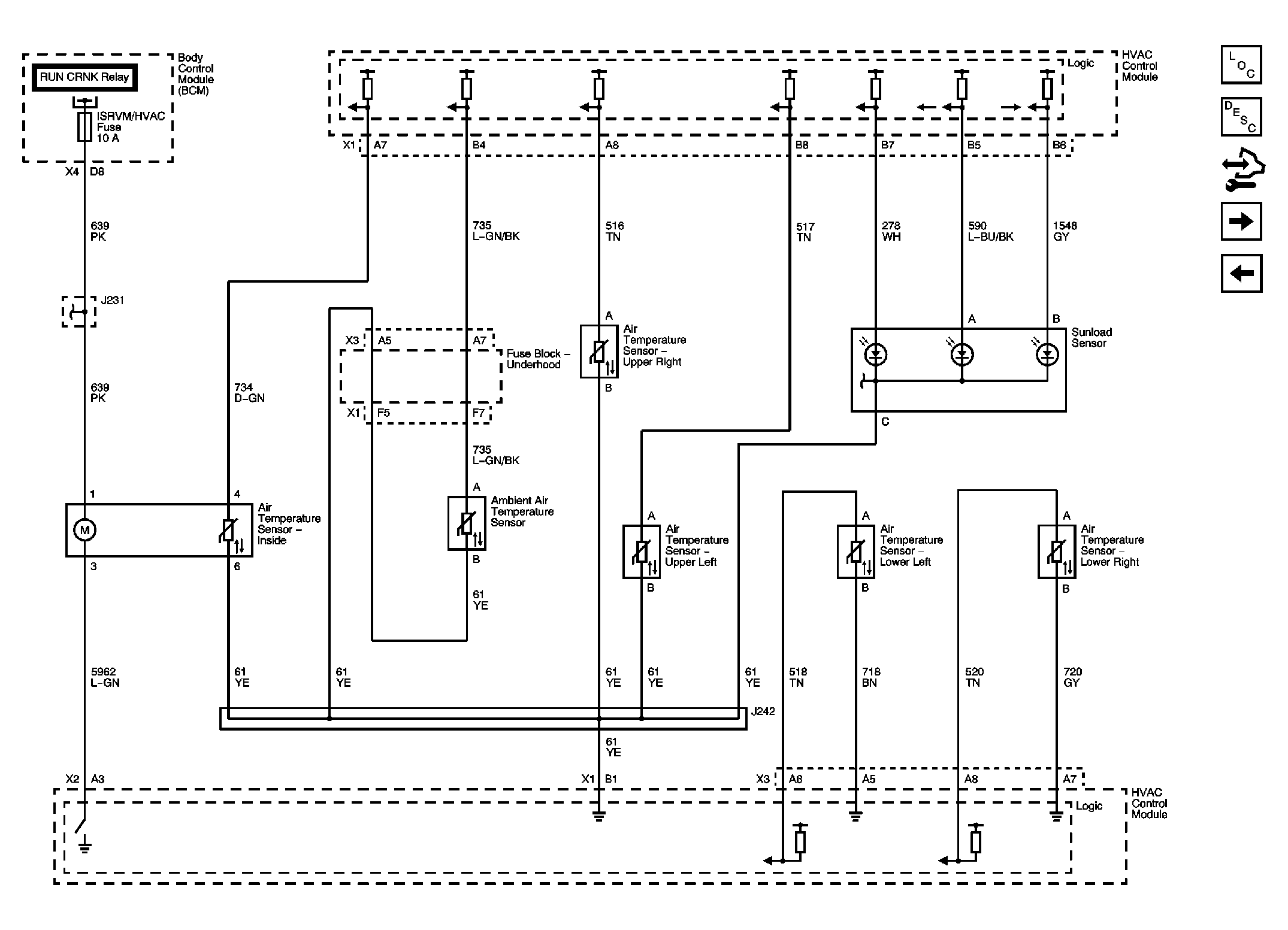

Fig 3: Air Temperature Sensors
GM2225446Courtesy of GENERAL MOTORS CORP.
Fig 4: Mode and Air Temperature Controls
GM2225447Courtesy of GENERAL MOTORS CORP.
