Engine Controls Schematics (LS9)

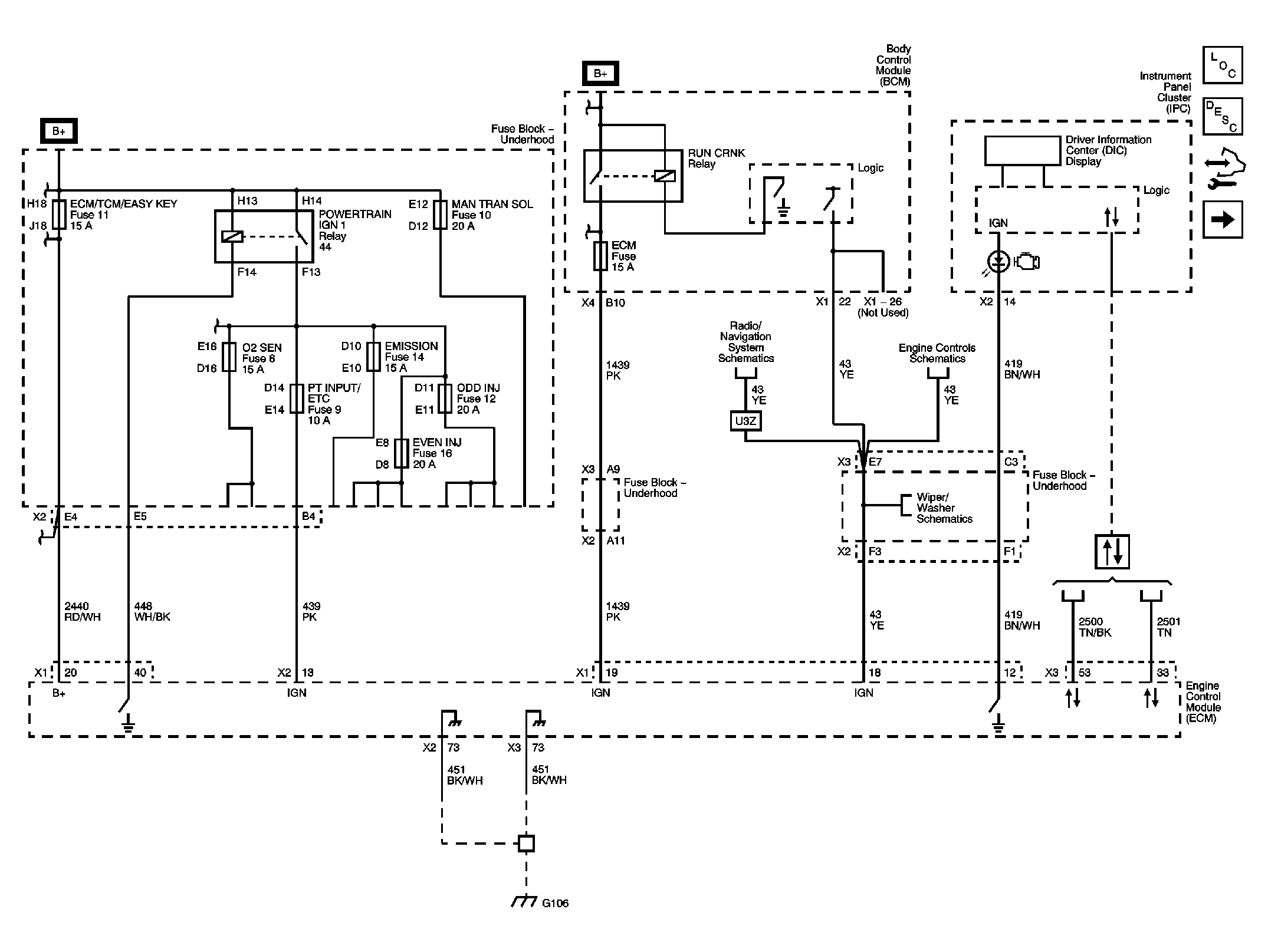

Fig 1: Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

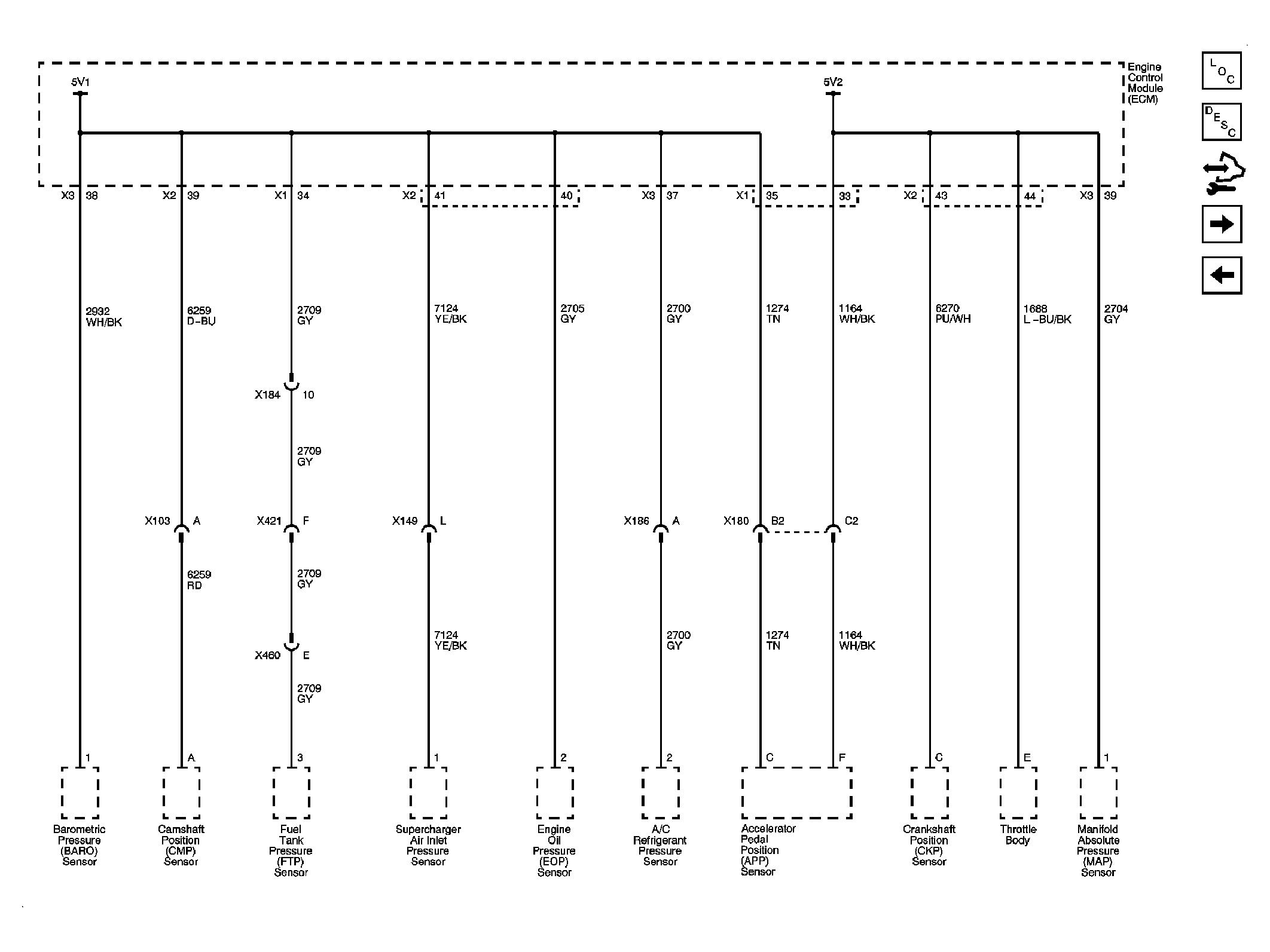

Fig 2: 5-Volt Reference Bus

Courtesy of GENERAL MOTORS CORP.

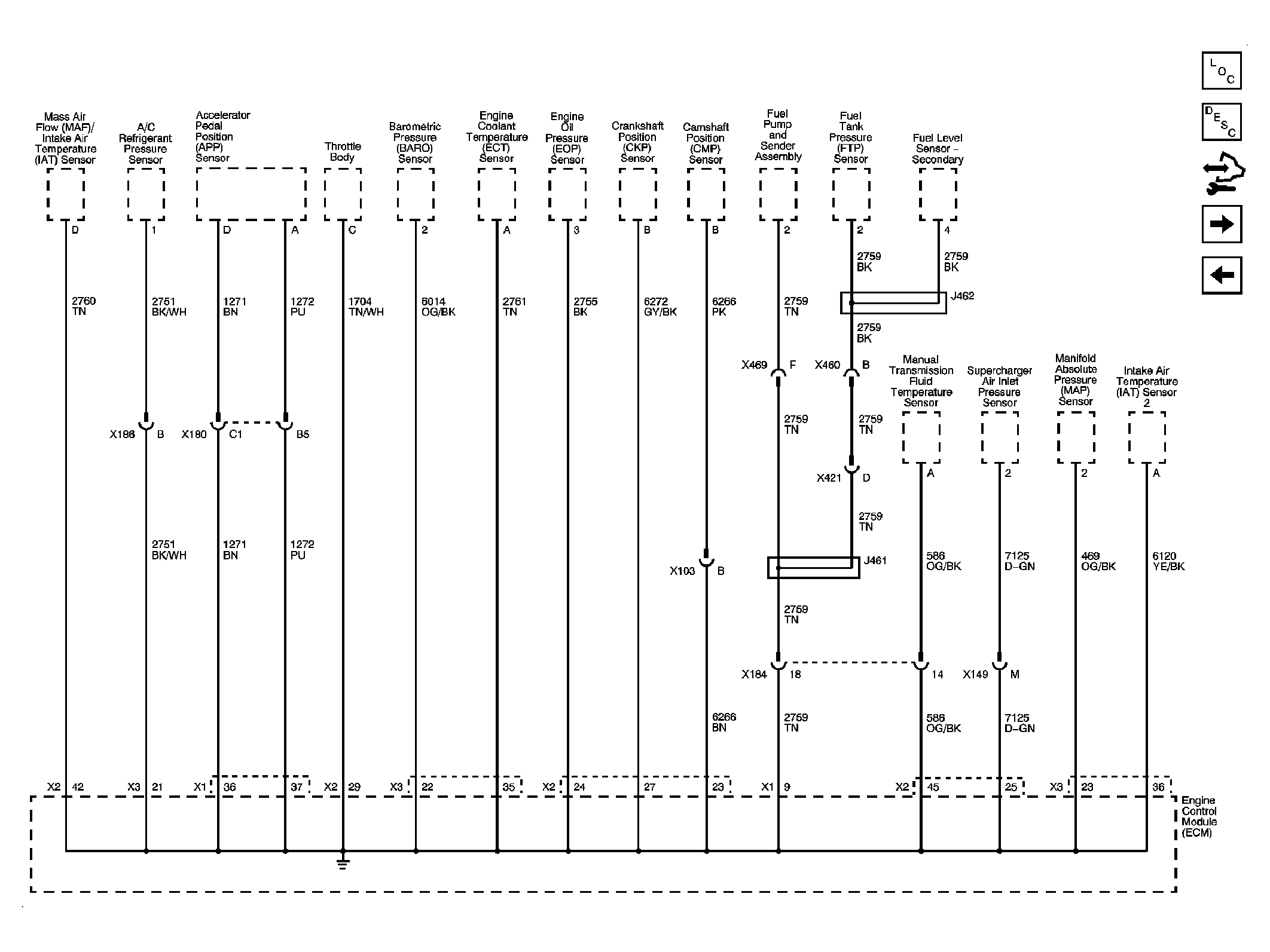

Fig 3: Low Reference Bus

Courtesy of GENERAL MOTORS CORP.

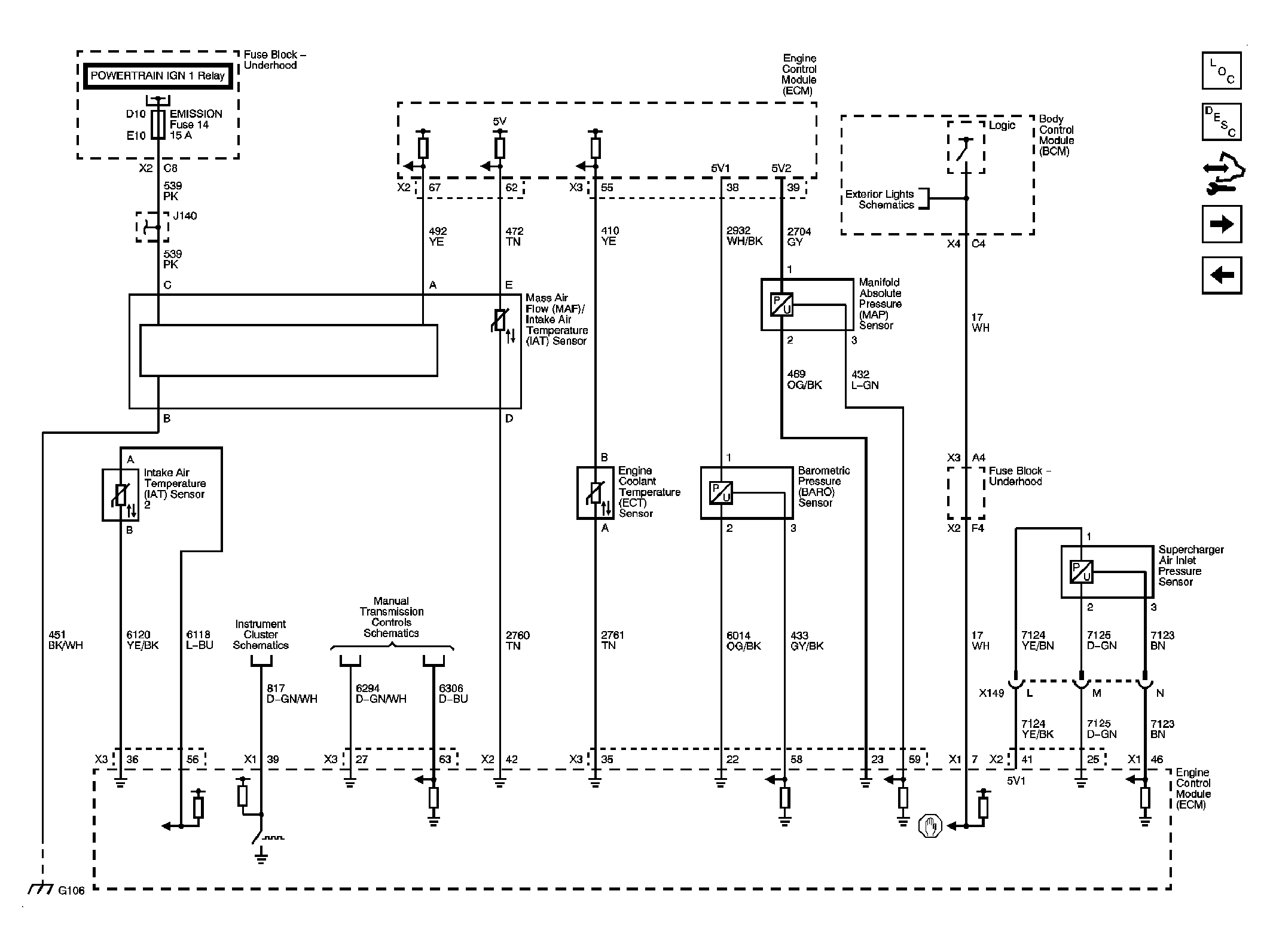

Fig 4: ECT, MAF/IAT, MAP, and Supercharger Air Inlet and Air Outlet Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 6: Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

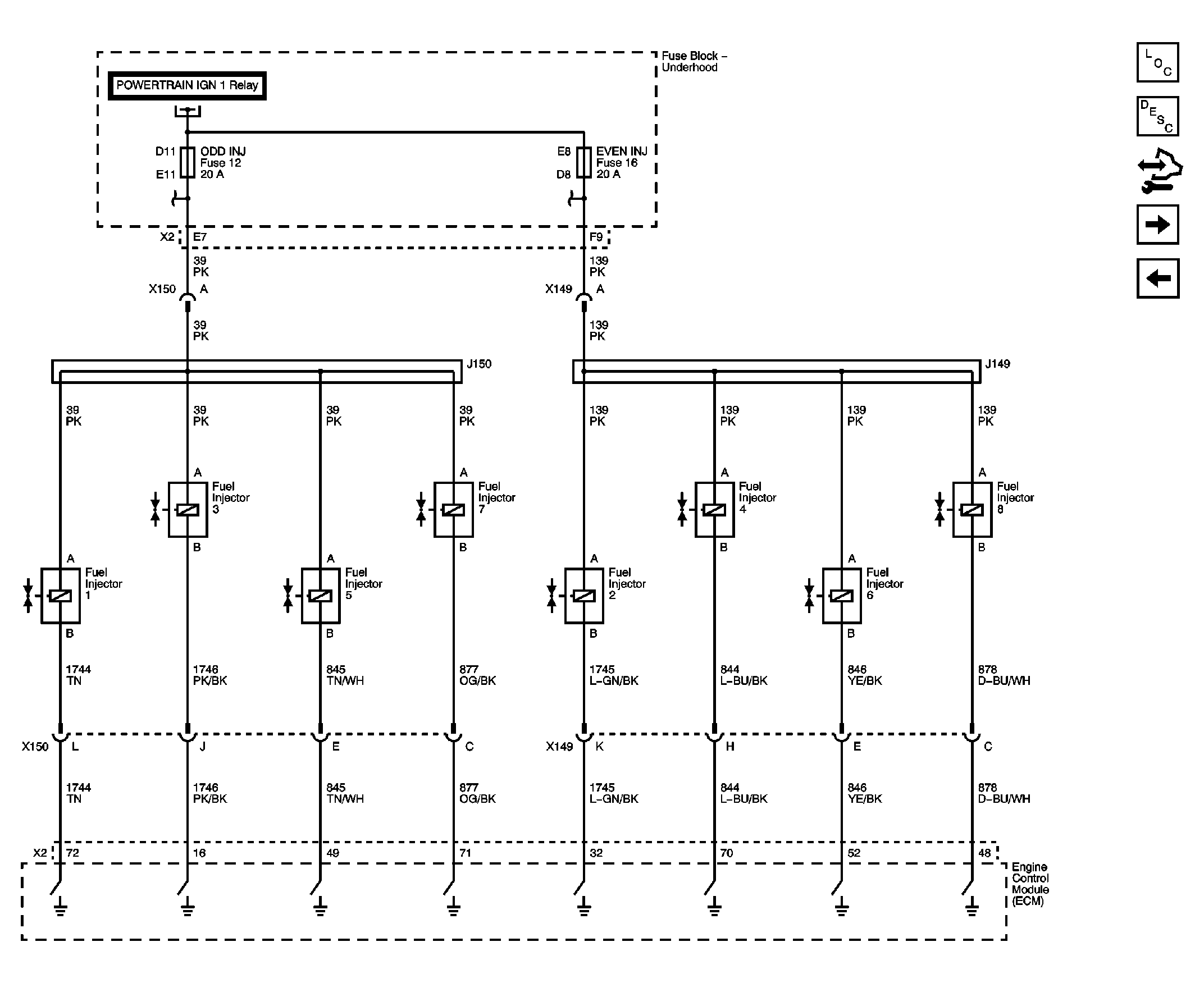

Fig 7: Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

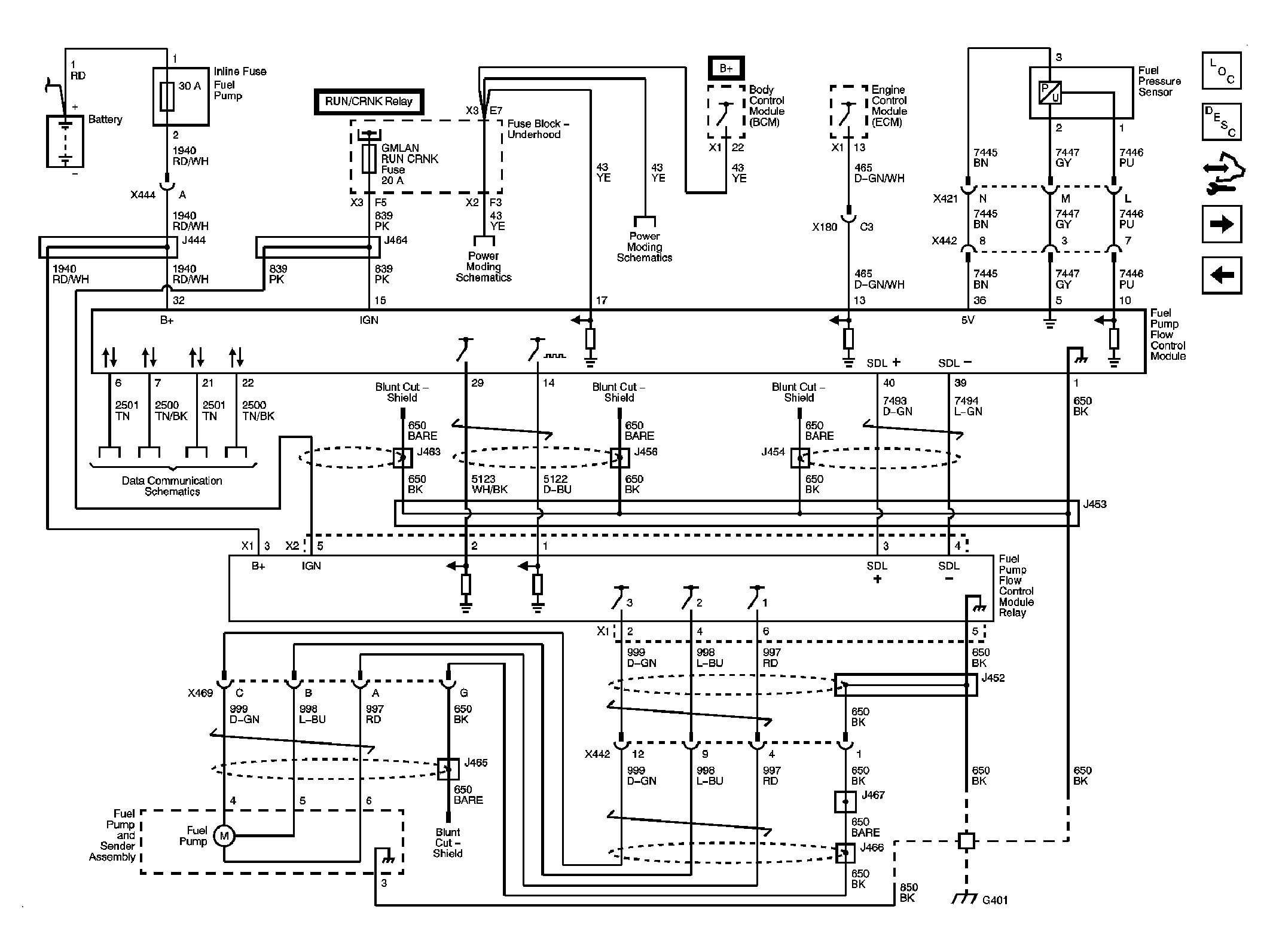

Fig 8: Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

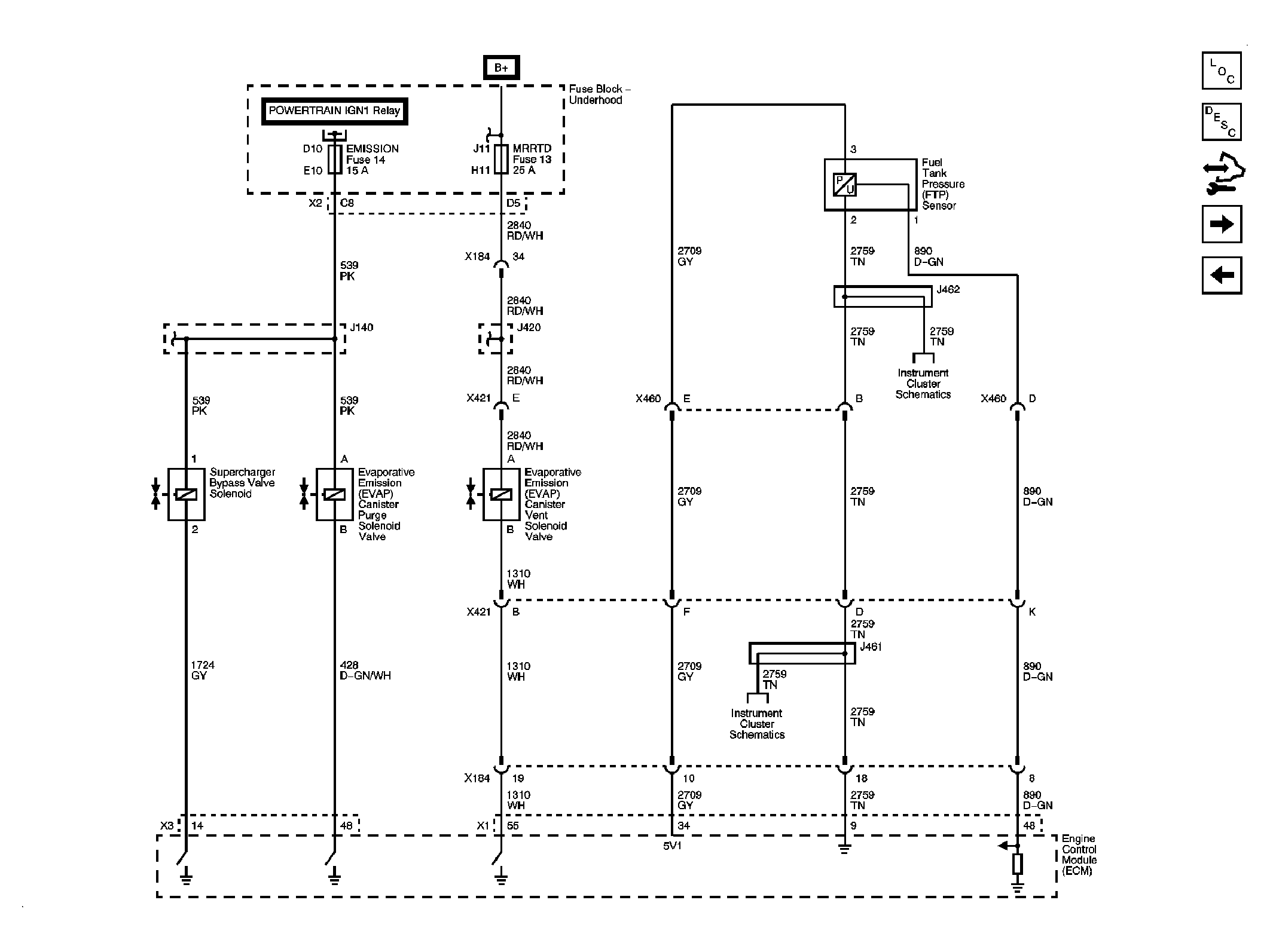

Fig 9: FTP Sensor, and EVAP and Supercharger Bypass Valve Solenoids

Courtesy of GENERAL MOTORS CORP.

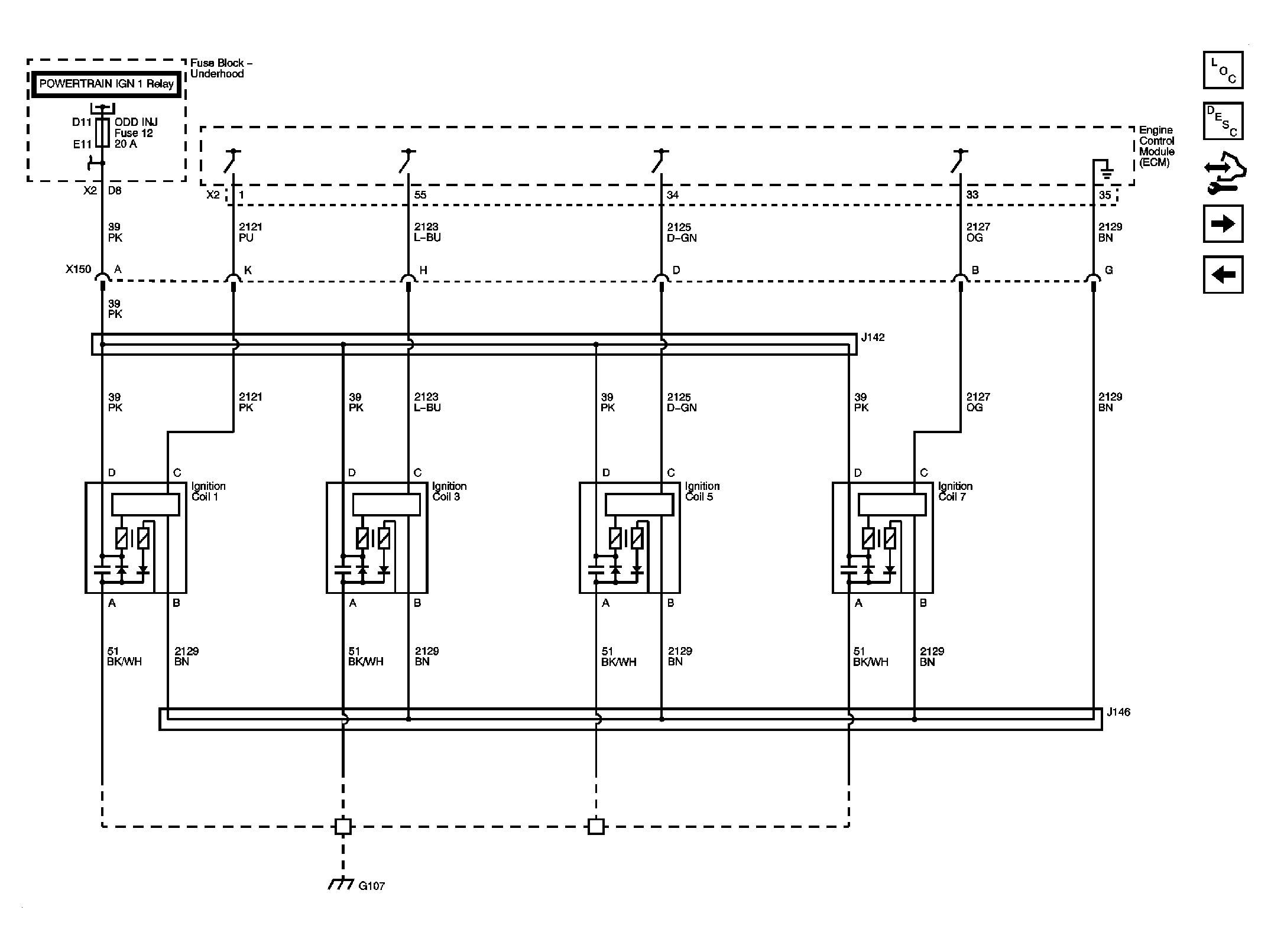

Fig 10: Ignition Controls Bank 1 (Odd) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

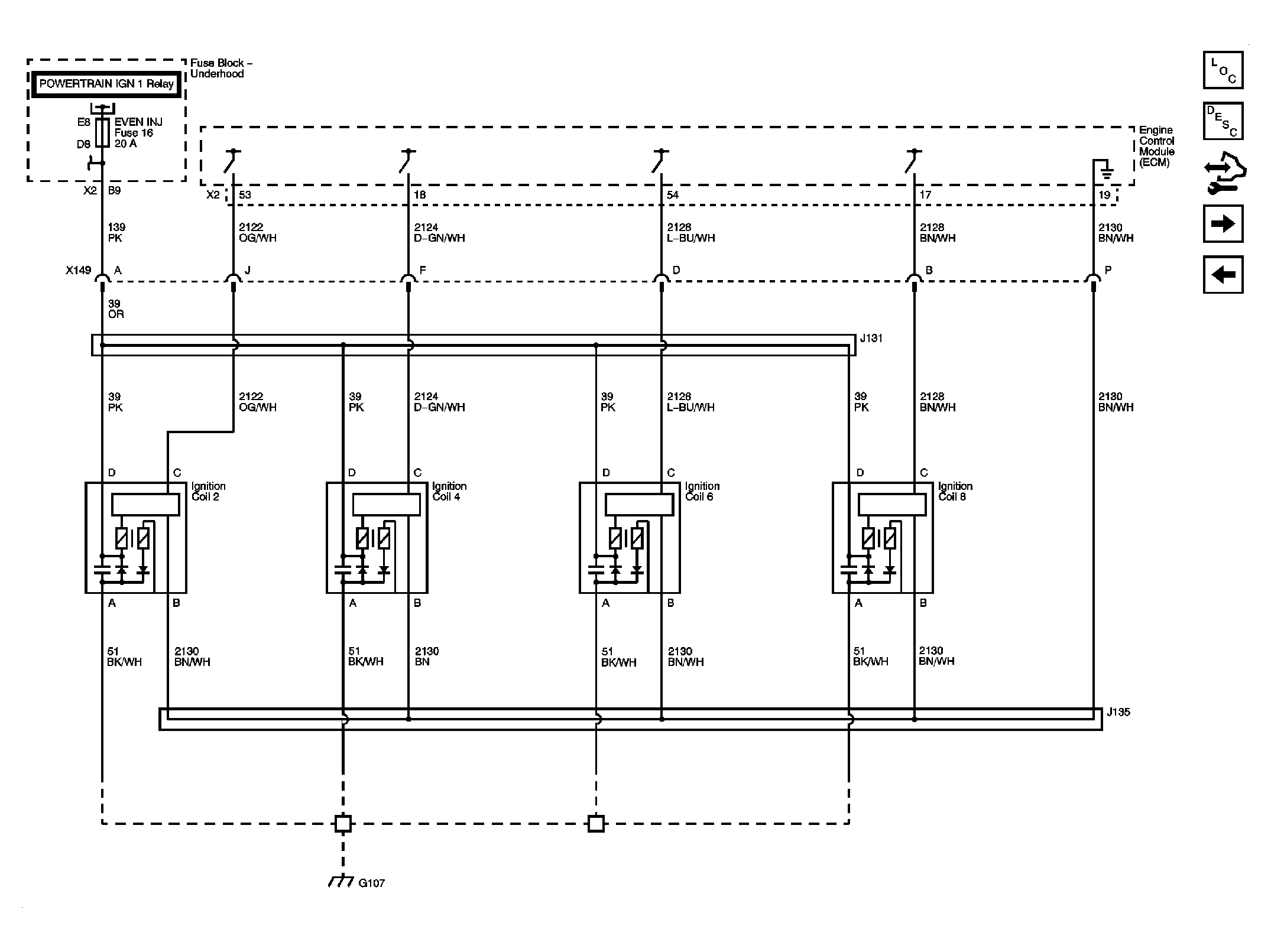

Fig 11: Ignition Controls Bank 2 (Even) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Fig 12: Ignition Controls - CMP, CKP, and KS Sensors

Courtesy of GENERAL MOTORS CORP.

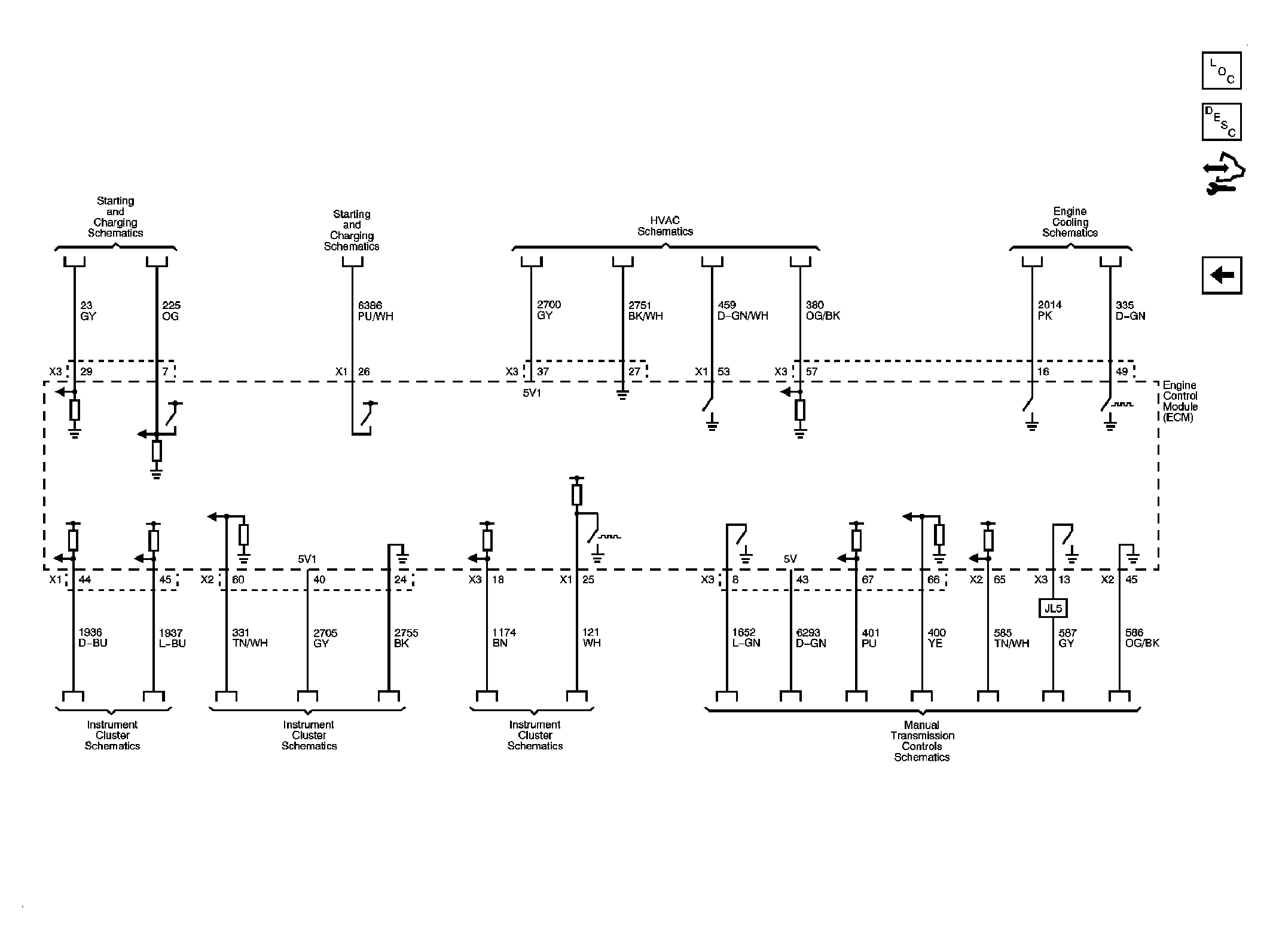

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
