Engine Controls Schematics (LS7)

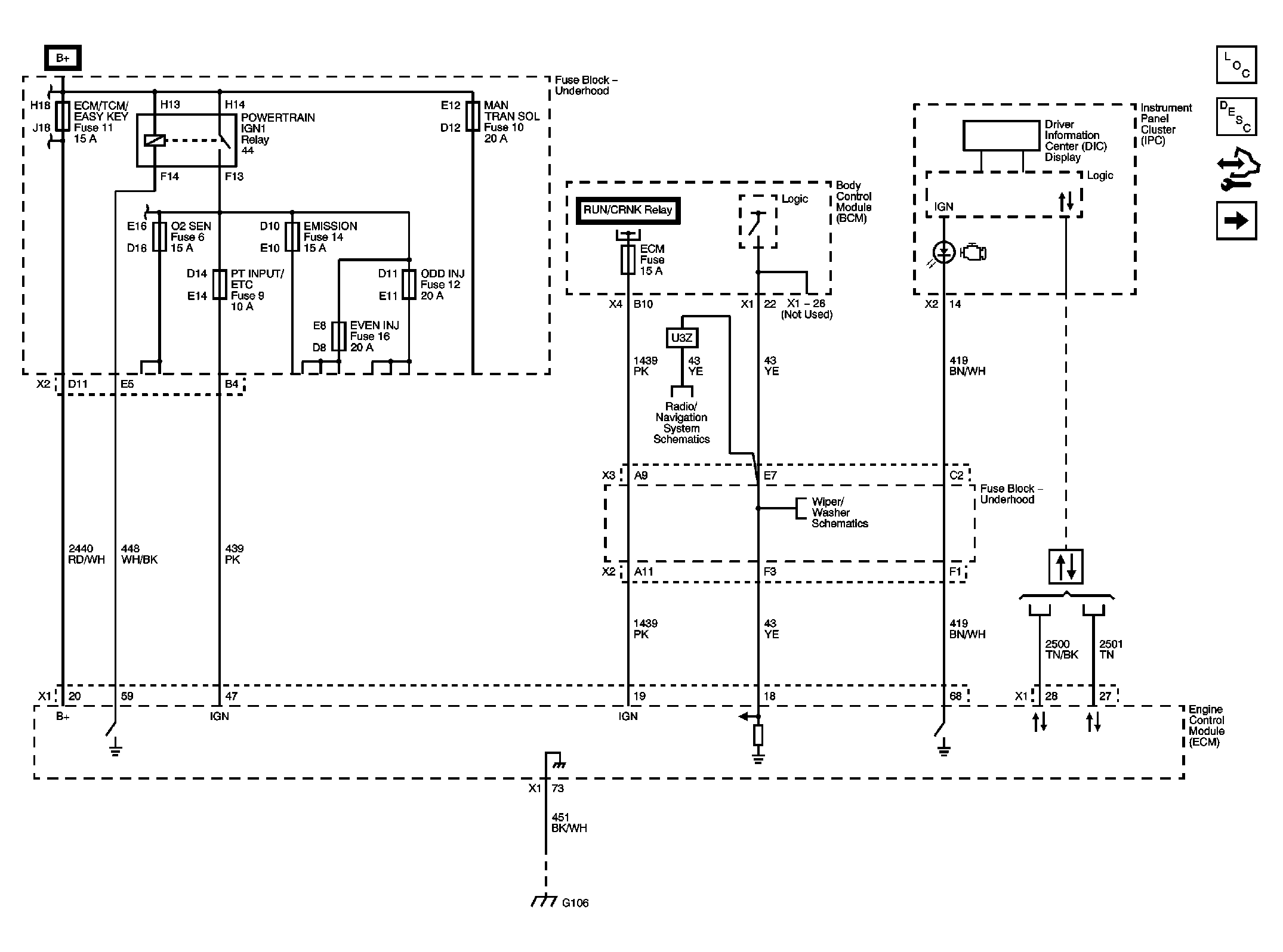

Fig 1: Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

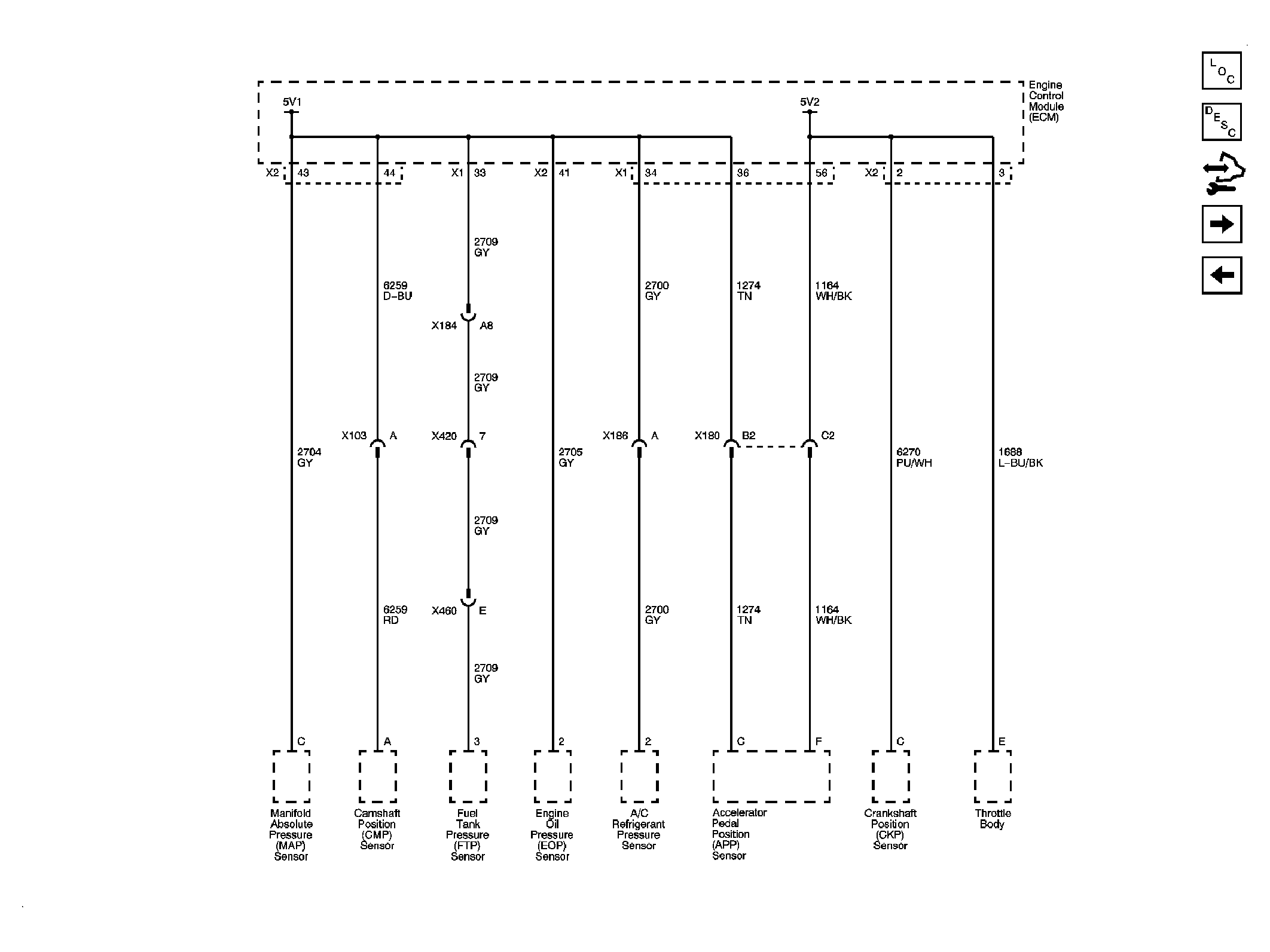

Fig 2: 5-Volt Reference Bus

Courtesy of GENERAL MOTORS CORP.

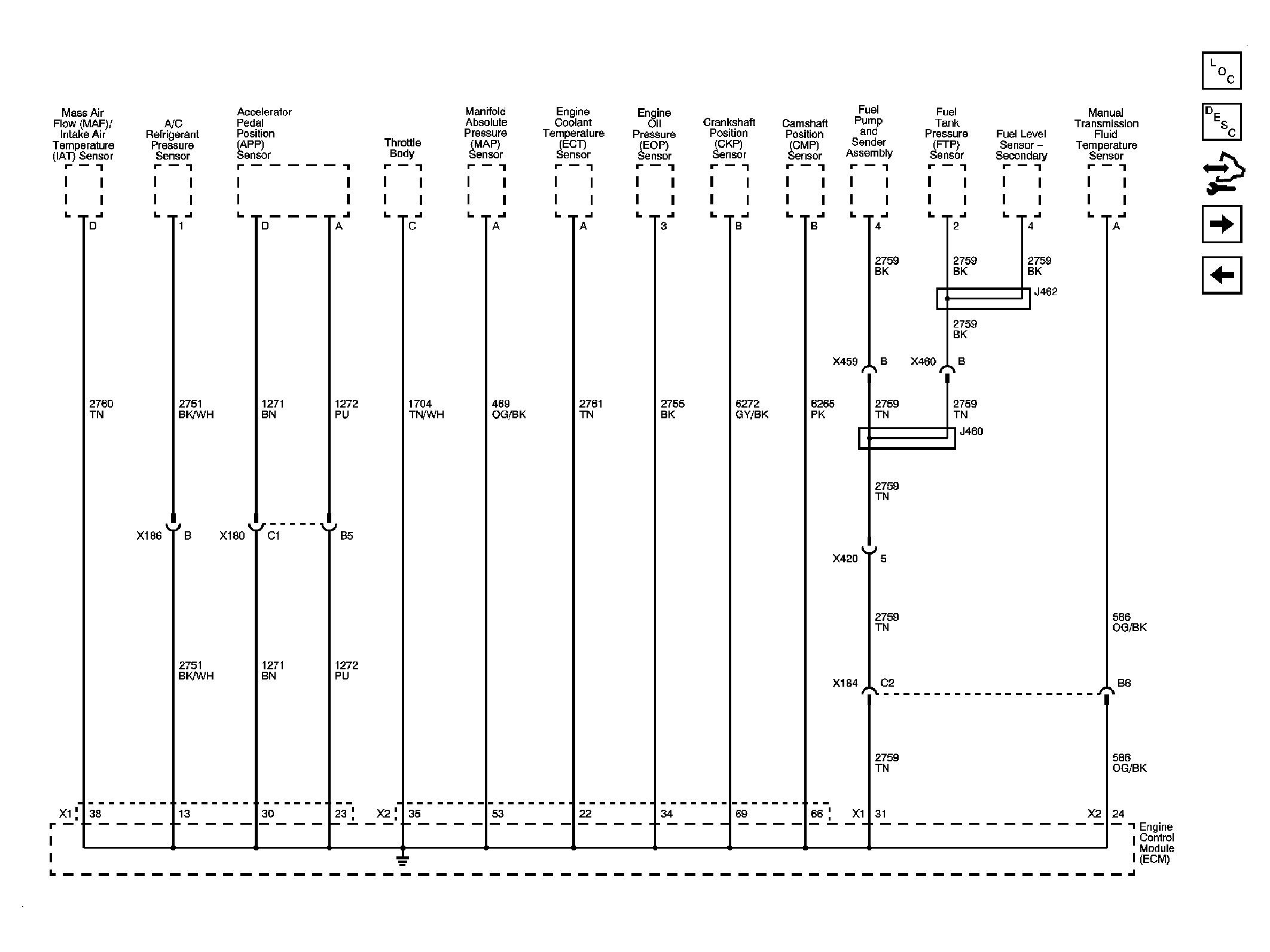

Fig 3: Low Reference Bus

Courtesy of GENERAL MOTORS CORP.

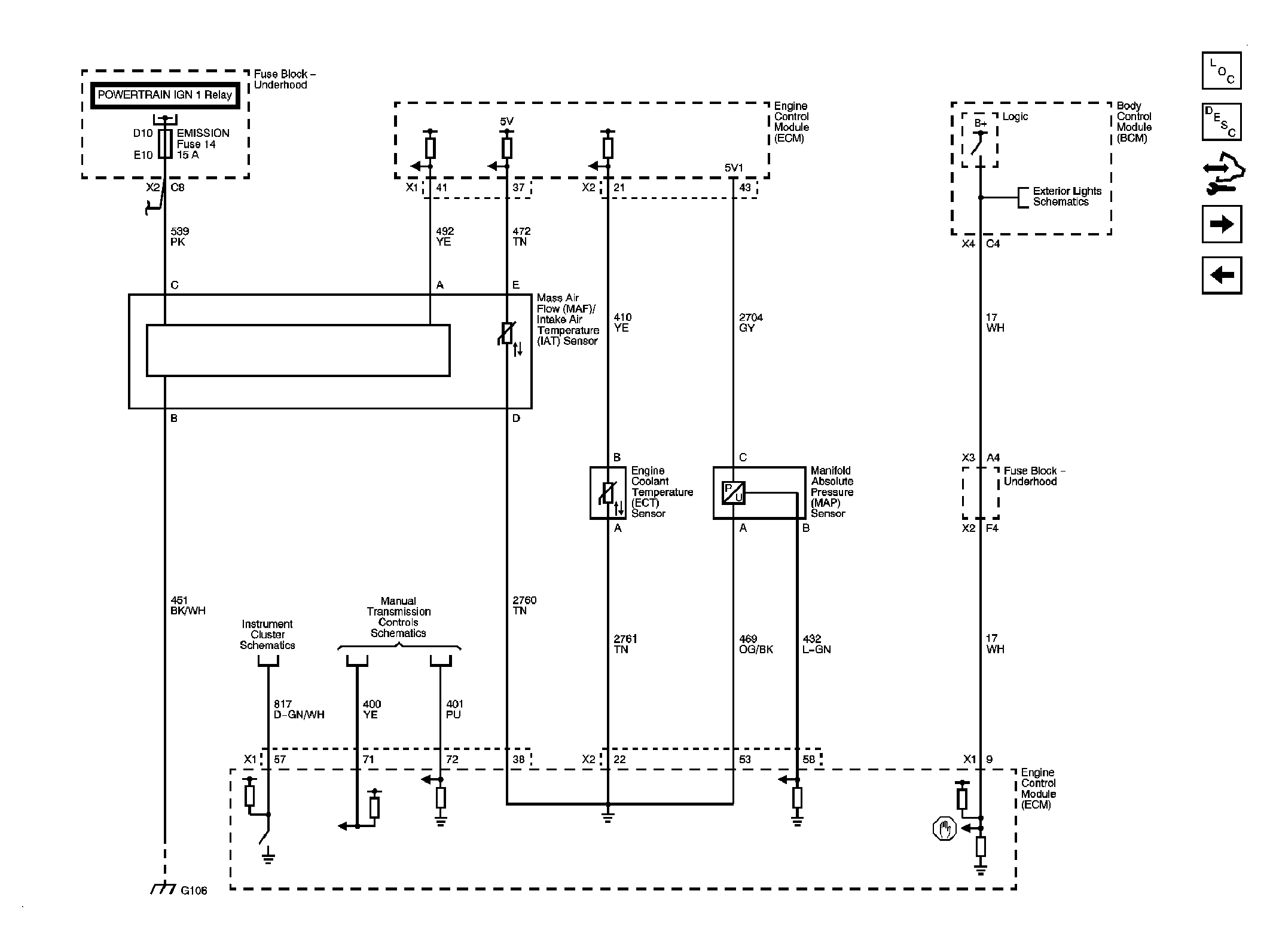

Fig 4: Stop Lamp Signals, and ECT, MAF/IAT, MAP, and Vehicle Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 5: Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 6: Electronic Throttle Sensors

Courtesy of GENERAL MOTORS CORP.

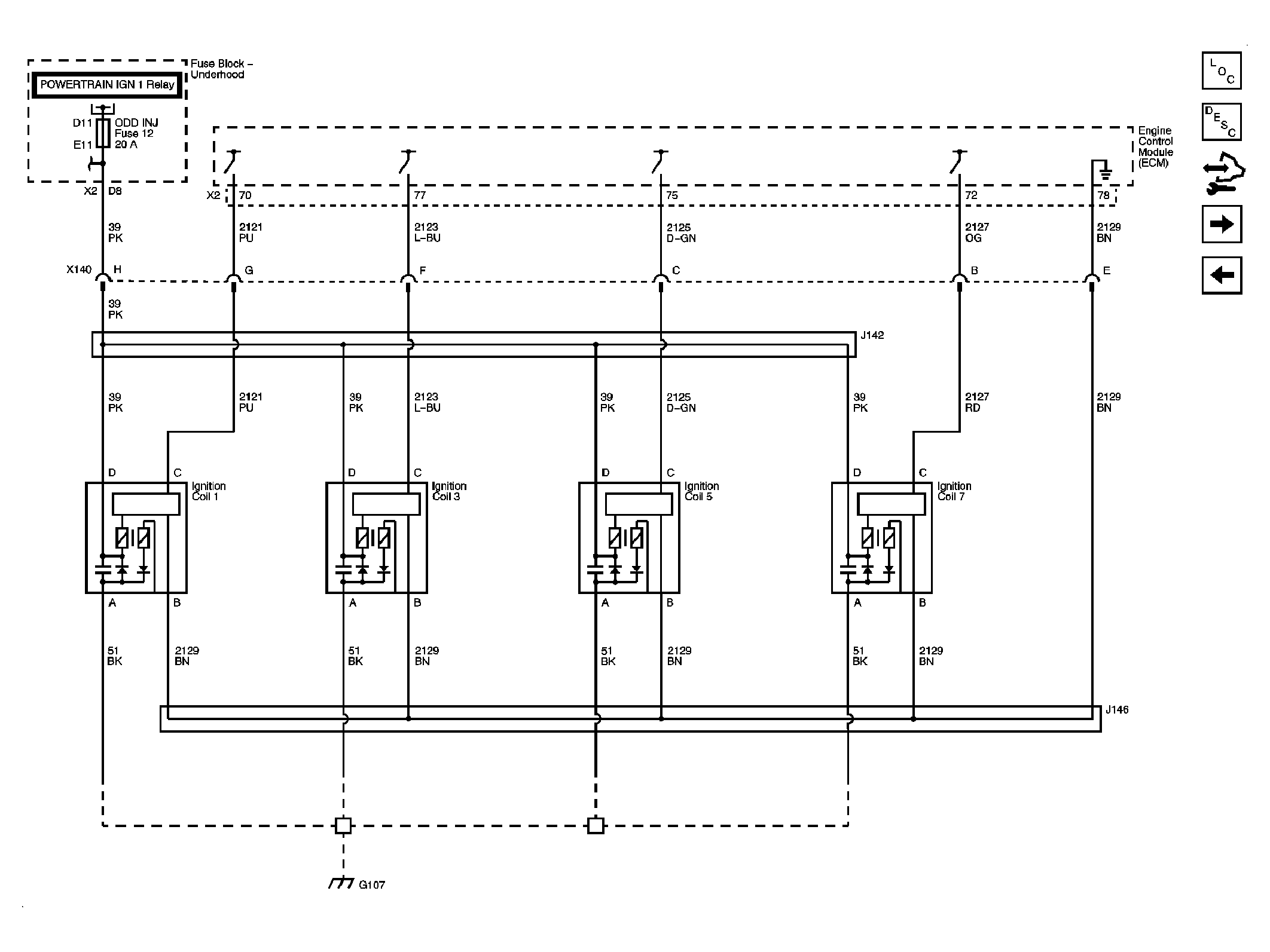

Fig 7: Ignition Controls Bank 1 (Odd) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

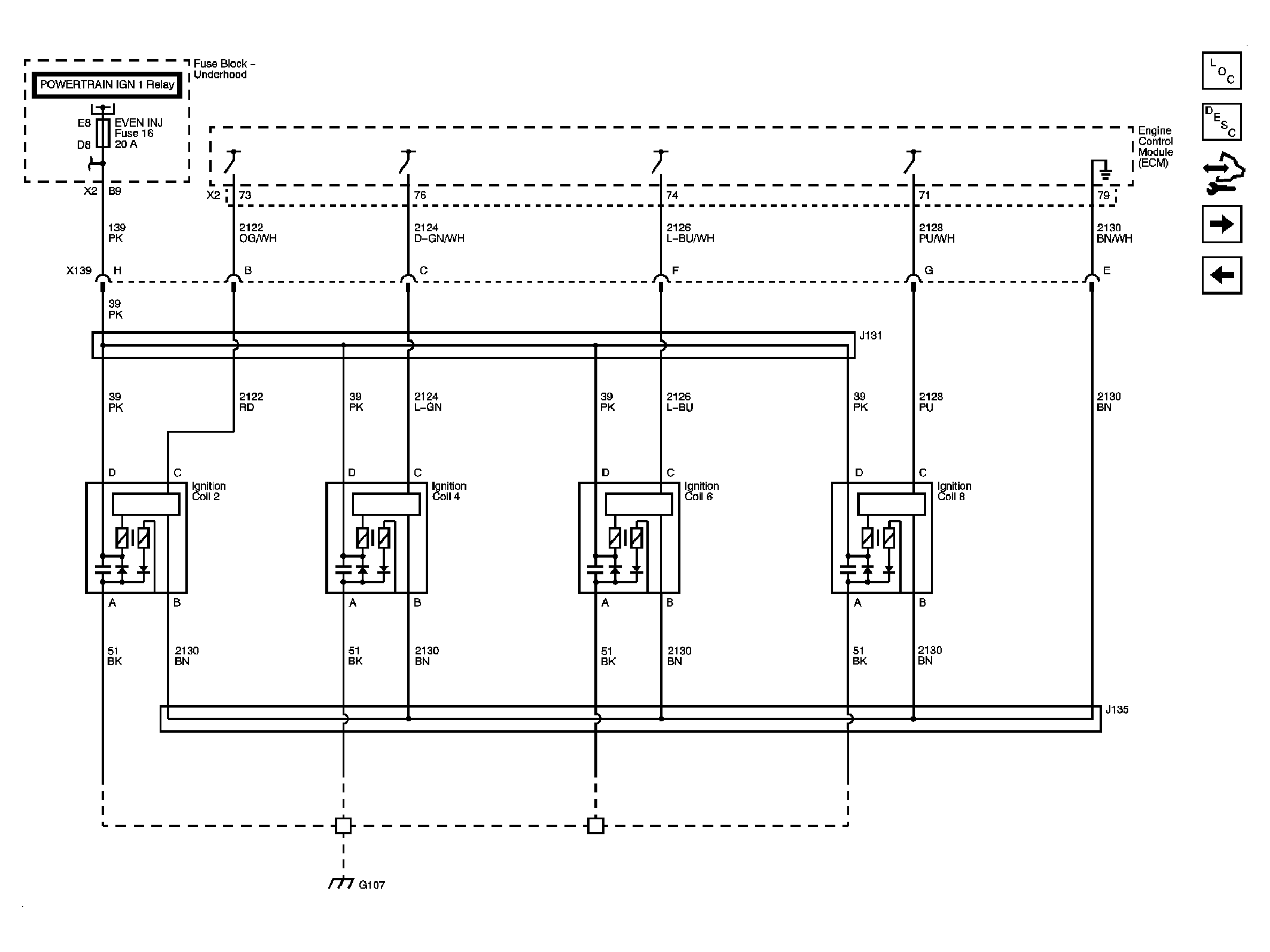

Fig 8: Ignition Controls Bank 2 (Even) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - CMP, CKP, and KS Sensors

Courtesy of GENERAL MOTORS CORP.

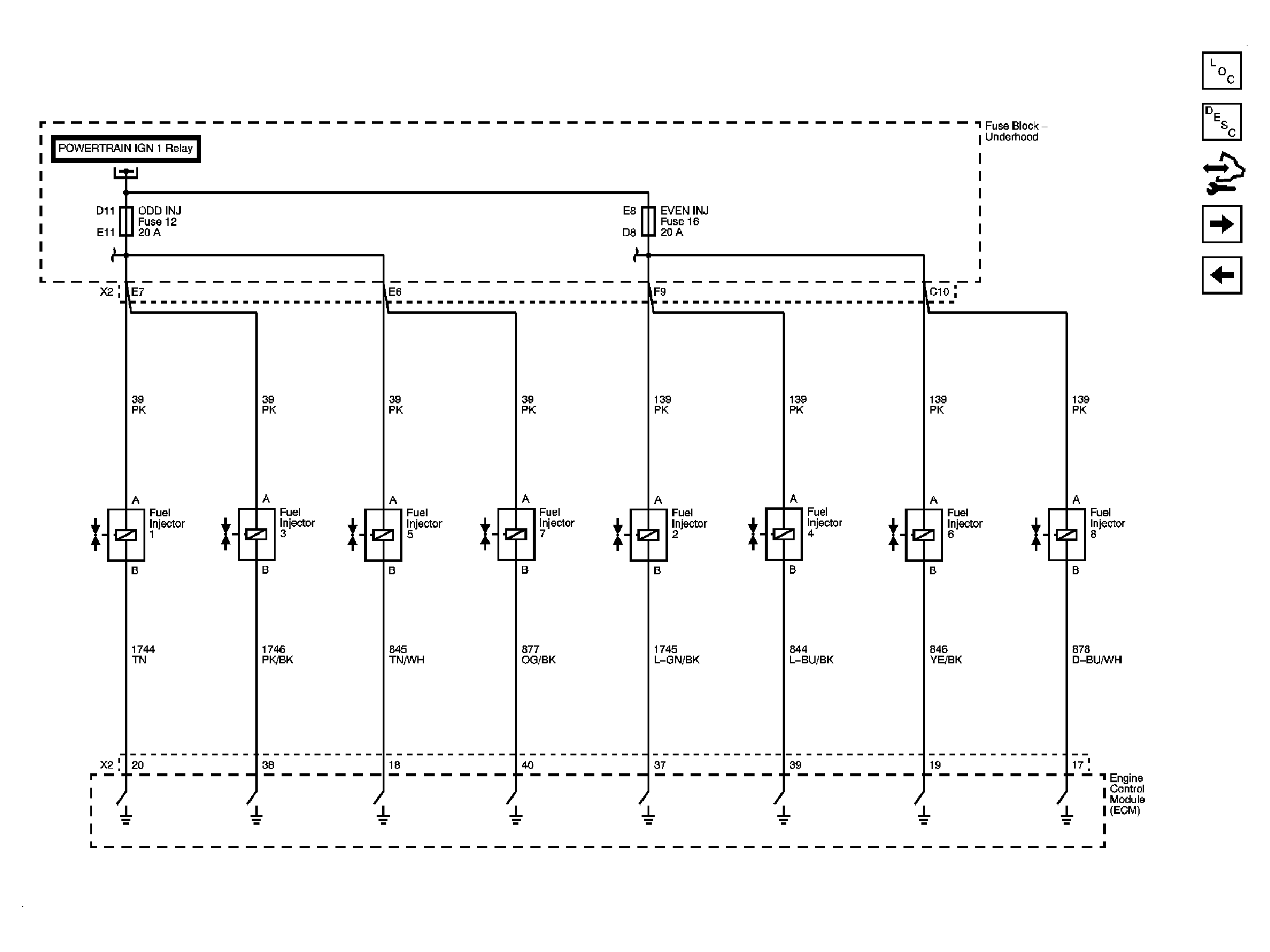

Fig 10: Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

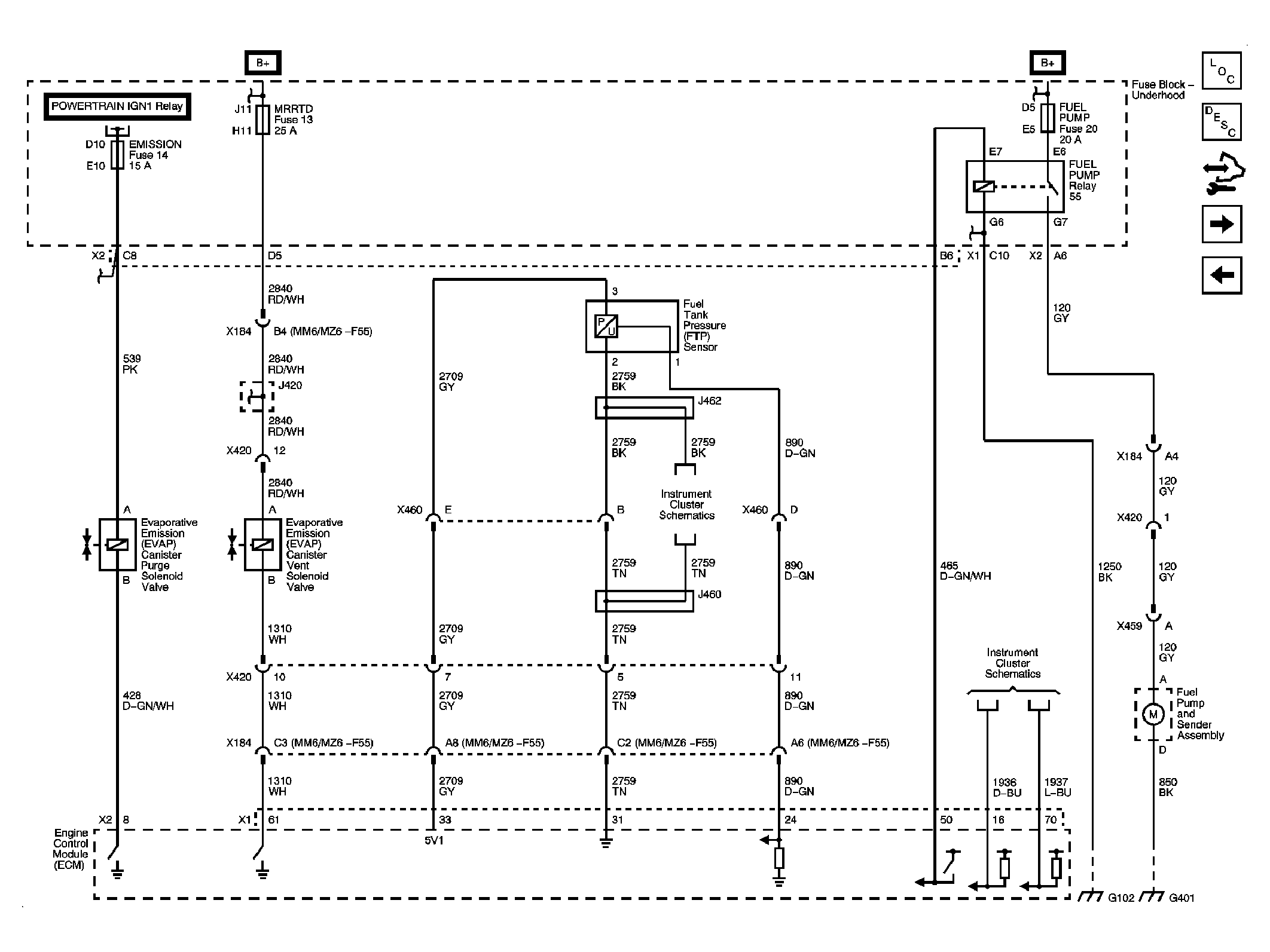

Fig 11: EVAP Solenoids, FTP Sensor, and Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
