Instrument Cluster Schematics

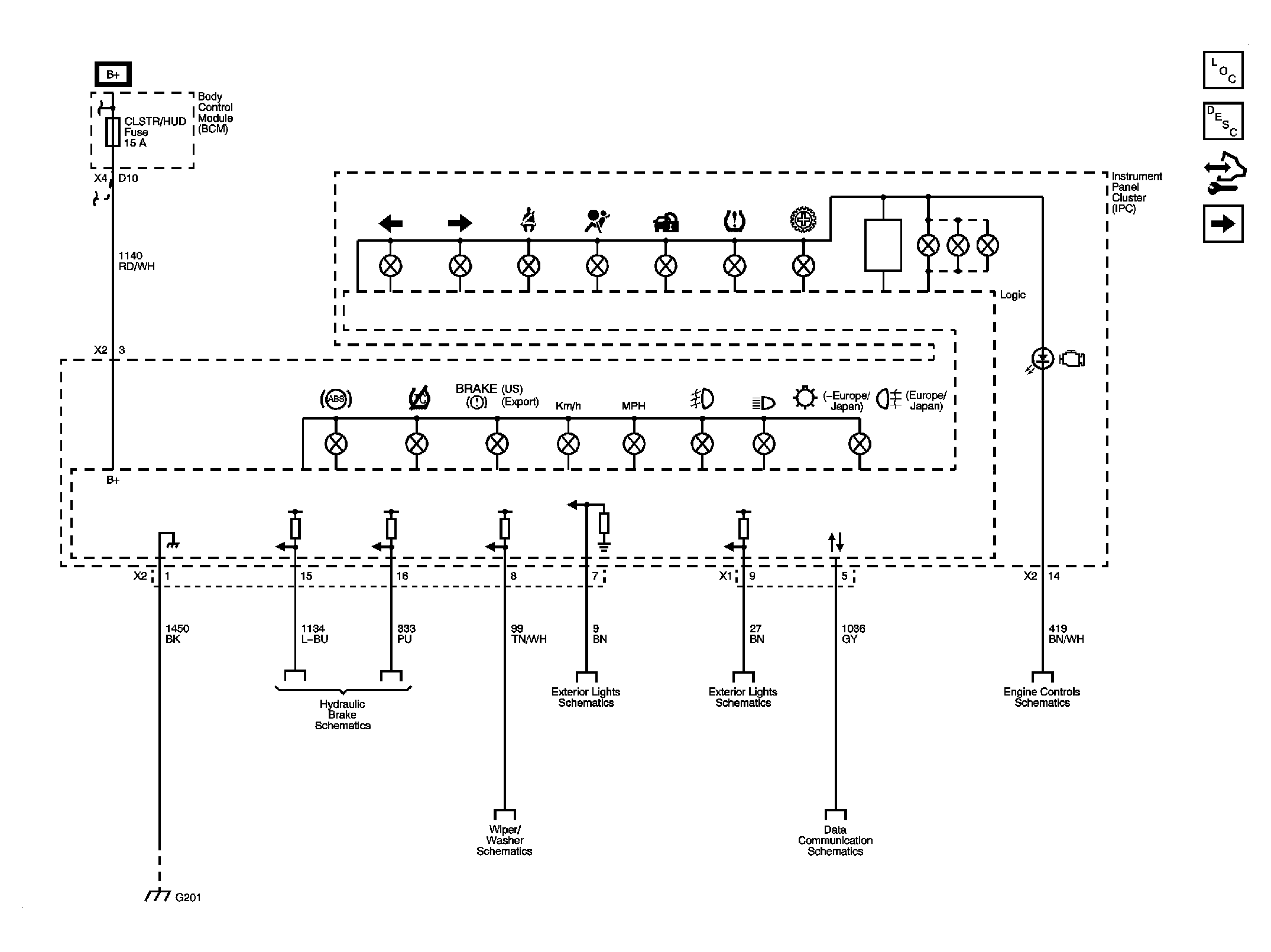

Fig 1: Power, Ground, Indicators, and Serial Data
GM2225364Courtesy of GENERAL MOTORS CORP.

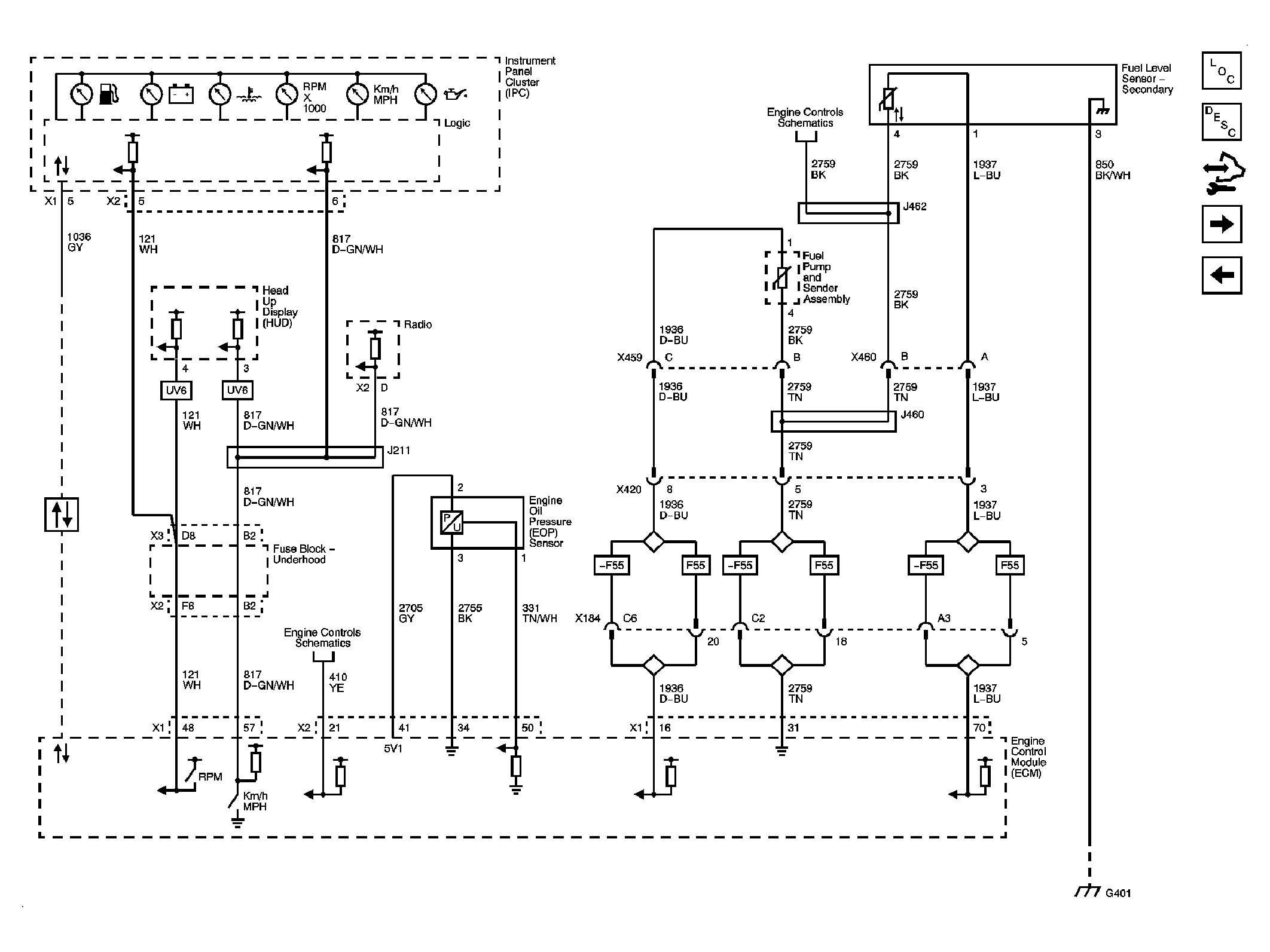

Fig 2: Gauges (LS3/LS7)
GM2225370Courtesy of GENERAL MOTORS CORP.

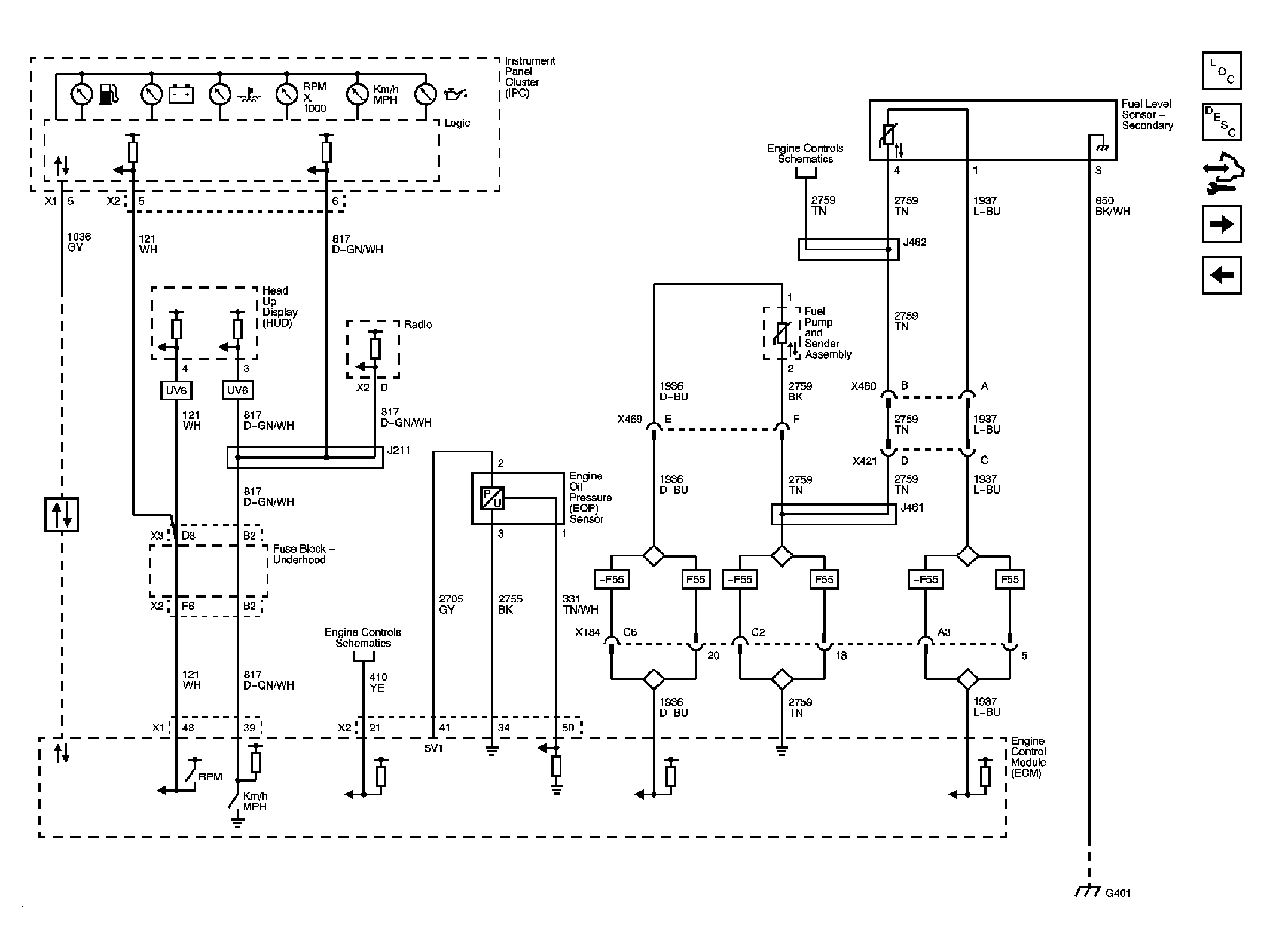

Fig 3: Gauges (LS9)
GM2225373Courtesy of GENERAL MOTORS CORP.

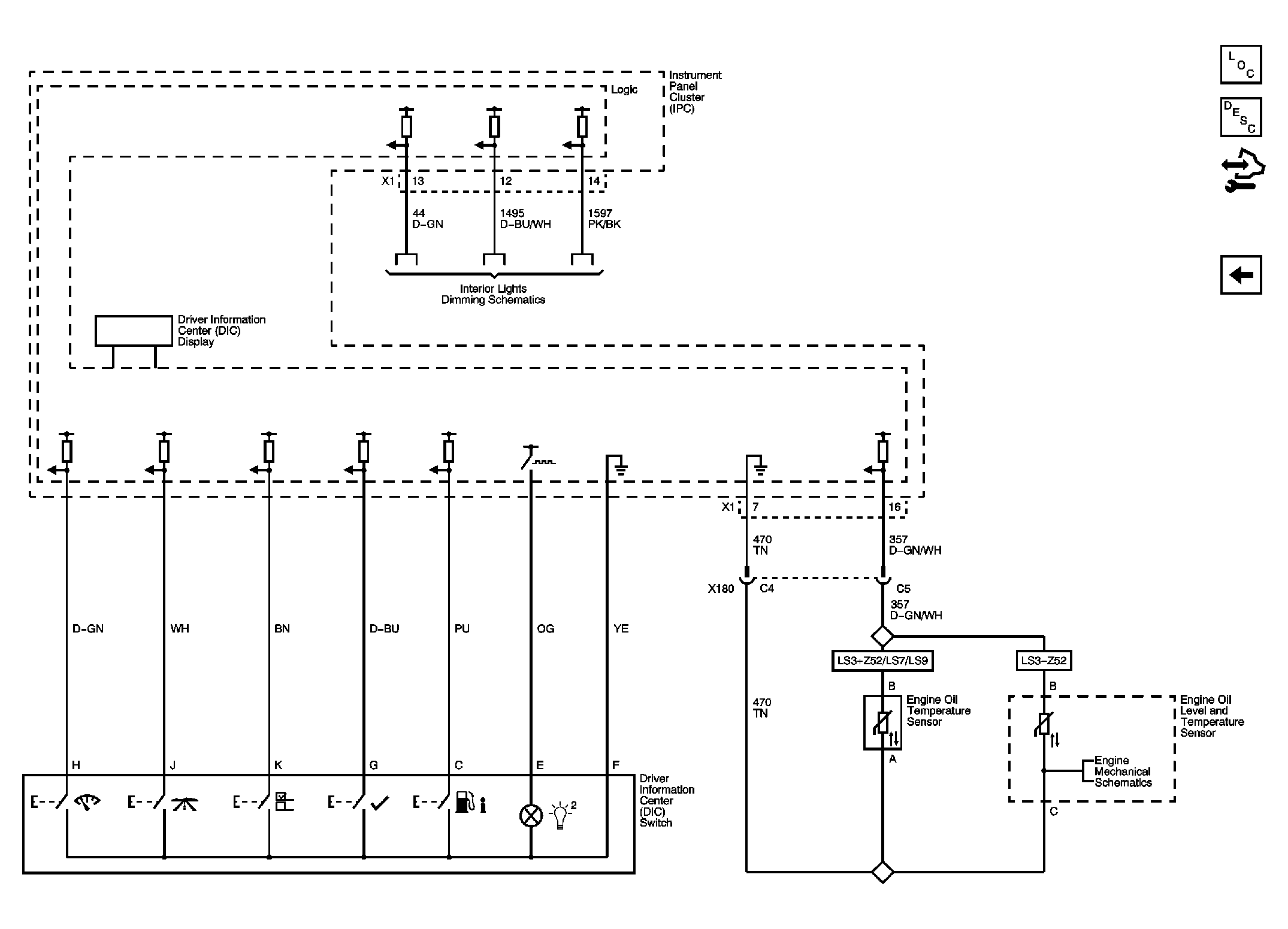

Fig 4: Messages
GM2225374Courtesy of GENERAL MOTORS CORP.
