Folding Top Schematics

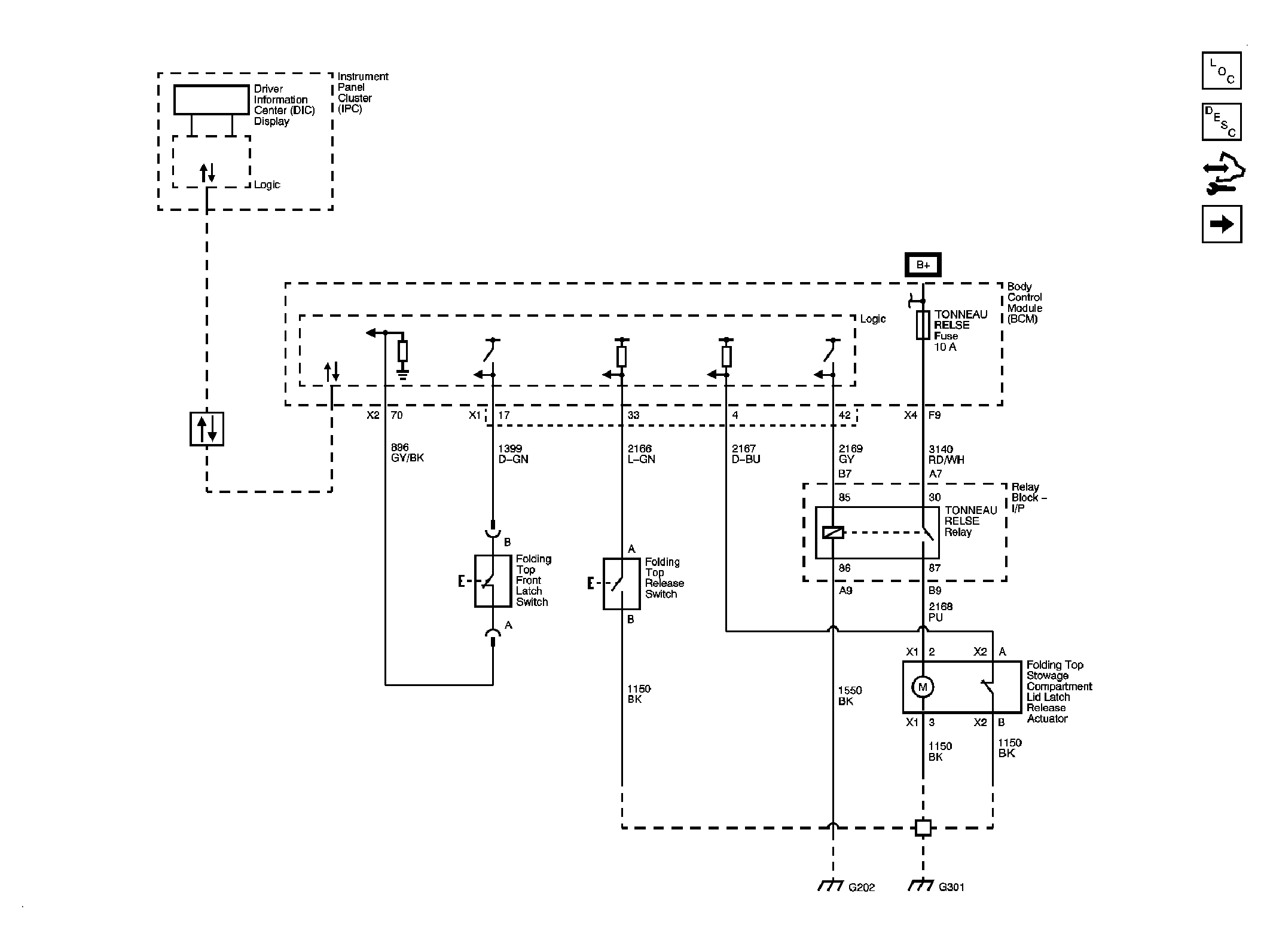

Fig 1: Manual Folding Top (CO5)

Courtesy of GENERAL MOTORS CORP.

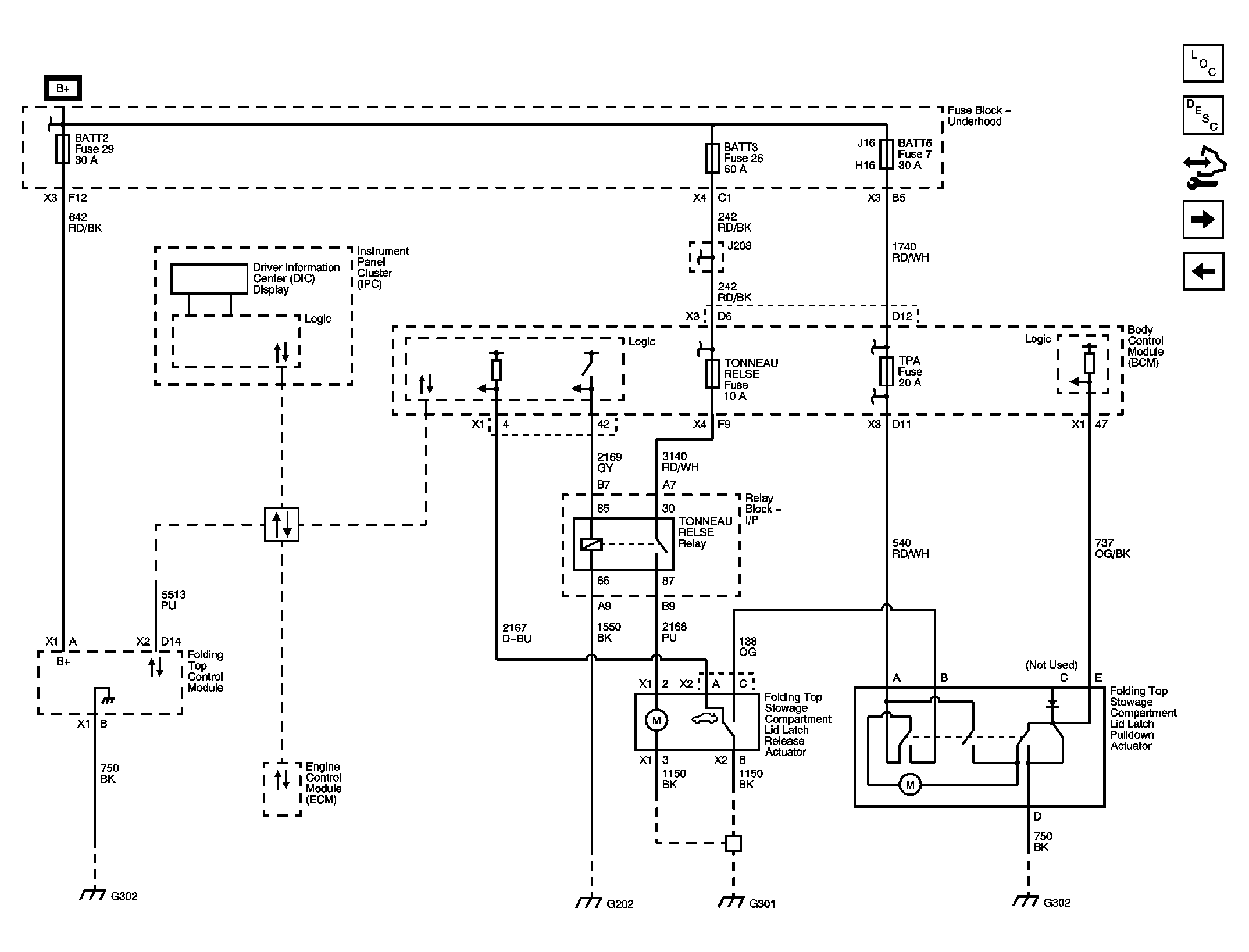

Fig 2: Power, Ground, Serial Data, and Lid Controls (CM7)

Courtesy of GENERAL MOTORS CORP.

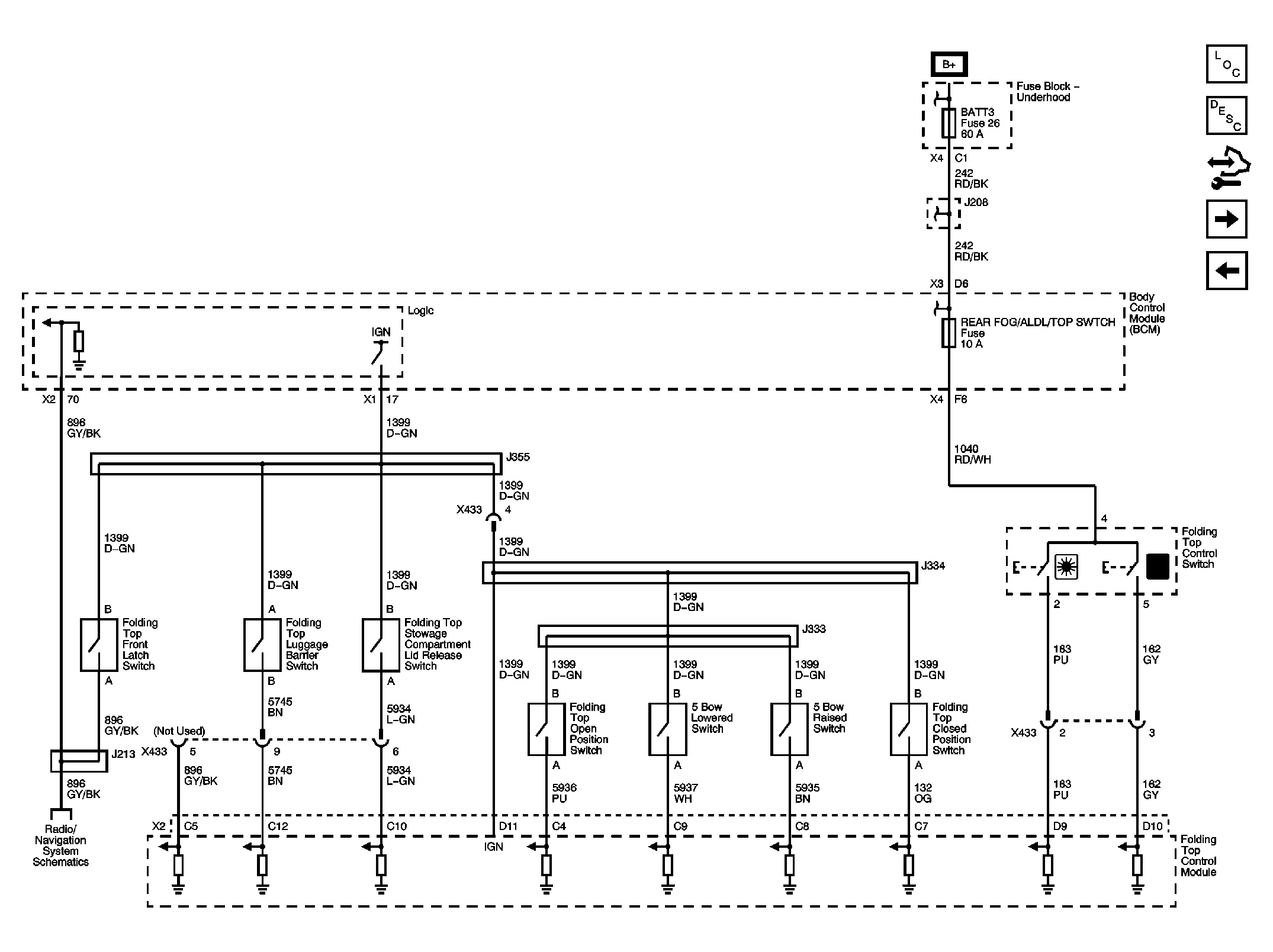

Fig 3: Switches (CM7)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Pump and Valves (CM7)

Courtesy of GENERAL MOTORS CORP.
