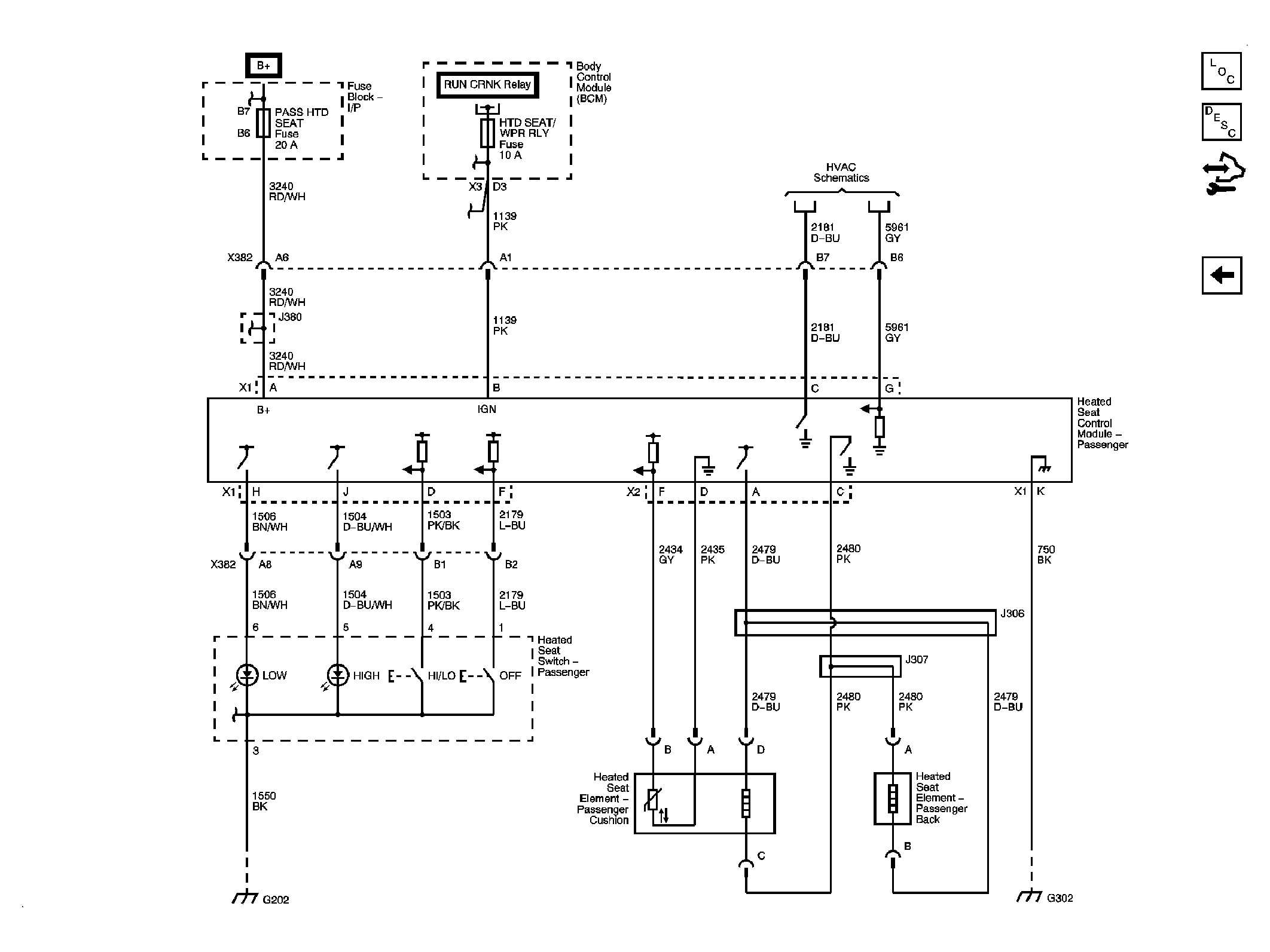

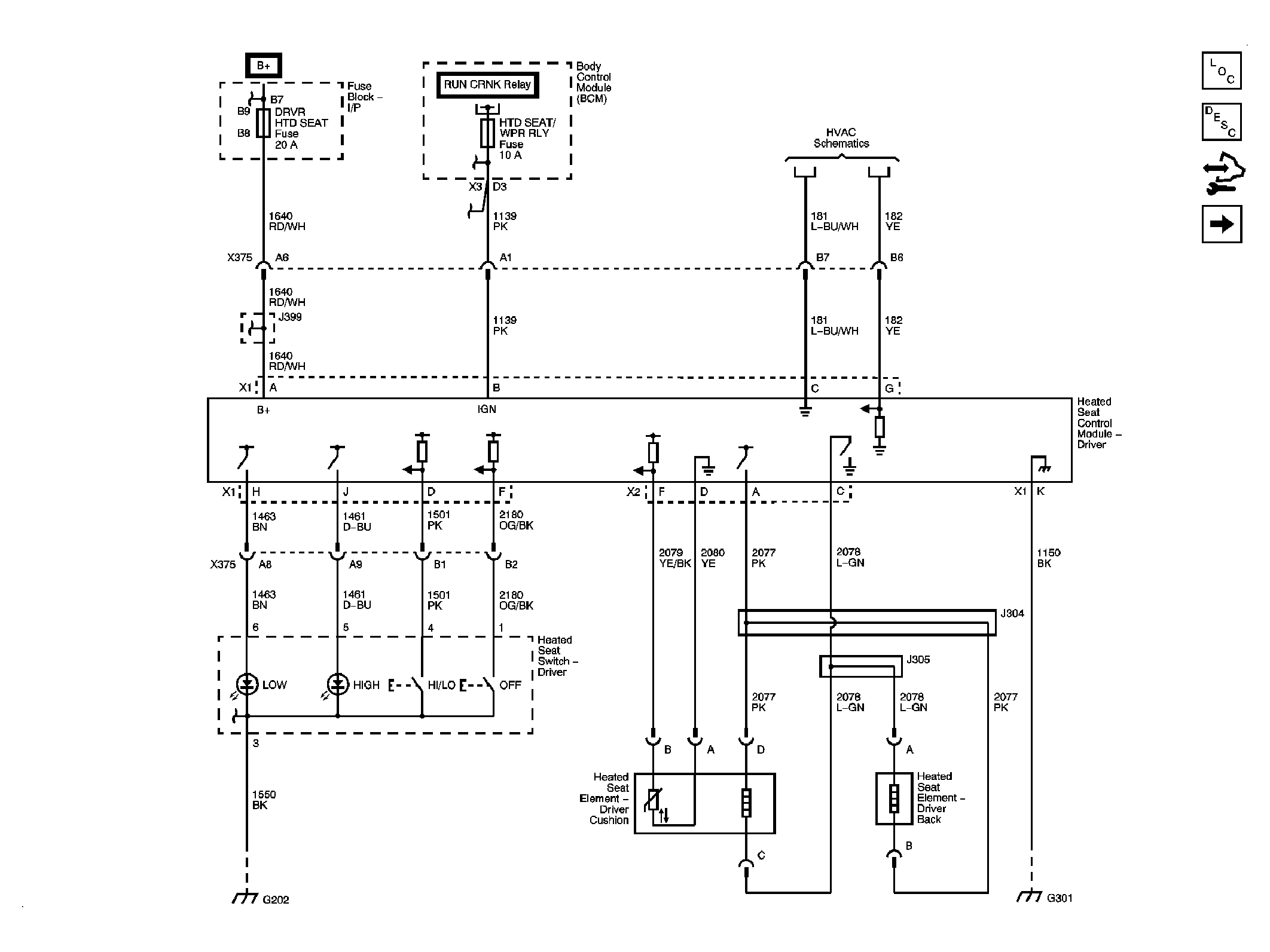

Home >> Chevrolet >> 2010 >> Corvette Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heating System And Seat Cooling System >> Schematic and Routing Diagrams >> Heated/Cooled Seat Schematics
