Home >> Chevrolet >> 2010 >> Corvette Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat System >> Schematic and Routing Diagrams >> Driver Seat Schematics

Driver Seat Schematics

Fig 1: 6-Way Power Seat
GM2225874Courtesy of GENERAL MOTORS CORP.

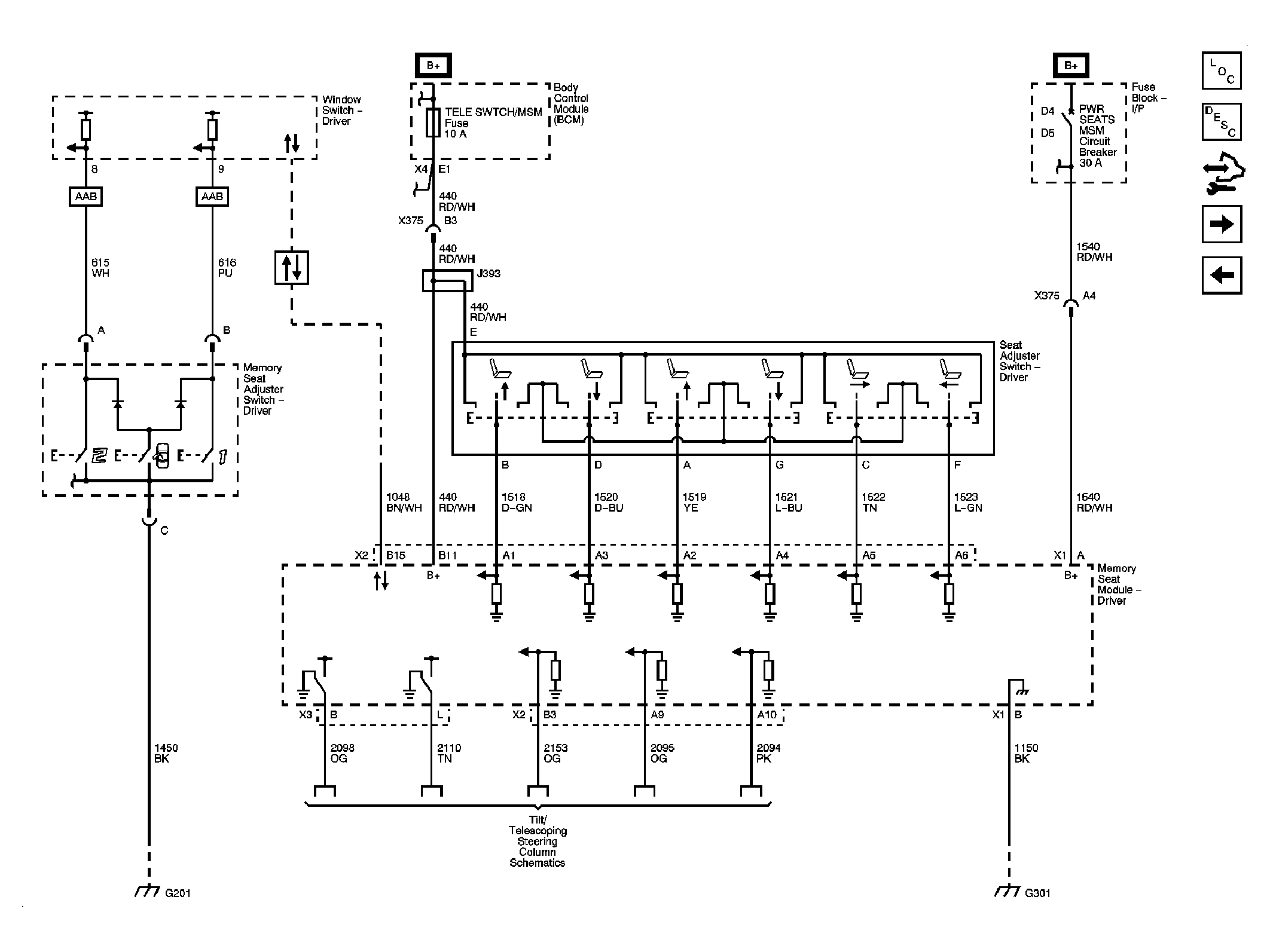

Fig 2: Memory Seat (AAB 1 of 2)
GM2225884Courtesy of GENERAL MOTORS CORP.

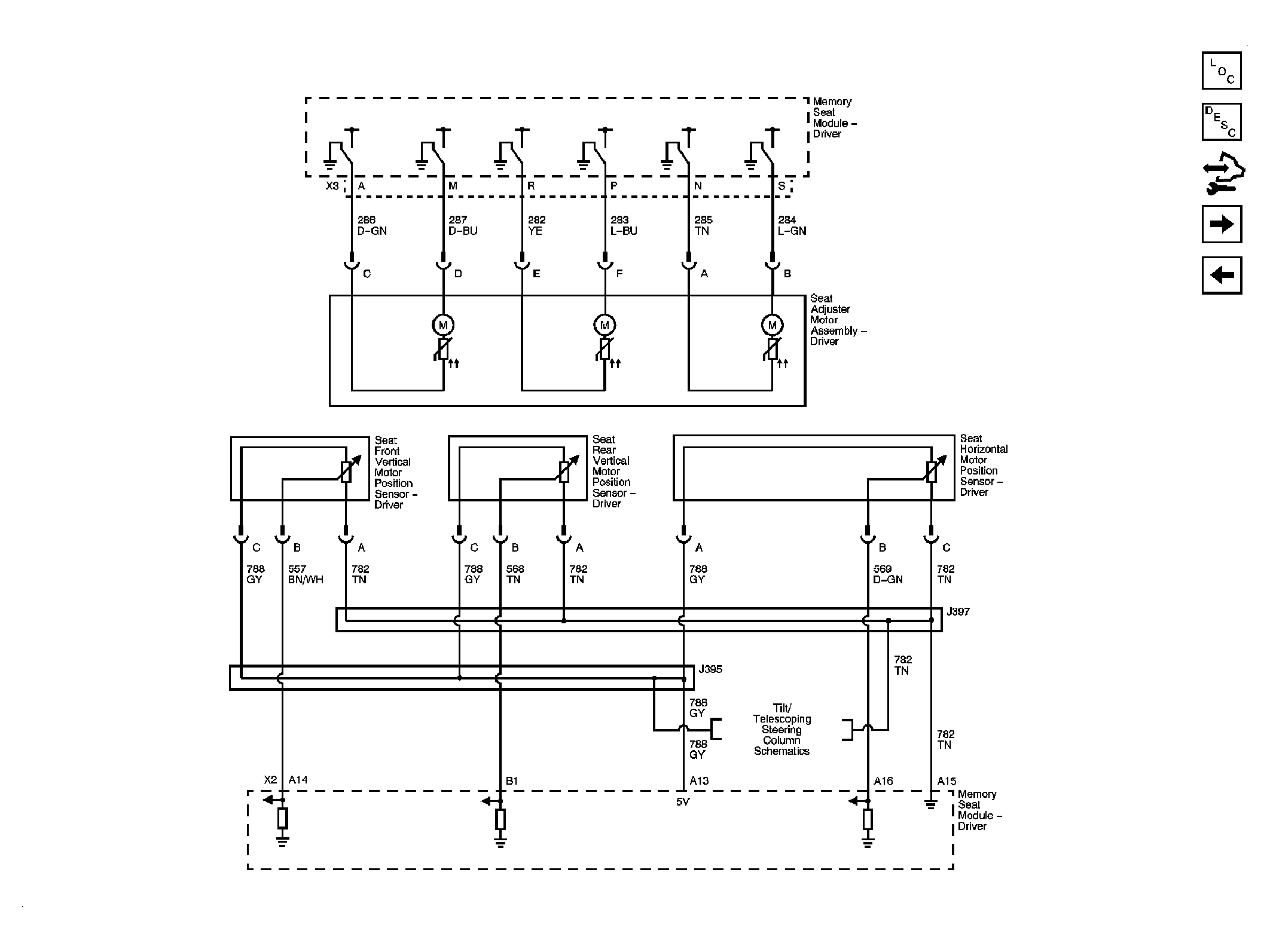

Fig 3: Memory Seat (AAB 2 of 2)
GM2225889Courtesy of GENERAL MOTORS CORP.
Fig 4: Lumbar Support
GM2225893Courtesy of GENERAL MOTORS CORP.
