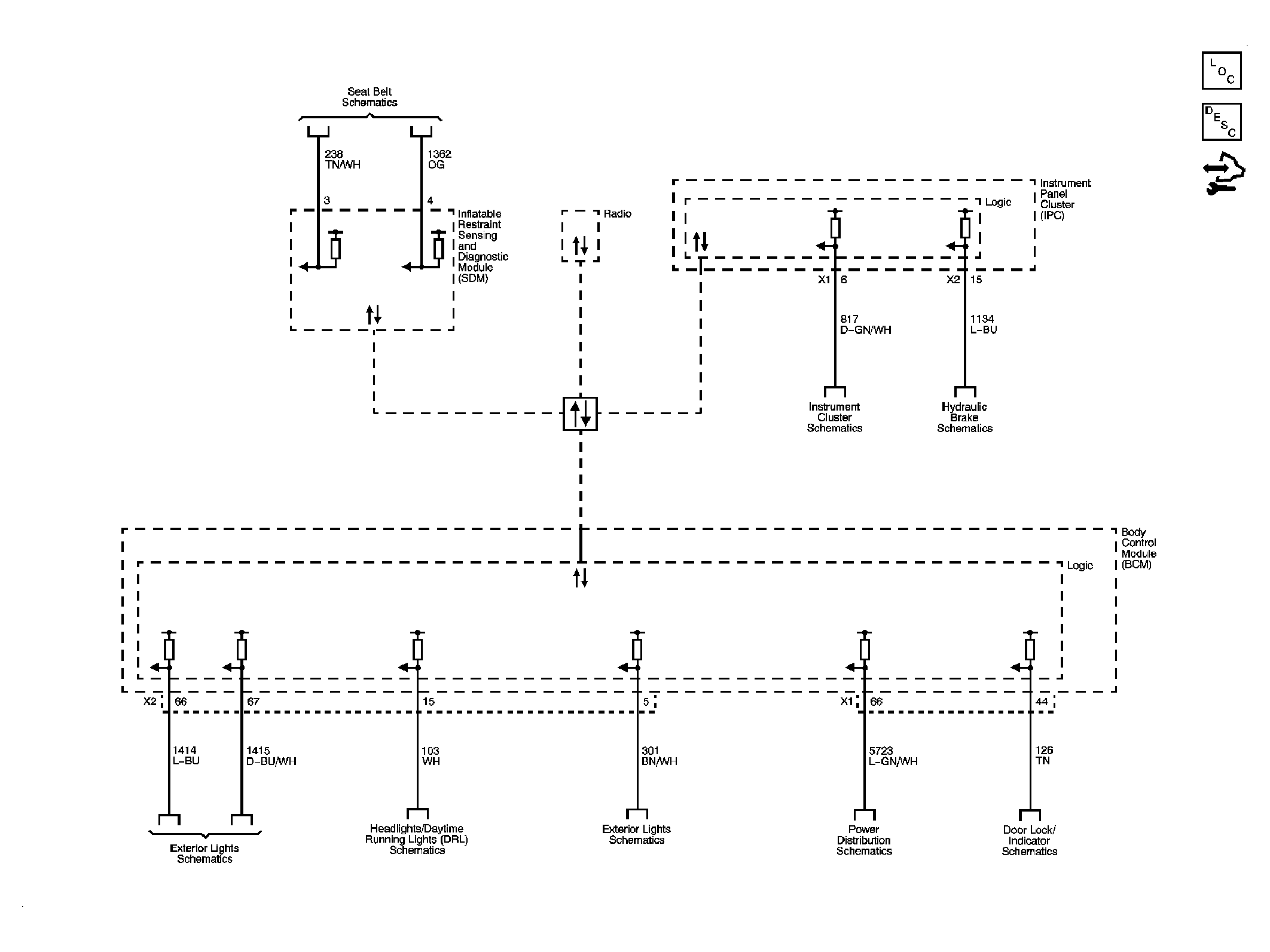

Home >> Chevrolet >> 2010 >> Corvette Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays & Gauges >> Schematic and Routing Diagrams >> Audible Warnings Schematics
