Steering Column Trim Cover Replacement

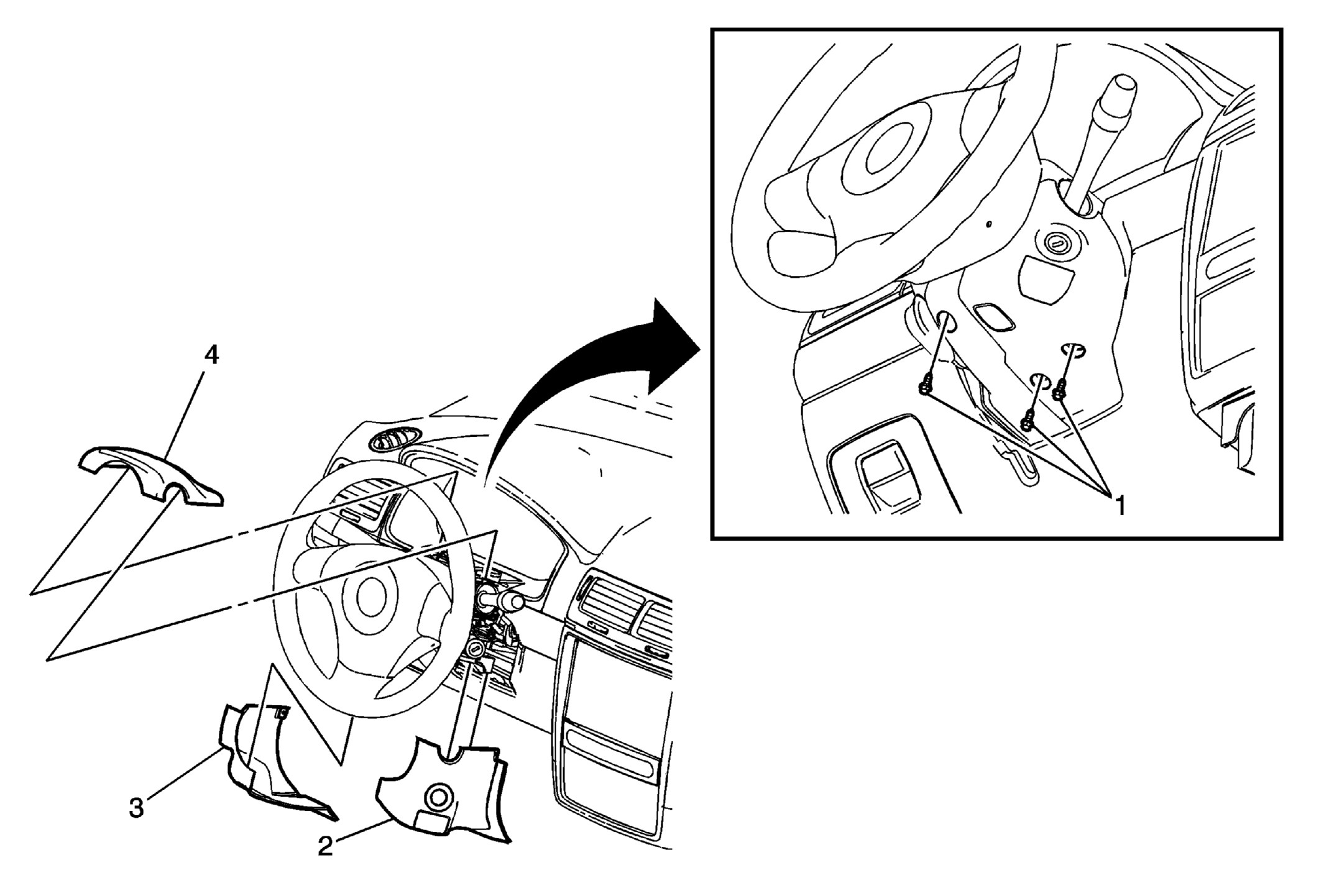

Fig 1: View Of Steering Column Trim Covers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column Lower Trim Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Right Steering Column Lower Trim Cover
3	Left Steering Column Lower Trim Cover
4	Steering Column Upper Trim Cover
