Rear Door Sash Outer Trim Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the door and related parts.
  1. Remove the rear door sash outer trim (A).
    1. Remove the screw from inside the door.
    2. Release the lower edge of the trim from the door glass outer weatherstrip (B).
    3. Pull the trim up to release the hooks (C) from the door, then remove the trim.

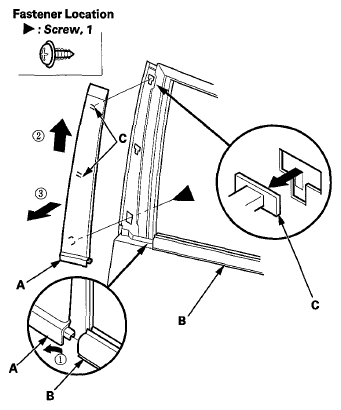

    Fig 1: Identifying Rear Door Sash Outer Trim
    G06430929Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the trim in the reverse order of removal.
