Reverse (Gear Position) Linked Rear Wiper

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

When the shift lever is shifted to R with the front windshield wiper activated, the rear wiper operates automatically even if the rear wiper switch is off.

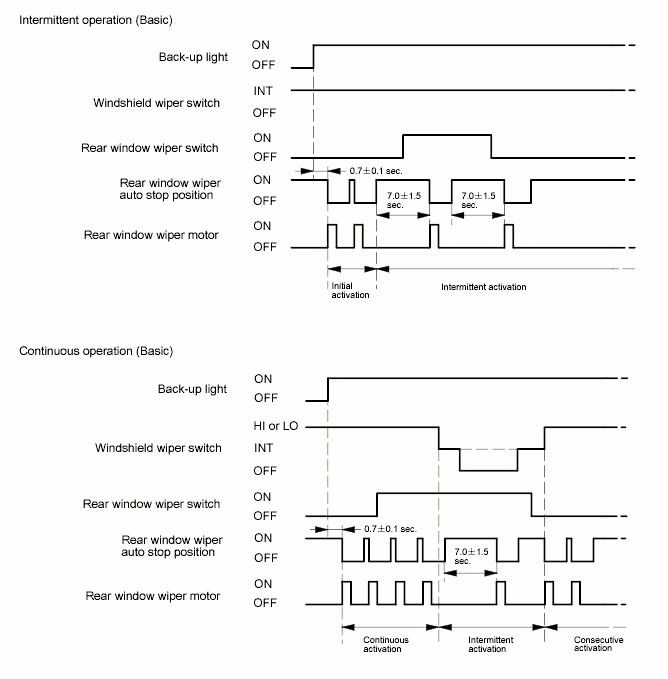

Fig 1: Identifying Reverse Linked Rear Wiper Operation
G00501833Courtesy of AMERICAN HONDA MOTOR CO., INC.
