Trim Removal/Installation - Hatch Areas

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the hatch middle trim (A).
1. Detach the hooks (B) from the left hatch side trim (C) and the right hatch side trim (D).
2. Pull the hatch middle trim back by hand to detach the clips, then remove it.
Fig 1: Identifying Hatch Middle Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

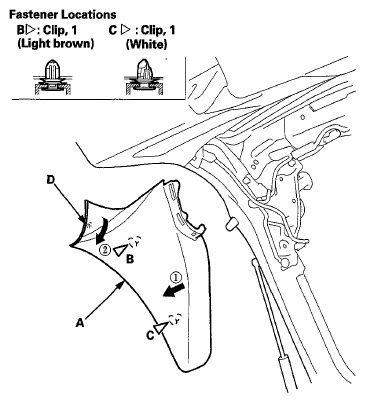

Pull the hatch side trim (A) back by hand to detach the clips (B, C) and the hook (D), then remove the hatch side trim both sides.
Left side

Fig 2: Identifying Hatch Side Trim, Clip And Hooks (Left Side)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side

Fig 3: Identifying Hatch Side Trim, Clip And Hooks (Right Side)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply protective tape to the hatch lower trim panel along the top of the pull pocket.
Insert a flat-tip screwdriver (A) into the slit (B), insert the other flat-tip screwdriver (C) at the marks (D) and detach the hooks (E) while prying the pull pocket out at the same time. Remove the pull pocket (F).

Fig 4: Removing Pull Pocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hatch latch cover.

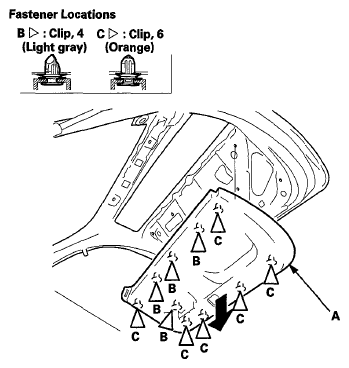

Pull the hatch lower trim panel (A) back by hand, and detach the clips (B, C), then remove it.

Fig 5: Pulling Hatch Lower Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
