Left side

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the bolts and clips, then remove the left front floor undercover (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

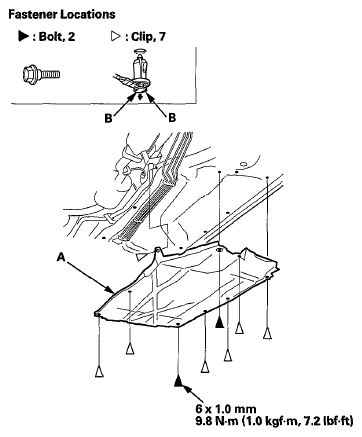

Fig 1: Left Front Floor Undercover With Torque Specification And Notch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the left front floor undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
