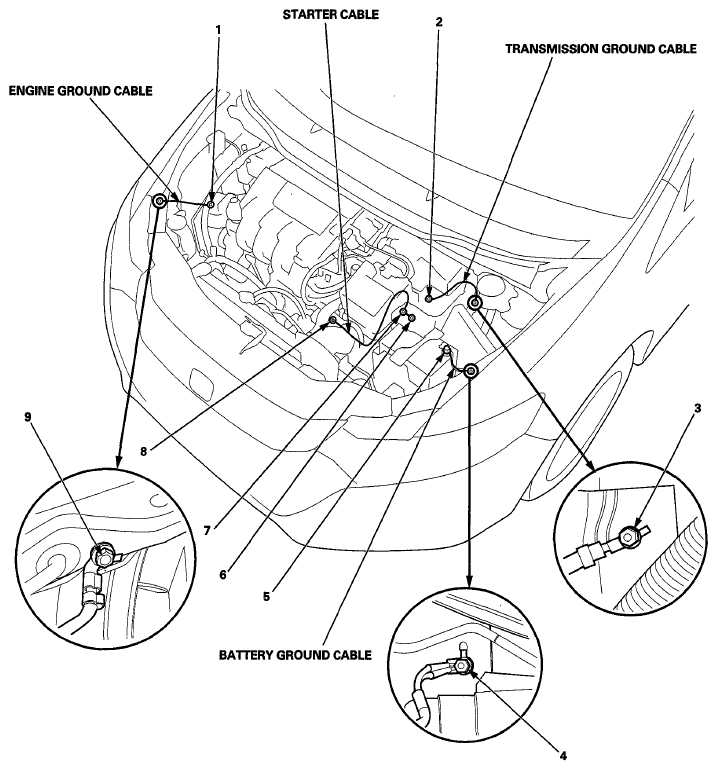

Transmission Ground Cable
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION GROUND CABLE SPECIFICATIONS
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
| G3 |
3 |
|
Left side of engine compartment |
Body ground, via transmission ground cable |
| T-8 |
2 |
|
Left side of engine compartment |
Transmission housing |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
