Driver's Side Wire Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

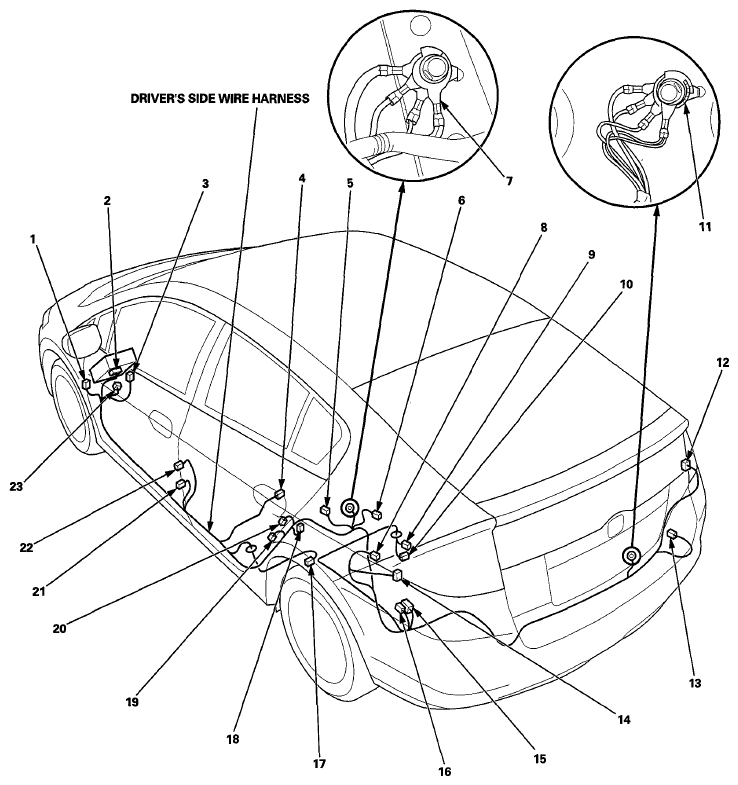

DRIVER'S SIDE WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Cargo area light | 8 | 2 | Left side of cargo area | |
| Driver's door switch | 21 | 1 | Left B-pillar | |
| EVAP canister vent shut valve | 9 | 2 | Under floor | |
| Fuel tank pressure sensor | 10 | 3 | Under floor | |
| IPU module fan | 13 | 4 | Behind right side of cargo area | |
| Left rear door switch | 20 | 1 | Left C-pillar | |
| Left taillight/brake light/back-up light/rear turn signal light/side marker light | 14 | 5 | Behind left side of cargo area | |
| Left side curtain airbag inflator | 6 | 2 | Left C-pillar | |
| Left side impact sensor (second) | 19 | 2 | Left C-pillar | |
| Noise reduction condenser | 18 | 2 | Left C-pillar | |
| Right taillight/brake light/back-up light/rear turn signal light/side marker light | 12 | 5 | Behind right side of cargo area | |
| Left rear wheel speed sensor | 17 | 2 | Under floor | |
| Under-dash fuse/relay box connector C | 2 | 49 | Under left side of dash | |
| C305 | 3 | 16 | Under left side of dash | Left engine compartment wire harness |
| C402 | 23 | 13 | Under left side of dash | Dashboard wire harness |
| C501 | 4 | 4 | Under floor | Floor wire harness |
| C601 | 1 | 4 | Under left side of dash | Driver's door wire harness |
| C602 | 5 | 12 | Left C-pillar | Hatch subharness |
| C603 | 15 | 20 | Behind left side of cargo area | IPU wire harness |
| C604 | 16 | 3 | Behind left side of cargo area | IPU wire harness |
| C605 | 22 | 12 | Left B-pillar | Left rear door wire harness |
| G701 | 11 | Behind middle of cargo area | Body ground, via driver's side wire harness | |
| G702 | 7 | Left C-pillar | Body ground, via driver's side wire harness |
