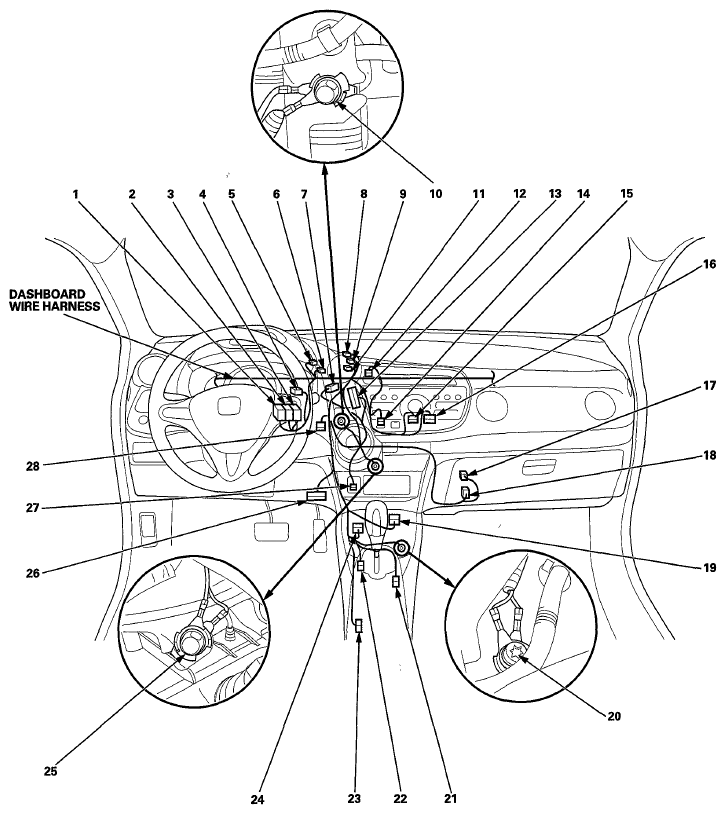

Dashboard Wire Harness (View of middle section) (Without Navigation)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
DASHBOARD WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Accessory power socket | 27 | 2 | Middle of dash | ||
| Audio unit connector A | 16 | 24 | Middle of dash | ||
| Audio unit connector B | 15 | 14 | Middle of dash | With USB adapter | |
| Climate control unit | 7 | 5 | Middle of dash | ||
| Climate control unit | 13 | 36 | Middle of dash | ||
| Data link connector | 26 | 16 | Under left side of dash | ||
| Hazard warning switch | 12 | 5 | Middle of dash | ||
| Humidity/in-car temperature sensor | 28 | 4 | Middle of dash | ||
| Shift lock solenoid/park-pin switch/AT gear position indicator panel light | 21 | 6 | Under center console | ||
| Passenger's airbag cutoff indicator | 14 | 4 | Middle of dash | ||
| SRS unit | 24 | 39 | Under middle of dash | ||
| TPMS control unit | 4 | 20 | Under middle of dash | Except Canada models | |
| Yaw rate - lateral acceleration sensor | 19 | 4 | Under middle of dash | With VSA | |
| C404 | 17 | 2 | Under middle of dash | A/C wire harness | |
| C405 | 18 | 16 | Under middle of dash | A/C wire harness | |
| C406 | 22 | 12 | Under center console | USB unit subharness | With USB adapter |
| C407 | 23 | 23 | Under center console | Floor wire harness | |
| C408 (Junction connector) | 1 | 12 | Under middle of dash | ||
| C409 (Junction connector) | 2 | 12 | Under middle of dash | ||
| C410 (Junction connector) | 3 | 12 | Under middle of dash | With VSA | |
| S7 (Thermal joint) | 5 | Under middle of dash | |||
| S8 (Thermal joint) | 6 | Under middle of dash | |||
| S9 (Thermal joint) | 8 | Under middle of dash | |||
| S10 (Thermal joint) | 9 | Under middle of dash | |||
| S11 (Thermal joint) | 11 | Under middle of dash | |||
| G502 | 10 | Under middle of dash | Body ground, via dashboard wire harness | ||
| G503 | 25 | Under middle of dash | Body ground, via dashboard wire harness | ||
| G504 | 20 | Under center console | Body ground, via dashboard wire harness |
