Cable Reel Sub Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

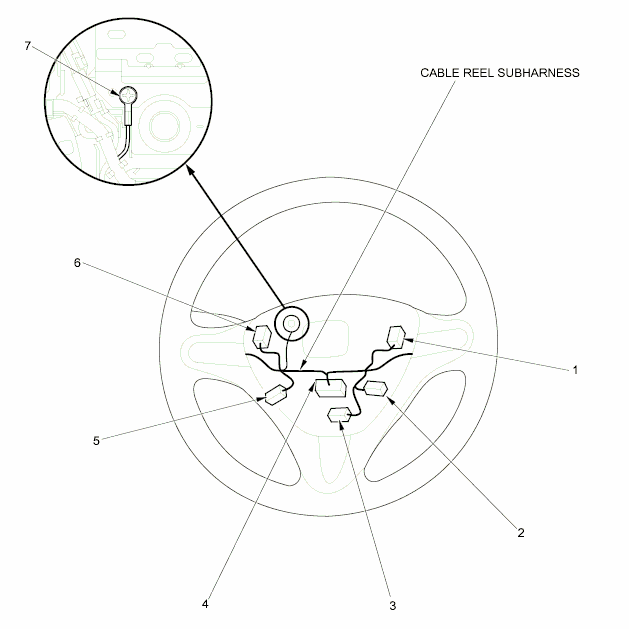

CABLE REEL SUB HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Cable reel | 4 | 20 | Steering wheel | ||
| HFL-navigation voice control switch | 5 | 5 | Steering wheel | With navigation | |
| Horn switch | 3 | 1 | Steering wheel | ||
| Paddle shifter - (Downshift switch) | 6 | 2 | Steering wheel | With paddle shifter+/- | |
| Paddle shifter + (Upshift switch) | 1 | 2 | Steering wheel | With paddle shifter+/- | |
| Multi-information switch | 2 | 6 | Steering wheel | With cruise control | |
| G551 | 7 | Steering wheel | 2011 Model |
