A/C Wire Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

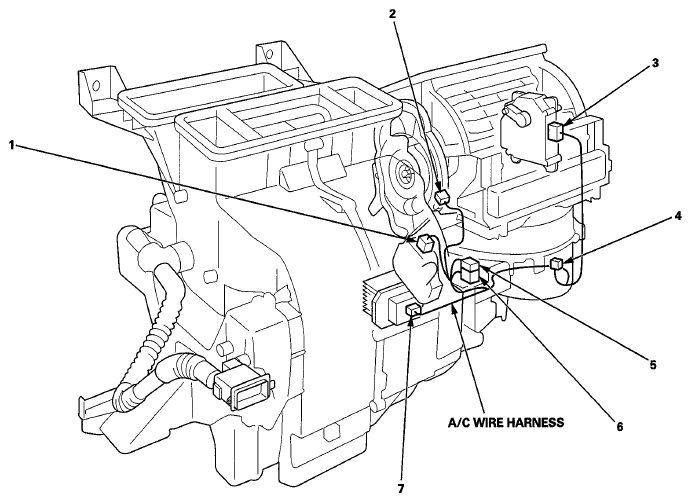

A/C WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| Air mix control motor | 1 | 7 | Under middle of dash | |
| Blower motor | 4 | 2 | Under right side of dash | |
| Mode control motor | 2 | 7 | Under middle of dash | |
| Power transistor | 7 | 4 | Under middle of dash | |
| Recirculation control motor | 3 | 7 | Under middle of dash | |
| C404 | 5 | 2 | Under middle of dash | Dashboard wire harness |
| C405 | 6 | 16 | Under middle of dash | Dashboard wire harness |
