EVAP Canister Vent Shut Valve Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a lift.
  2. Disconnect the hoses from the EVAP canister filter. (see EVAP CANISTER FILTER REPLACEMENT  )
  3. Remove the bolts (A), then remove the canister guard (B).
    Fig 1: Canister Guard And Bolts With Torque Specifications
    G06429645Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the EVAP canister vent shut valve 2P connector (A), then remove the harness clip (B).

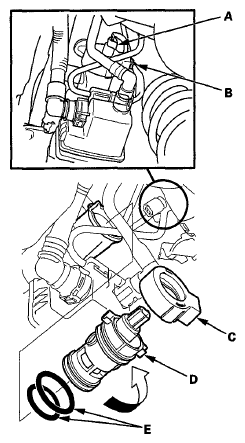

    Fig 2: Removing EVAP Canister Vent Shut Valve
    G06429646Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the cap (C).
  6. Remove the EVAP canister vent shut valve (D).
  7. Install the parts in the reverse order of removal with new O-rings (E) and a new cap.
    NOTE: Do not coat the O-rings with engine oil.
