Section 29 (Exterior Lights)
>>
Circuit Diagram - Headlights
Circuit Diagram - Headlights
WARNING:
This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

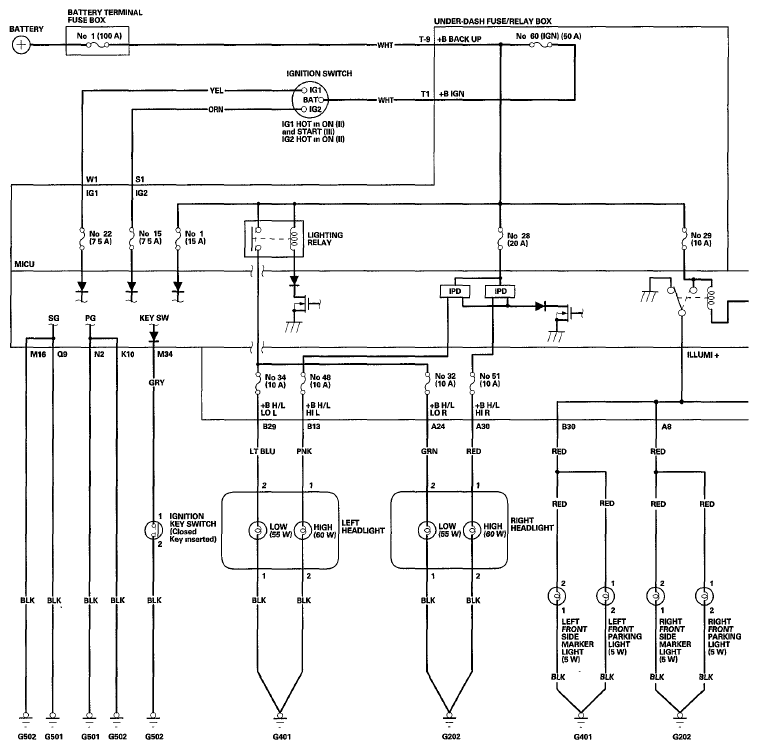

Fig 1: Headlights - Circuit Diagram (1 Of 2)

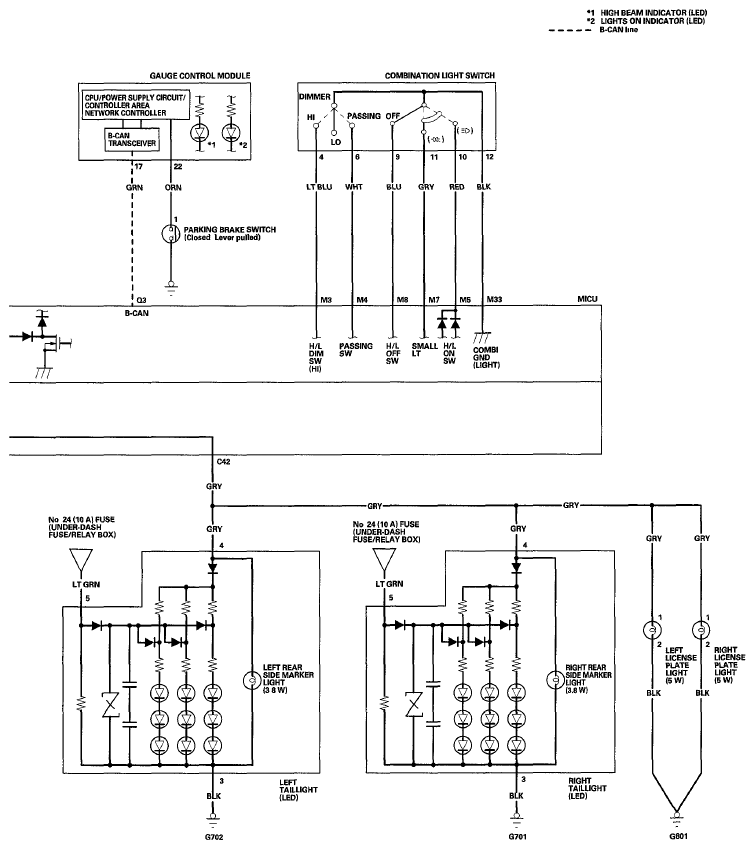

Fig 2: Headlights - Circuit Diagram (2 Of 2)
