Bulb Replacement: Taillight

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the taillight (see TAILLIGHT REPLACEMENT  ).

    Brake Light/Taillight: (LED)

    Rear Turn Signal Light: 21 W

    Back-up Light: 16 W

    Rear Side Marker Light: 3.8 W

    NOTE: The brake light/taillight (LED) is a part of the taillight assembly, and it cannot be replaced by itself.

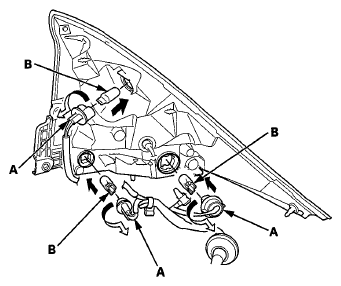

    Fig 1: Identifying Bulb Sockets And Bulbs
    G06431583
  2. Turn the bulb sockets (A) 45° counterclockwise to remove the bulbs (B).
  3. Install new bulb(s) in the reverse order of removal.
