Front Parking Light

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 2P connector (A) from the front parking light.

    Front Parking Light: 5 W

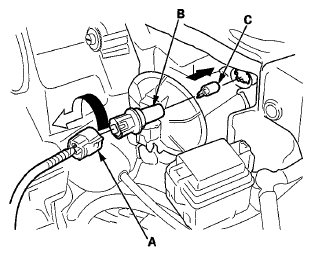

    Fig 1: Identifying 2P Connector, Bulb Socket And Bulb
    G06431581
  2. Turn the bulb socket (B) 45° counterclockwise to remove the bulb(C).
  3. Install a new bulb in the reverse order of removal.
