Cowl Cover Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to damage the body.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the windshield wiper arms (see WIPER ARM REPLACEMENT ).
Detach the clips with a clip remover from the cowl cover (A), then disconnect the windshield washer tube (B).

Fig 1: Identifying Cowl Cover And Windshield Washer Tube
Courtesy of AMERICAN HONDA MOTOR CO., INC.

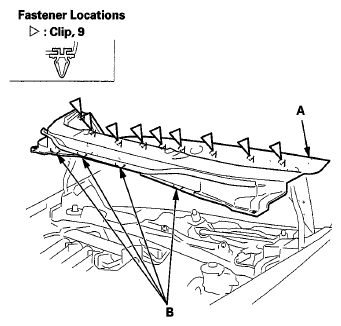

Carefully pull the windshield side edge of the cowl cover (A) upward only enough to detach the clips, and release the forward hooks (B) by sliding the cowl cover forward, then remove the cover. Be careful not to break the hooks.

Fig 2: Identifying Cowl Cover And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Hood hinge cover replacement
If necessary, remove the hood hinge covers (A) on both sides.
1. Detach the clips (B) from the body.
2. Release the hook (C), and detach the clips (D), then remove the covers.
Left side

Fig 3: Identifying Hood Hinge Covers, Hook And Clips - Left Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side

Fig 4: Identifying Hood Hinge Covers, Hook And Clips - Right Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Under-cowl panel removal
If necessary, remove the bolts, then remove the under-cowl panel (A).

Fig 5: Under-Cowl Panel With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install all of the removed parts in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure the washer tube is connected securely.
