Reduced air volume

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Compared to the ECON OFF Mode, fan electric operation is suppressed and power consumption is reduced.

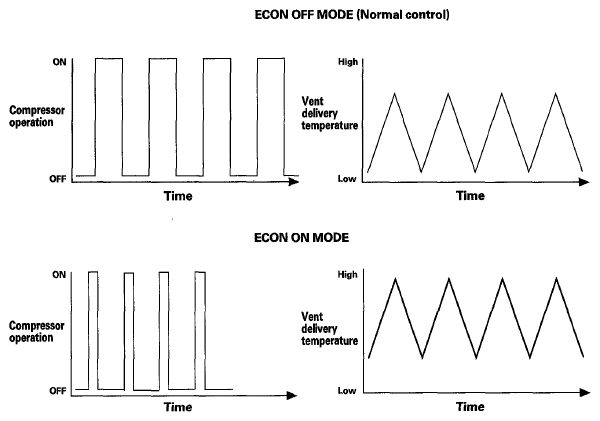

Fig 1: Air Temperatures Graph
G06431264Courtesy of AMERICAN HONDA MOTOR CO., INC.
