Receiver/Dryer Desiccant Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install the receiver/dryer as quickly as possible to prevent the system from absorbing moisture from the air.

Remove the A/C condenser (see A/C COMPRESSOR RELIEF VALVE REPLACEMENT ).
Remove the cap (A) from the bottom of the A/C condenser. Remove the O-ring (B) and the desiccant (C).

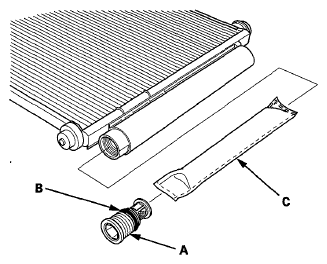

Fig 1: Identifying A/C Condenser, O-Ring And Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the receiver/dryer in the reverse order of removal, and note these items:

Replace the O-rings with new ones, and apply a thin coat of refrigerant oil (SP-10) before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
Install the cap to the specified torque. It is made of resin and can be easily stripped.
