How to Use the Self-diagnostic Function without the HDS: Notes
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
The climate control unit has a self-diagnostic function. To run the self-diagnostic function, do the following:
- Turn the ignition switch to LOCK (0), and then to ON (II).

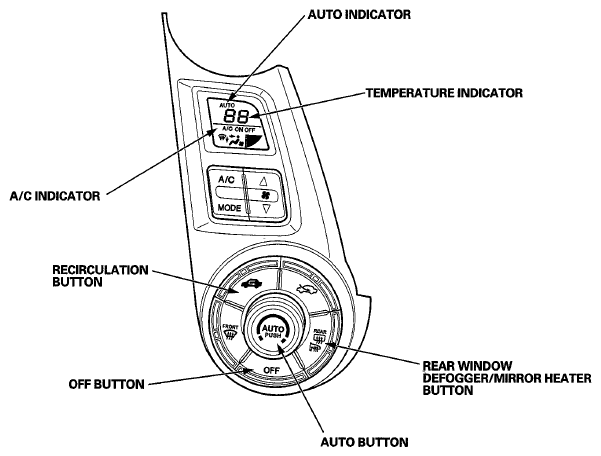

- Press and hold the OFF button. While pressing the REAR WINDOW DEFOGGER/MIRROR HEATER button five times within 10 seconds, then release the OFF button and the self-diagnostic will begin.NOTE:
- The blower motor will run at various speeds regardless of what the panel is displaying.
- If there is a problem with the system, it will flash 88, or 88 AUTO or 88 A/C, and one or more of the 14 indicator segments (A through P). Refer to checking for DTCs.
- If there are no problems detected, the segments will not illuminate, and the system will appear to be turned off.
