WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

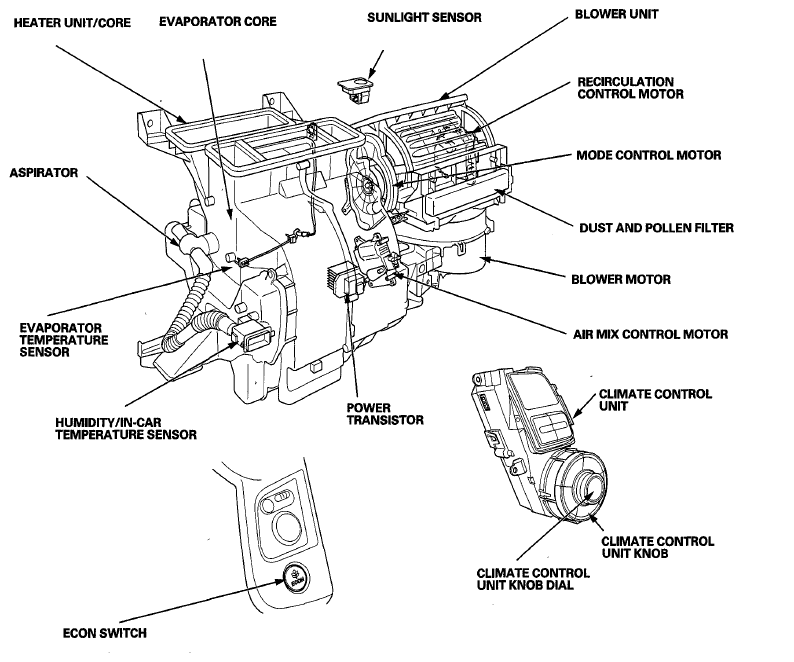

Fig 1: Identifying Climate Control Component Location (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

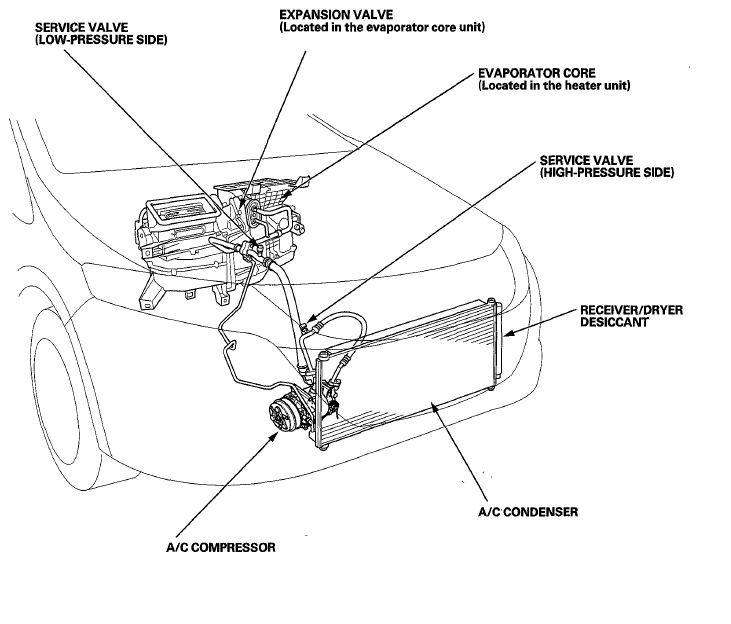

Fig 2: Identifying Climate Control Component Location (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Identifying Climate Control Component Location (3 Of 3)
