Intake Manifold Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover.

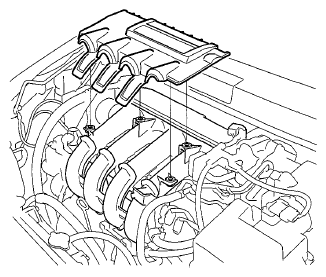

Fig 1: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove the engine wire harness connectors and wire harness clamps from the intake manifold.
- Throttle actuator connector
- Manifold absolute pressure (MAP) sensor connector
- Exhaust gas recirculation (EGR) valve connector
- Evaporative emission (EVAP) canister purge valve connector
Remove the brake booster vacuum hose (A) and the EVAP canister hose (B).

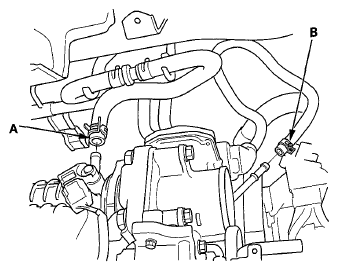

Fig 2: Identifying Brake Booster Vacuum Hose And EVAP Canister Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister purge hose.

Fig 3: Identifying EVAP Canister Purge Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the throttle body without disconnecting the water bypass hoses.

Fig 4: Identifying Throttle Body With Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness holder (A) from the intake manifold.

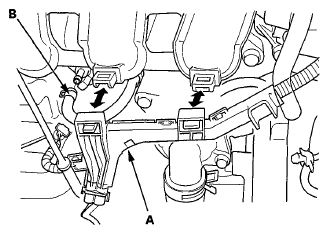

Fig 5: Identifying Positive Crankcase Ventilation (PCV) Hose And Harness Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the positive crankcase ventilation (PCV) hose (B).
Remove the dipstick.
Remove the intake manifold bracket mounting bolts.

Fig 6: Identifying Intake Manifold Bracket Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake manifold (A).

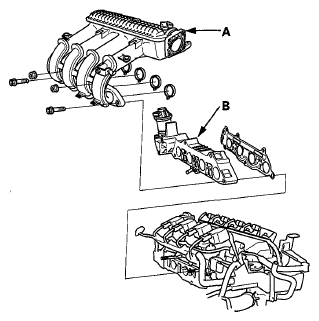

Fig 7: Identifying Intake Manifold And EGR Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EGR plate (B).
Disassemble the intake manifold.
NOTE: Refer to the Exploded View if needed during this procedure.
