WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Use new gaskets and self-locking nuts when reassembling.

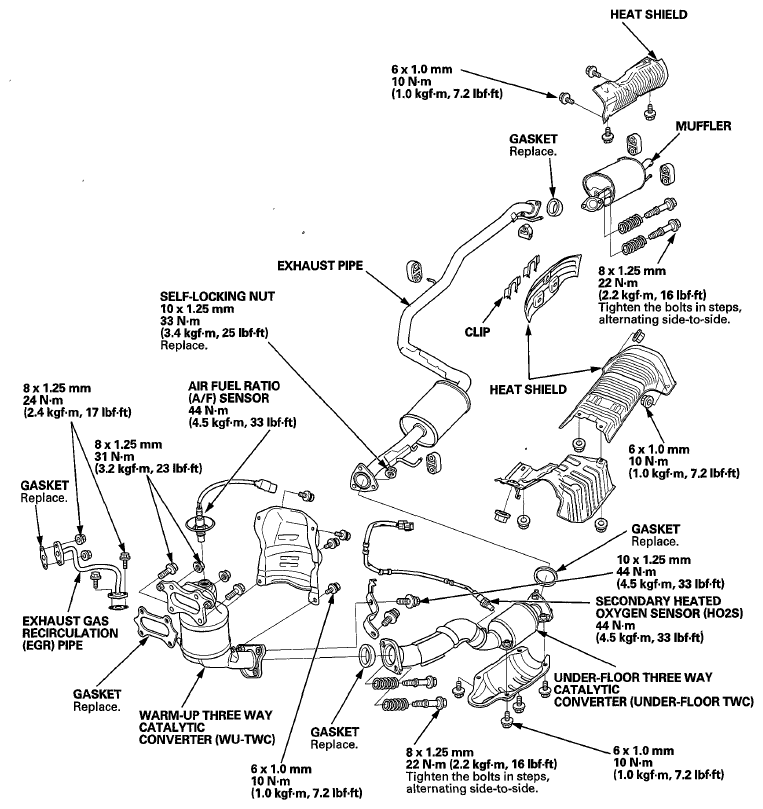

Fig 1: Exploded View Of Exhaust Pipe And Muffler With Torque Specifications
