CVT Clutch Pressure Control Solenoid Valve

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

The CVT clutch pressure control solenoid valve consists of the start clutch pressure control valve and the solenoid. The CVT clutch pressure control solenoid valve controls start clutch engagement according to the throttle opening.

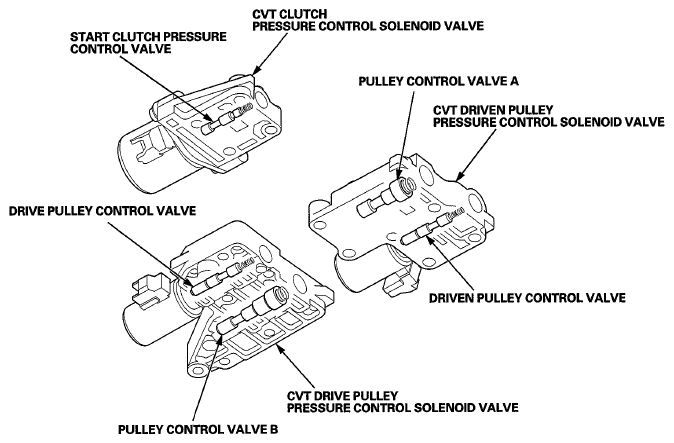

Fig 1: Identifying CVT Driven Pulley And CVT Clutch Pressure Control Solenoid Valve

Courtesy of AMERICAN HONDA MOTOR CO., INC.
