CVT Clutch Pressure Control Solenoid Valve Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION  ).
  2. Disconnect the CVT clutch pressure control solenoid valve connector (A).

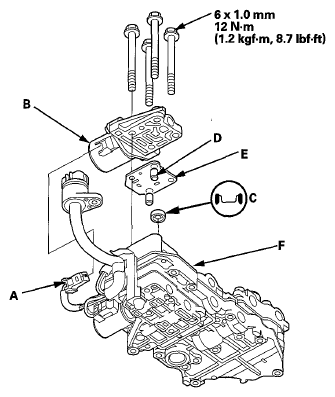

    Fig 1: CVT Clutch Pressure Control Solenoid Valve, Bolts With Torque Specifications, Filter And Connector
    G06430122Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the CVT clutch pressure control solenoid valve (B).
  4. Check that the filter (C) is in good condition, replace it if it is clogged or damaged.
  5. Install a new CVT clutch pressure control solenoid valve with the dowel pins (D) and the separator plate (E) on the lower valve body (F).
  6. Connect the CVT clutch pressure control solenoid valve connector.
  7. Install the lower valve body (see LOWER VALVE BODY REMOVAL/INSTALLATION  ).
