Fan, Fan Motor, and Shroud Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

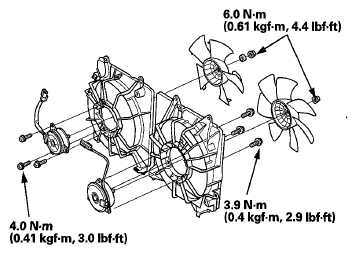

Assemble the fan shrouds.

Fig 1: Fan Shrouds Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

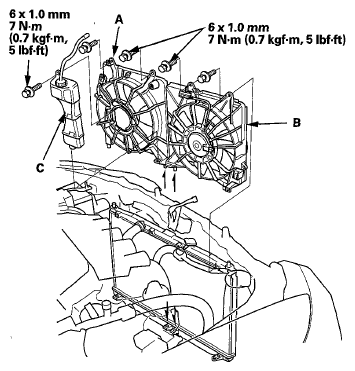

Install the radiator fan shroud assembly (A), then install the A/C condenser fan shroud assembly (B).

Fig 2: Radiator Fan Shroud Assembly And A/C Condenser Fan Shroud Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the coolant reservoir (C).

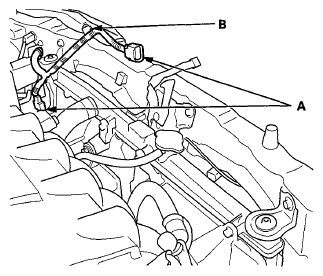

Connect the fan motor connectors (A) and the harness clamp (B).

Fig 3: Identifying Fan Motor Connectors And Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air duct bracket.

Fig 4: Air Duct Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Raise the vehicle on the lift to full height.
Install the A/C compressor clutch connector (A) to the clamp, then install the harness clamps (B).

Fig 5: Identifying A/C Compressor Clutch Connector And Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the vehicle on the lift.
Install the splash shields (see step 29 under ENGINE INSTALLATION ).
