Calibrate TPMS (Without TPMS Switch)

WARNING: This page does not describe the selected car, but rather 254 other vehicles, including the 2025 Honda Odyssey, 2025 Honda HR-V, 2025 Honda Civic, 2025 Honda CR-V, and 2025 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb label.
  2. Turn the vehicle to the ON mode.
    NOTE: Vehicle must be stopped with the shift lever in P or N position.
  3. Press and hold the INFORMATION button for at least 3 seconds to enter the customizing mode. See Fig 1.
  4. Press the SEL/RESET button to select TPMS CALIBRATION.
  5. Press the SEL/RESET button to select CALIBRATE.
  6. When the calibration successfully begins, "CALIBRATION STARTED" is shown on the Multi-Information display.
NOTE: If the calibration does not begin successfully, "CALIBRATION FAILED TO START" gets displayed on multi-information display and do the troubleshooting the TPMS symptom troubleshooting.

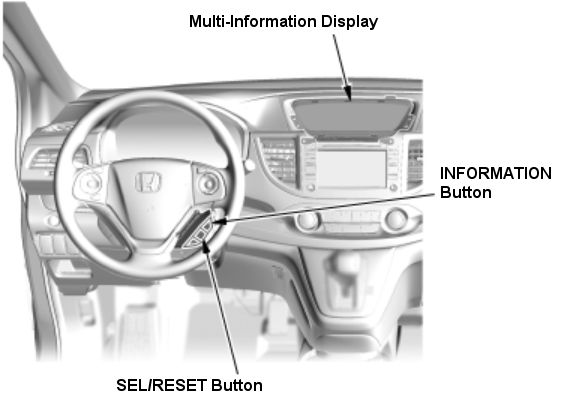

Fig 1: Identifying TPMS Reset Controls
G00530817Courtesy of AMERICAN HONDA MOTOR CO., INC.
