Calibrate TPMS (With TPMS Switch)

WARNING: This page does not describe the selected car, but rather 254 other vehicles, including the 2025 Honda Odyssey, 2025 Honda HR-V, 2025 Honda Civic, 2025 Honda CR-V, and 2025 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure the tires are inflated to the specified tire pressure listed on the doorjamb label.
  2. Turn the vehicle to the ON mode.
    NOTE: Vehicle must be stopped with the transmission in P or N position.
  3. Press the TPMS switch for 3 seconds. See Fig 1.
  4. When the calibration successfully begins, the indicator blinks twice.
NOTE: If the indicator does not blink, check the TPMS switch.

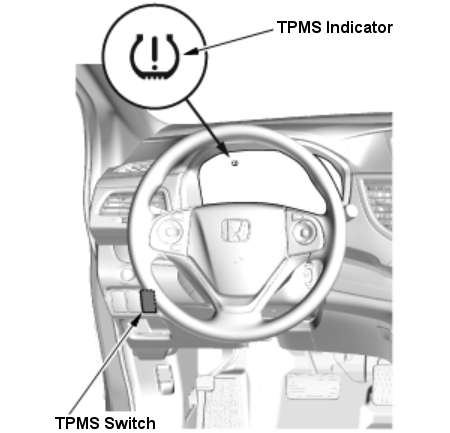

Fig 1: Identifying TPMS Switch & Indicator
G00530818Courtesy of AMERICAN HONDA MOTOR CO., INC.
