Emissions Maintenance Reminder Reset Procedure

WARNING: This page does not describe the selected car, but rather 254 other vehicles, including the 2025 Honda Odyssey, 2025 Honda HR-V, 2025 Honda Civic, 2025 Honda CR-V, and 2025 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Heated Oxygen Sensor (HO2S) must be replaced every 90, 000 miles. When odometer reaches 90, 000 miles, O2S indicator light on dash will illuminate, and then every subsequent 90, 000 miles. After servicing, turn off or reset warning light.
    2. NOTE: Reset procedure is for first 90, 000 mile reset. At every subsequent 90, 000 mile reset, move screw back to previous hole.
  2. To reset warning light, remove instrument cluster. Remove masking tape from hole "B". See Fig 1 or Fig 2 . Remove screw from hole "A" and insert into hole "B". Apply new masking tape to hole "A".

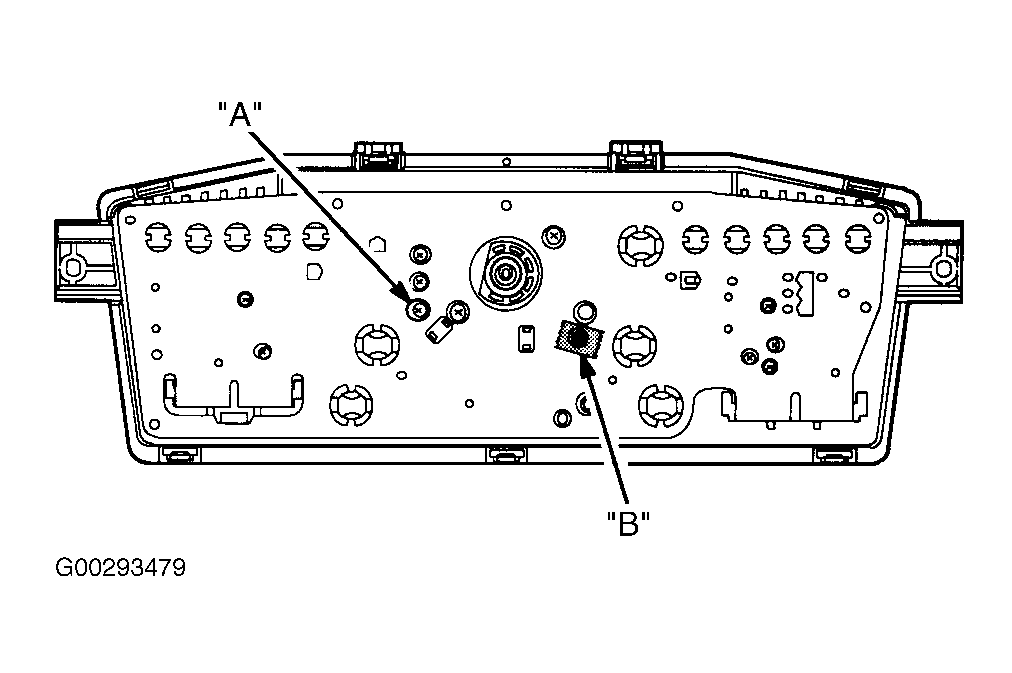

Fig 1: Identifying Oxygen Sensor Warning Light Reset Holes (2.6L)
G00293479Courtesy of AMERICAN HONDA MOTOR CO., INC.

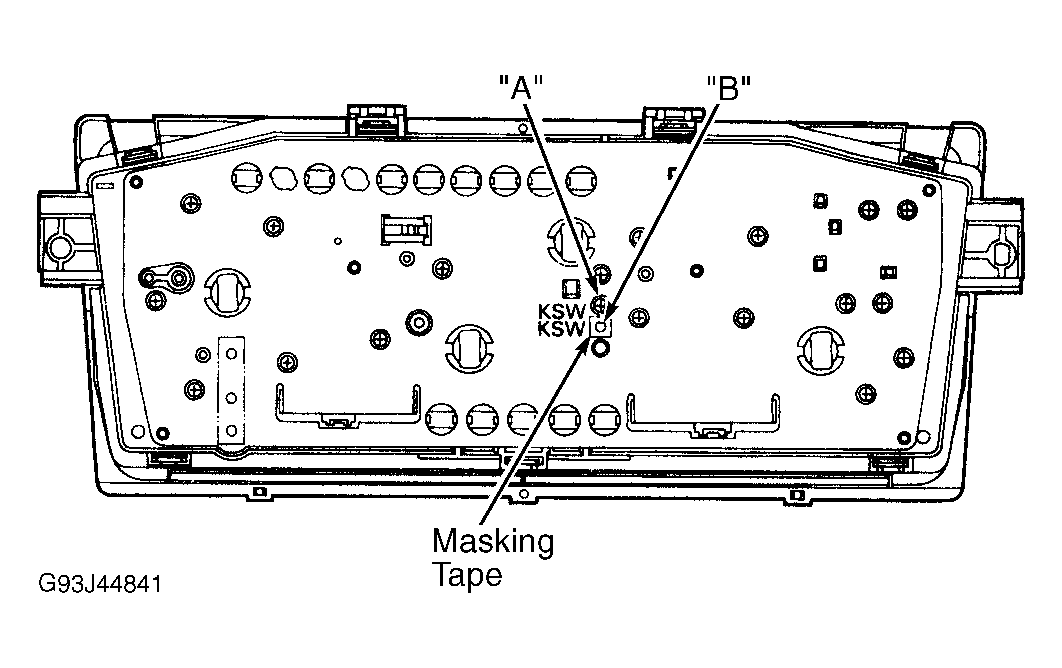

Fig 2: Identifying Oxygen Sensor Warning Light Reset Holes (3.2L)
G93J44841Courtesy of ISUZU MOTOR CO.
