Installation Procedure

  1. Install the rear brake backing plate to the rear axle assembly.
  2. Install the rear wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (Disc Brake) or Rear Wheel Bearing and Hub Replacement (Drum Brake) .

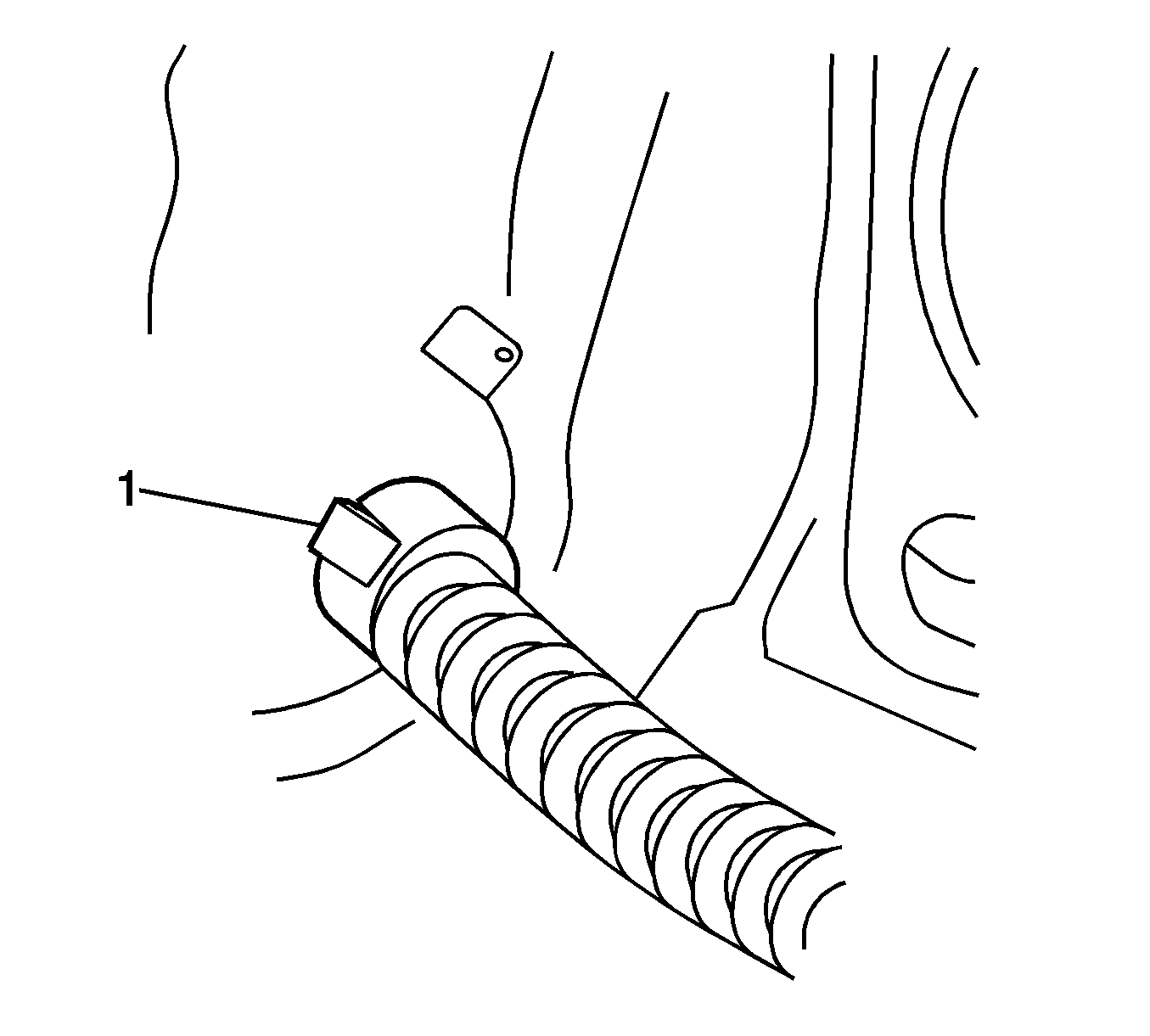

    3. Fig 1: View Of Rear Park Brake Cable End Fitting
    GM890720Courtesy of GENERAL MOTORS CORP.
  3. Install the rear park brake cable end fitting (1) to the drum brake backing plate.
  4. Install the wheel cylinder. Refer to Rear Brake Cylinder Replacement .
  5. Install the brake shoes. Refer to Brake Shoe Replacement .
