Installation Procedure

Clean the drum brake backing plate of any dirt and debris.
Apply a light coat of high temperature brake lubricant to the drum brake backing plate brake shoe contact surfaces.

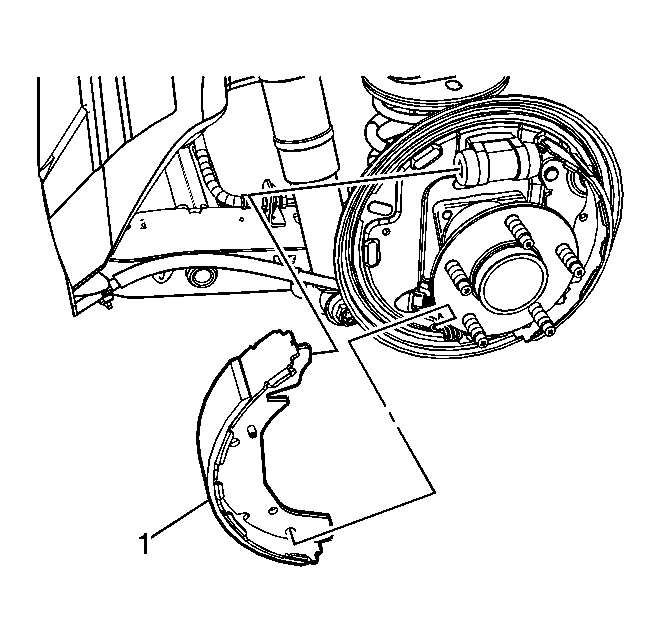

Fig 1: Park Brake Cable Fitting

Courtesy of GENERAL MOTORS CORP.

Compress the park brake cable return spring and install the park brake cable fitting (1) to the park brake apply lever and position the brake shoe (2) to the drum brake backing plate.

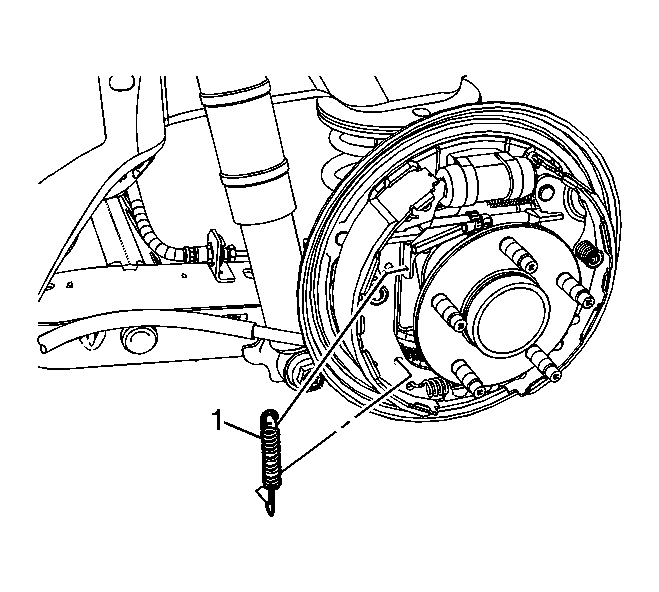

Fig 2: Lower Brake Shoe Return Spring

Courtesy of GENERAL MOTORS CORP.

Fig 3: Primary Brake Shoe

Courtesy of GENERAL MOTORS CORP.

Position the primary brake shoe (1) to the drum brake backing plate and connect the brake shoe to the lower brake shoe return spring.

Fig 4: Upper Brake Shoe Return Spring

Courtesy of GENERAL MOTORS CORP.

Fig 5: Brake Shoe Adjuster

Courtesy of GENERAL MOTORS CORP.

Spread the top of the brake shoes apart slightly and install the brake shoe adjuster (1).

Fig 6: Brake Shoe Hold Down Spring And Cup

Courtesy of GENERAL MOTORS CORP.

Install the 2 hold down spring and cup assembly pins.
Install the brake shoe hold down spring and cup (1) assemblies by compressing the spring and rotating the assembly 1/4 turn.

Fig 7: Brake Adjuster Actuator Lever

Courtesy of GENERAL MOTORS CORP.

Fig 8: Brake Adjuster Actuator Lever Spring

Courtesy of GENERAL MOTORS CORP.
