Drive Belt Replacement - Accessory
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.

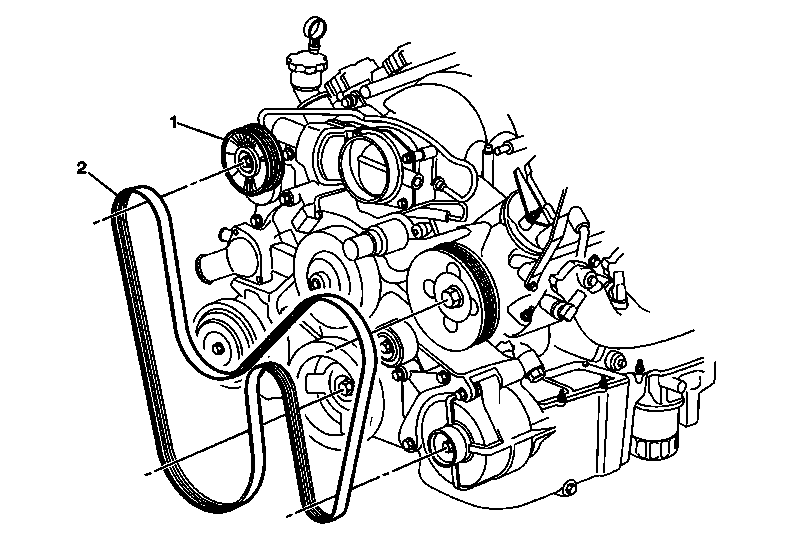

| Callout |
Component Name |
| 1 |
Drive Belt Procedure
- Use the proper tool to rotate the drive belt tensioner.
- Remove the drive belt from the pulleys and tensioner.
|
| 2 |
Drive Belt Tensioner Procedure
- Clean and inspect the drive belt surfaces of all the pulleys.
- Inspect the drive belt for correct alignment.
|
