Evaporative Emission Canister Vent Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

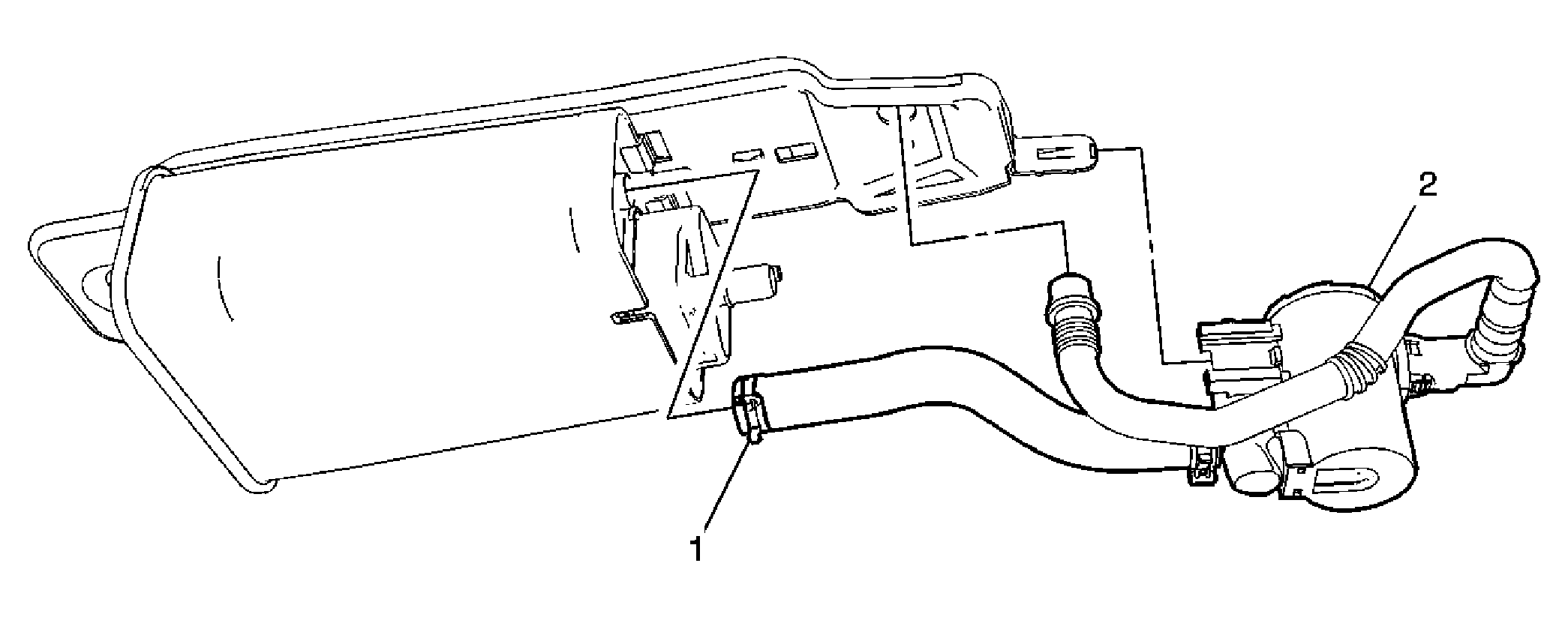

Fig 1: Evaporative Emission Canister Vent Solenoid Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the evaporative emission canister. Refer to Evaporative Emission Canister Replacement .
1	Evaporative Hose Clamp
2	Evaporative Emission Canister Vent Solenoid Valve
