Removal Procedure

WARNING: This page is about a different variant/trim than selected.

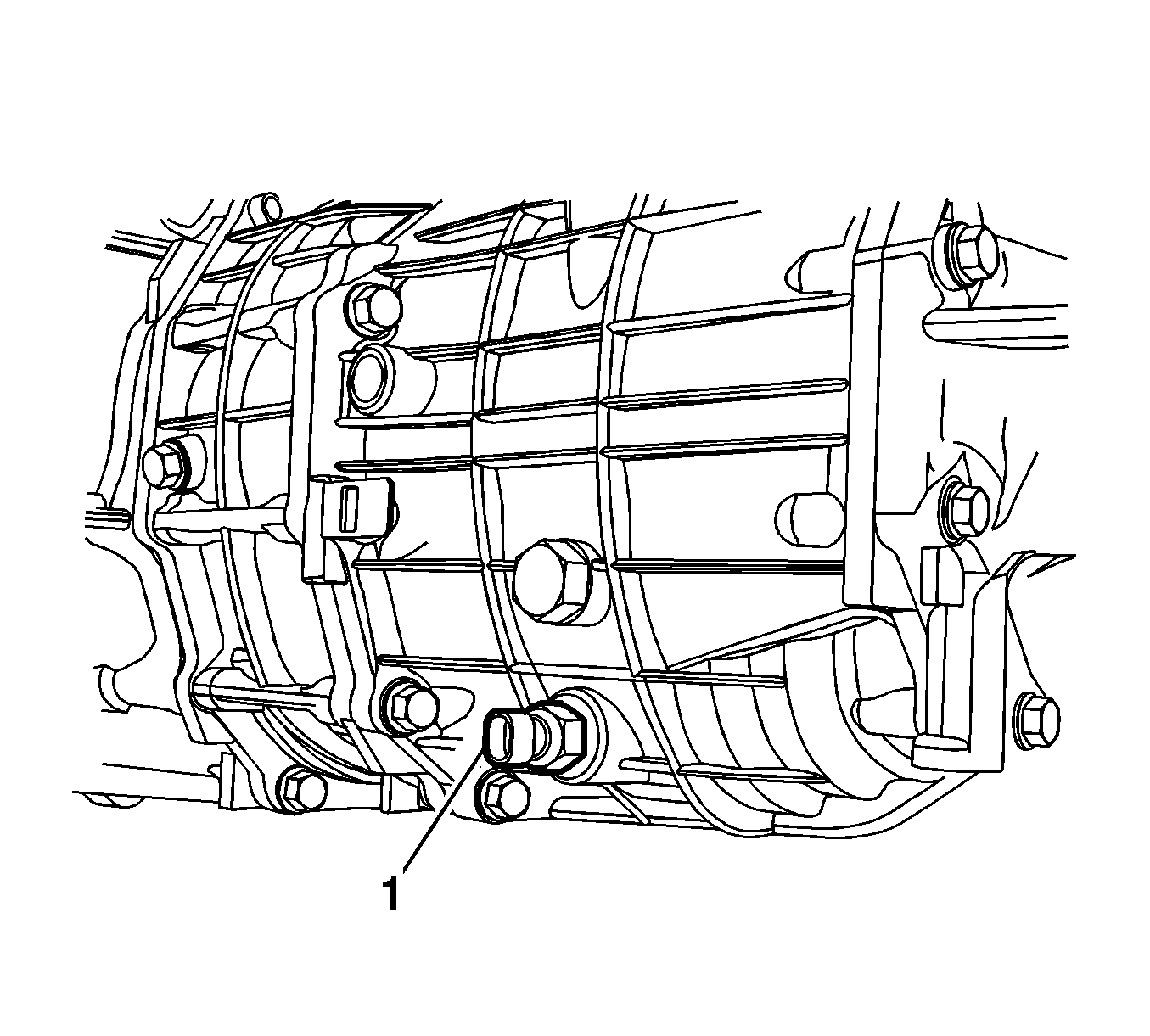

    Fig 1: TFT Sensor
    GM2240813Courtesy of GENERAL MOTORS CORP.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. Disconnect the transmission fluid temperature (TFT) sensor electrical connector.
  3. Clean away all dirt and debris from the TFT sensor.
  4. Place a suitable drain pan under the transmission.
  5. Remove the TFT sensor (1).
